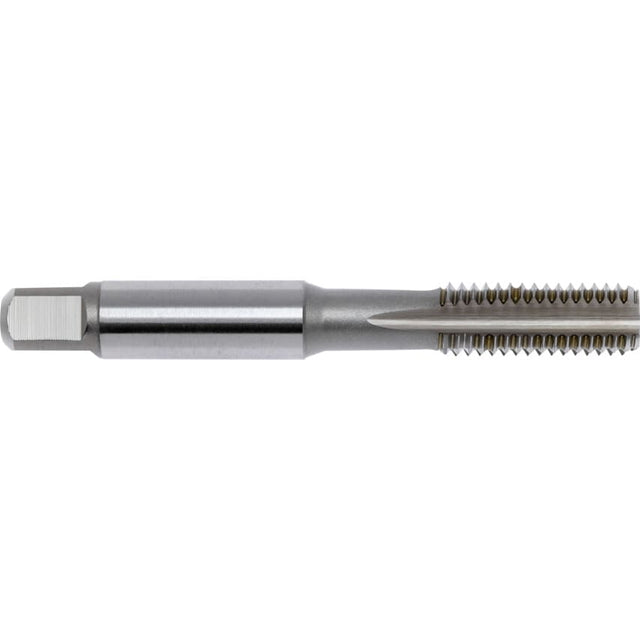

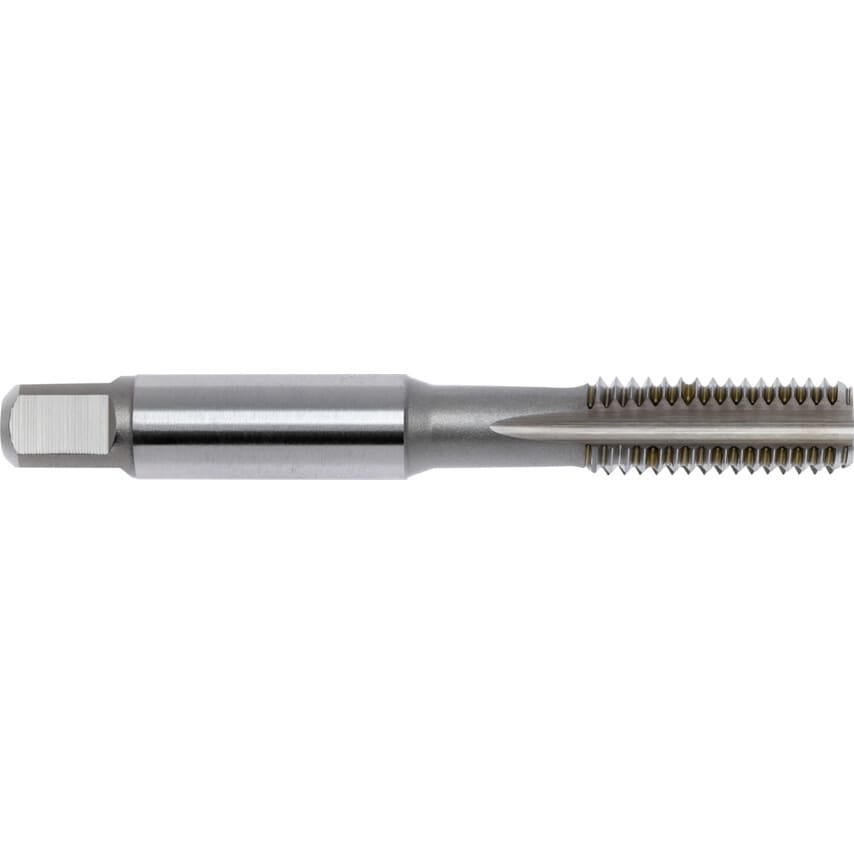

Sherwood HSS Plug Taps are the ideal option for through hole tapping in most materials including steel, some stainless steels, cast irons and non-ferrous materials such as Aluminium, Brass and many others.
Sherwood Tap dimensions conform to ISO529 apart from NPT Forms which conform to ANSI 94.9. Straight Flute and Fluteless Taps are manufactured with a standard Bright Finish.
Features and Benefits
Manufactured from durable high speed steel
Precision ground flutes for accurate thread cutting
Features class 2 thread forms with medium fit tolerance
Manufactured with a bright finish
Ideal for through hole tapping applications
Typical Applications
Through hole tapping
Tapping
Steel
Brass
Aluminium
Engineering
Manufacturing
Standards
Tap dimensions to ISO529
Thread Forms are Class 2 medium fit tolerance
Straight Flute Individual Sizes IS0 529
Notes
Available in sizes 1.0 x 0.25mm - 48 x 5.00mm
(1) Diameter and pitch not mentioned in ISO
| Chamfer | Plug |
| Thread Length | 24mm |
| Class of Fit | 6H |
| Material | HSS |
| Dimensions Standard | ISO 529 |
| Product Type | Plug tap |
| Pitch | 1.5 |
| Shank Diameter | 10mm |
| Number of Flutes | 4 |
| Material Application | Aluminium | Cast Iron | Stainless Steels | Steels |
| Thread Direction | Right Hand |
| Material Grade | M2 |
| Finish/Coating | Bright |
| Tap Type | Straight Flute |
| Square Width | 8mm |
| Thread Standard | Metric Coarse |
| Thread Size | M10 |
| ISO Category | K | M | N | P |
| Overall Length | 80mm |
