Contents:
HSSGT Taper & Second Taps:
M2 x 0.40, M3 x 0.50, M4 x 0.70, M5 x 0.80, M6 x 1.00, M8 x 1.25, M10 x 1.50 & M12 x 1.75. Manufactured to ISO 529.
Bar Type Tap Wrenches: 1/16" - 1/4", 3/16" - 1/2".
Tapping Drills to suit:
1.6, 2.5, 3.3, 4.2, 5.0, 6.8, 8.5 & 10.2mm. Manufactured to BS 328/DIN 338N.
13/16" O/D Split Dies:
M2 x 0.40, M3 x 0.50, M4 x 0.70, M5 x 0.80 & M6 x 1.00.
1" O/D Split Dies:
M8 x 1.25 & M10 x 1.50. Manufactured to BS 1127.
Diestocks: 13/16" O/D & 1" O/D.
HSS Die Nuts: M12 x 1.75 & M16 x 2.00. Manufactured to BS 1127.

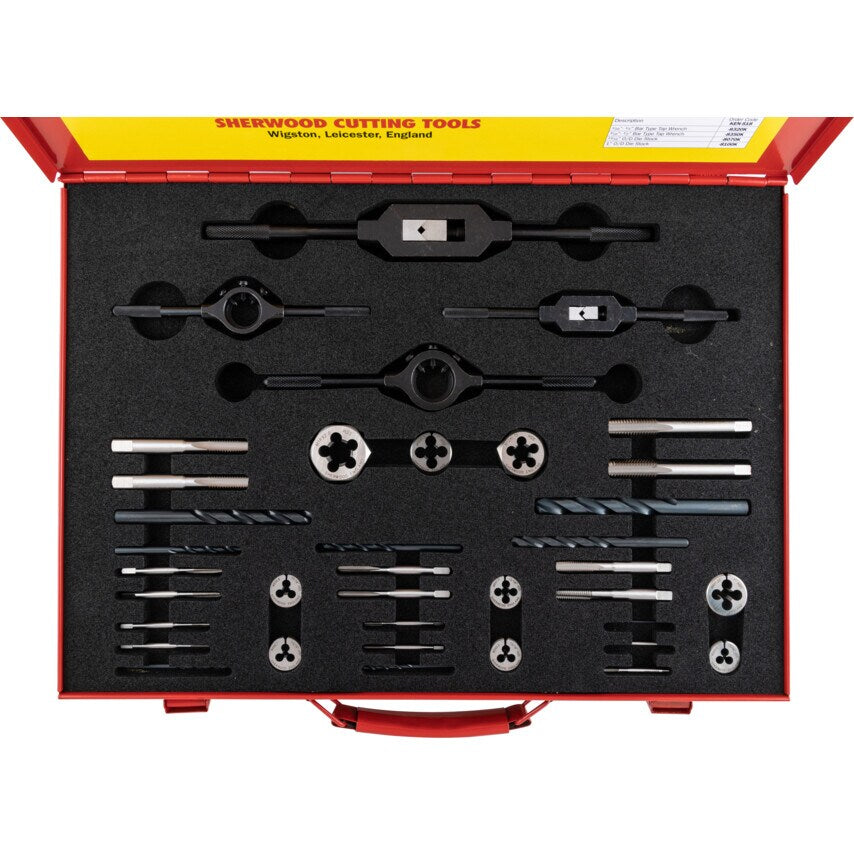

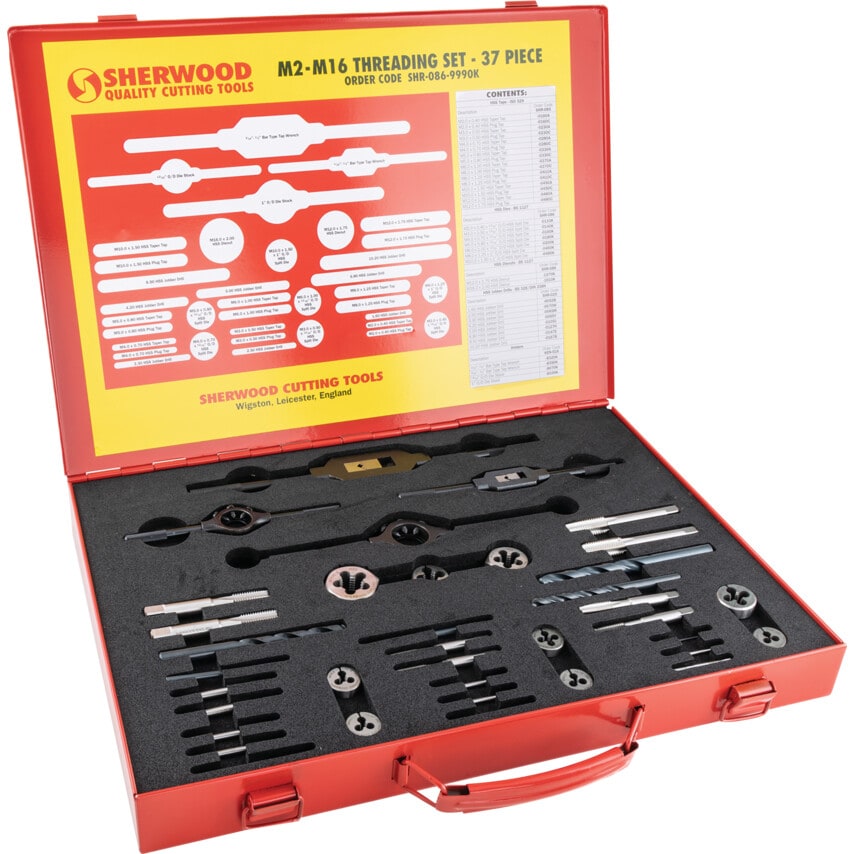

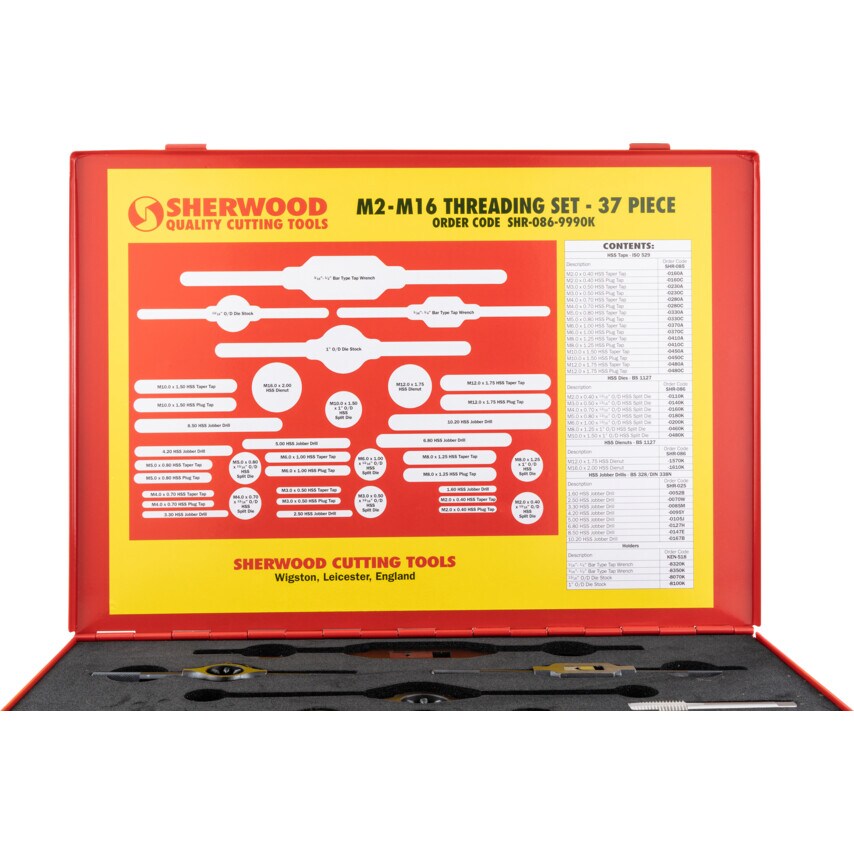

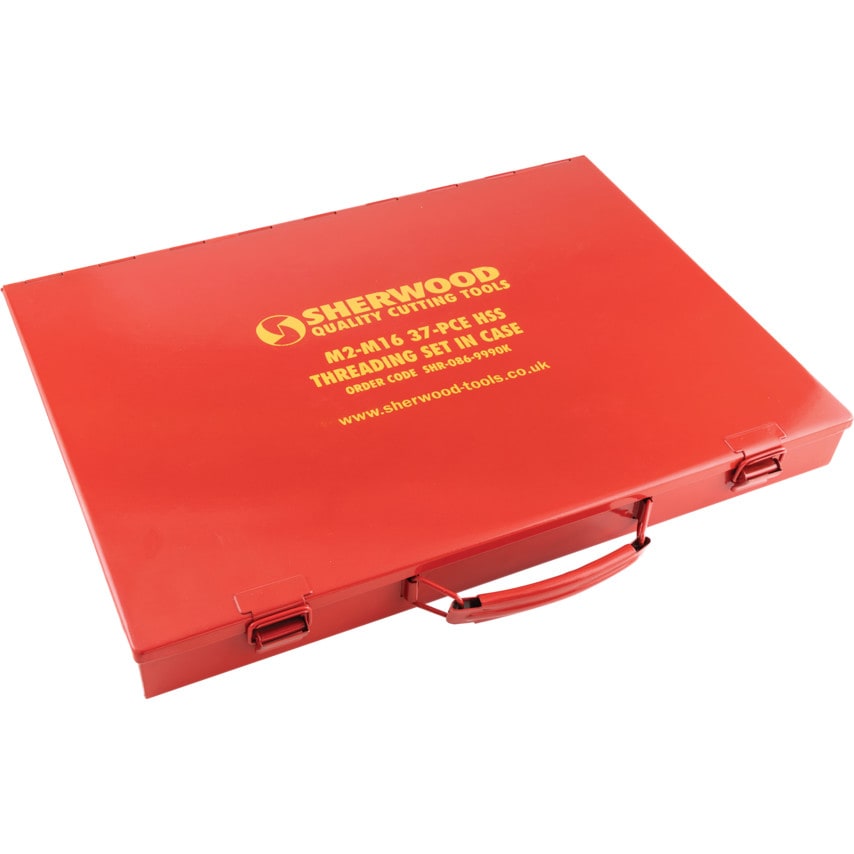

Supplied in a high quality fitted metal bench case with tool control inner.
| Tap Type | Straight Flute |
| Chamfer | Plug | Taper |
| Largest Thread Size | M12 |
| Includes | (2) Bar Type Tap Wrench |
| 3/16in.- 1/2in. | (2) Die Stock | 13/16in. & 1in. | (2) HSS Die Nuts |
| M16-2.00 | (2) HSS Dies 1in. O/D | M8-1.25 |
| M10-1.50 | (5) HSS Dies 13/16in. O/D | M2-0.40 |
| M6-1.00 | (8) HSS Jobber Drills | 1.60mm |
| 10.20mm | (8) Straight Flute Plug Taps | M2-0.40 |
| M12-1.75 | (8) Straight Flute Taper Taps | M2-0.40 |
| Tap Material | High Speed Steel |
| Thread Size Range | M2 - M16 |
| Tap Dimensions Standard | BS 328/DIN 338N | DIN 225 | DIN 1814 |
| Thread Direction | Right Hand |
| Number of Pieces | 37 |
| Thread Standard | Metric |
| Number of Taps | 16 |
| Smallest Thread Size | M2 |
| Tap Wrench Type | Straight-Handle Bar |
| Number of Dies | 9 |
| Die Hex Width | 1.1in | 1.3in |
| Kit Type | Tap |
| Tap Finish/Coating | Uncoated |
| Die Type | Hex Die Nut | Round Die |
