IS0 529

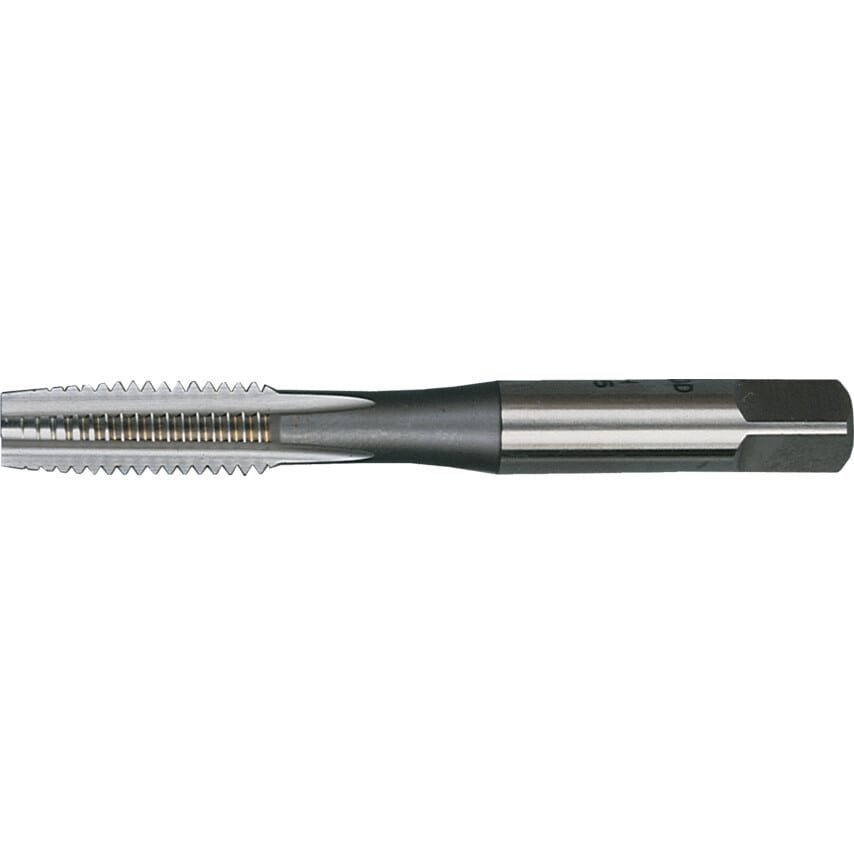

Straight Flute Individual Sizes.
(1) Diameter and pitch not mentioned in ISO.
| Finish/Coating | Bright |
| Number of Flutes | 4 |
| Shank Diameter | 10.0mm |
| Material Grade | M2 |
| Material | HSS |
| Overall Length | 80.0mm |
| Class of Fit | 6H |
| Thread Direction | Right Hand |
| Square Width | 8.0mm |
| Chamfer | Taper |
| Thread Length | 20.0mm |
| Dimensions Standard | ISO 529 |
| Material Application | Cast Iron | Stainless Steels | Steels |
| Thread Standard | Metric Fine |
| Pitch | 1.25 |
| Thread Size | M10 |
| Tap Type | Straight Flute |
