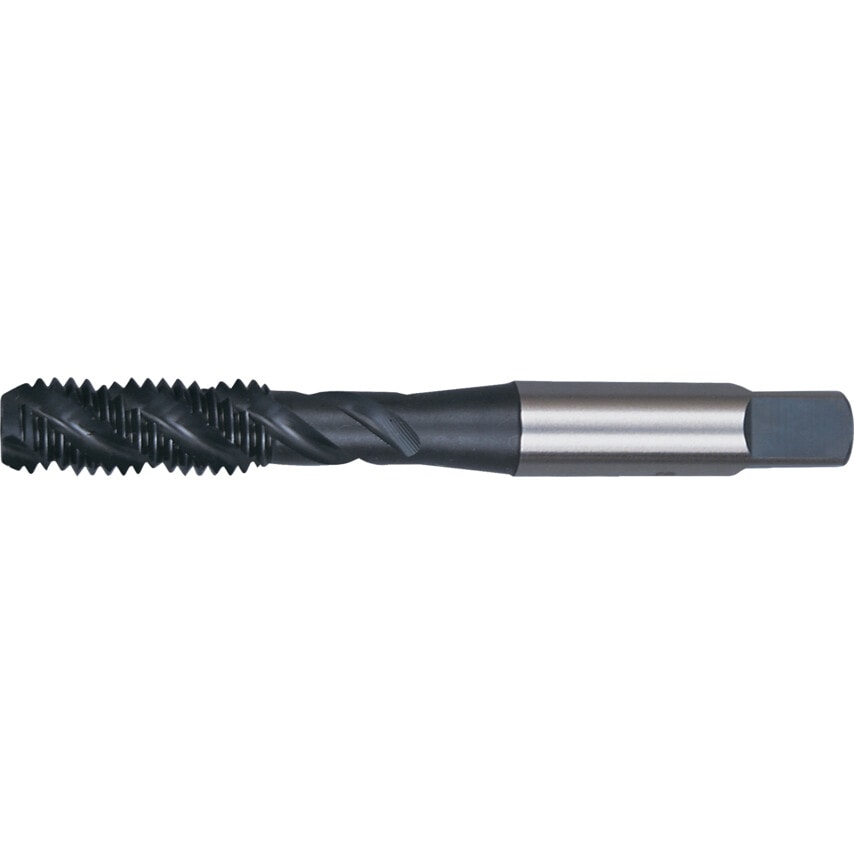

IS0 529 - Spiral Flute.
Sherwood HSS Taps are the general purpose option for thread cutting in most materials including steel, some stainless steels, cast irons and non-ferrous materials such as Aluminium, Brass and many others.
Manufactured with precision ground flutes for producing accurate thread forms, Sherwood Taps are available in all the popular thread forms and as straight Flute `Hand` Taps in 3 leads, Fluteless, Spiral Flute, or Spiral Point Machine Taps and also Long Series.
Sherwood Tap dimensions conform to ISO529 apart from NPT Forms which conform to ANSI 94.9. Straight Flute and Fluteless Taps are manufactured with a standard Bright Finish whereas the Machine Taps have an Oxidised Finish for best results, dissipating the heat build-up associated with these applications.
Thread Forms are Class 2 medium fit tolerance.
| Dimensions Standard | ISO 529 |
| Pitch | 1 |
| Square Width | 6.3mm |
| Number of Flutes | 3 |
| Overall Length | 72.0mm |
| Finish/Coating | Steam Tempered |
| Shank Diameter | 8.0mm |
| Class of Fit | 6H |
| Thread Length | 19.0mm |
| Material Grade | M2 |
| Helix Angle | 45\u00b0 |
| Thread Size | M8 |
| Material Application | Aluminium | Cast Iron | Stainless Steels | Steels |
| Thread Standard | Metric Coarse |
| Thread Direction | Right Hand |
| Tap Type | Spiral Flute |
| Material | HSS |
