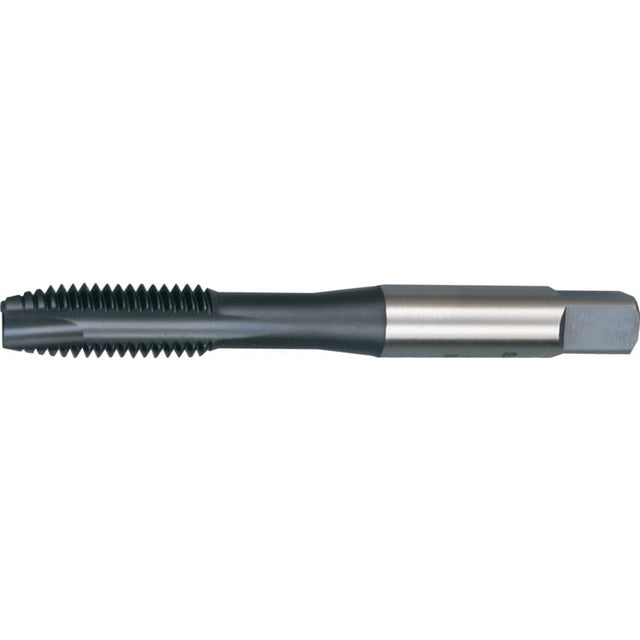

IS0 529 - Spiral point/gun nose are manufactured from HSS with a black oxide coating for added strength durability and a prolonged tool lifespan.
Features and Benefits
HSS construction for added tool strength
Black oxide coating protects angainst wear caused by use and heat
Class 2 thread forms / medium fit tolerance
Precision ground flutes for greater tool accuracy
Typical Applications
Tapping
Standards
Tap dimensions to ISO529
| Pitch | 14 |
| Shank Diameter | 8.0mm |
| Number of Flutes | 3 |
| Thread Size | Jul-16in |
| Thread Direction | Right Hand |
| Thread Length | 25.0mm |
| Class of Fit | 2B |
| Teeth per Inch | 14 |
| Finish/Coating | Steam Tempered |
| Material Grade | M2 |
| Material | HSS |
| Tap Type | Spiral Point |
| Overall Length | 85.0mm |
| Dimensions Standard | ISO 529 |
| Thread Standard | UNC |
| Square Width | 6.30mm |
