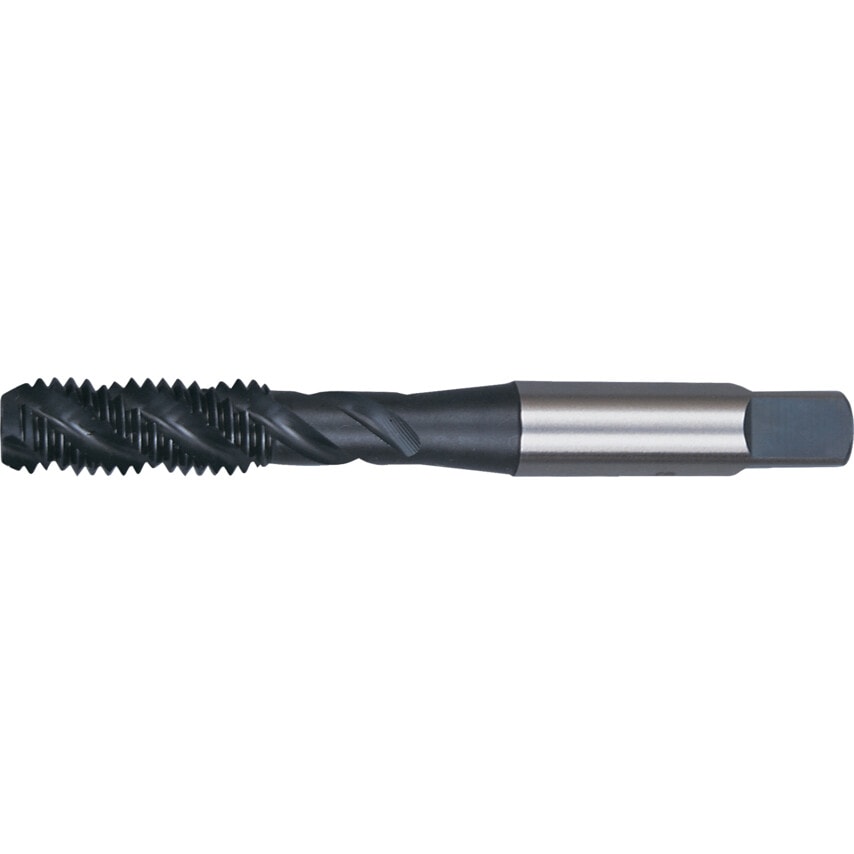

IS0 529 - Spiral Flute
| Class of Fit | 2B |
| Thread Direction | Right Hand |
| Overall Length | 112.0mm |
| Pitch | 10 |
| Number of Flutes | 3 |
| Square Width | 11.2mm |
| Finish/Coating | Steam Tempered |
| Material Grade | M2 |
| Thread Standard | UNC |
| Dimensions Standard | ISO 529 |
| Material | HSS |
| Helix Angle | 45\u00b0 |
| Thread Size | 3/4in |
| Tap Type | Spiral Flute |
| Teeth per Inch | 10 |
| Thread Length | 37.0mm |
| Shank Diameter | 14.0mm |
