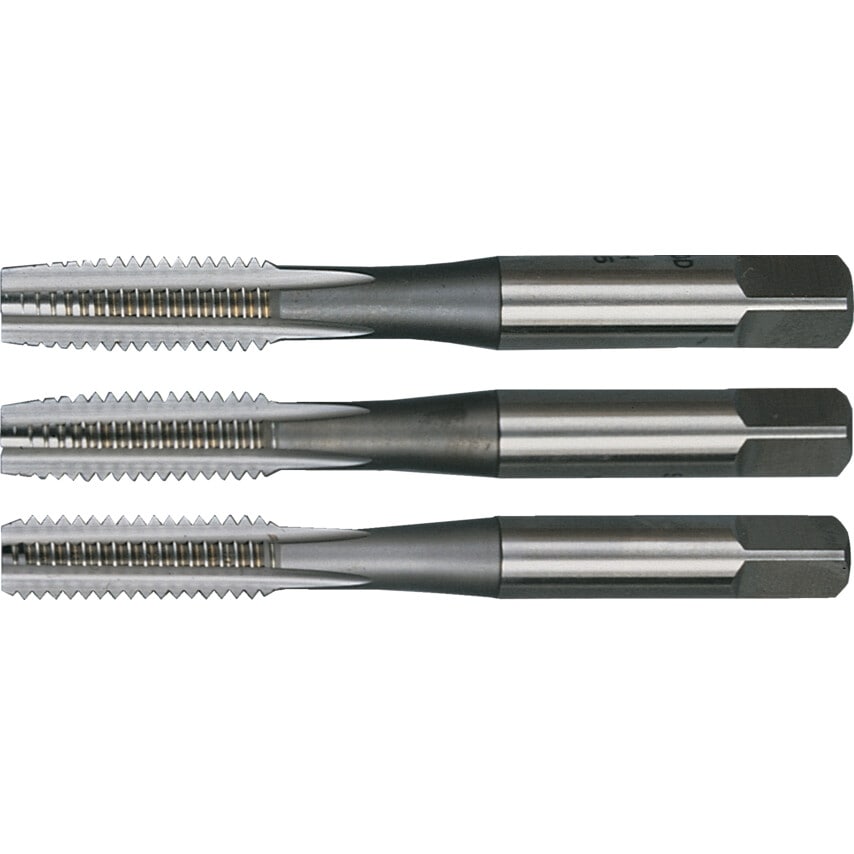

HSS Straight Flute UNF (Unified Fine) Ground Thread Tap Set
Sherwood HSS Taps are the general purpose option for thread cutting in most materials including steel, some stainless steels, cast irons and non-ferrous materials such as Aluminium, Brass and many others.
Set contains 1 of each, taper, second and plug lead.
Manufactured to IS0 529

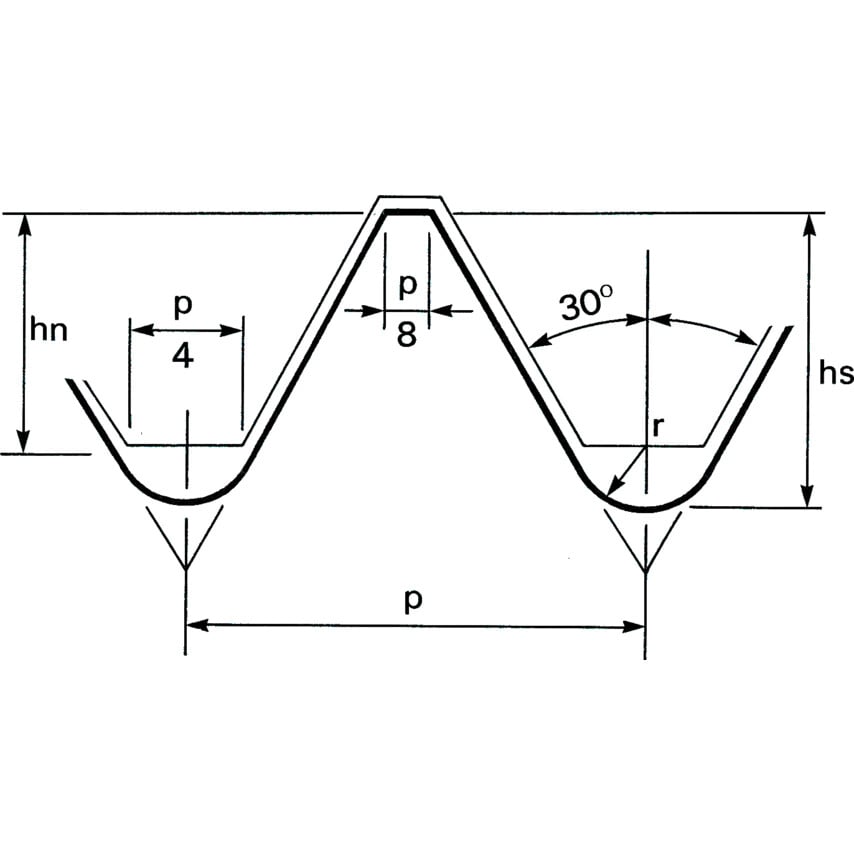

Thread Forms are Class 2 medium fit tolerance
Precision ground flutes
Bright finish
| Square Width | 12.5mm |
| Tap Type | Straight Flute |
| Finish/Coating | Bright |
| Material | HSS |
| ISO Category | K | M | N | P |
| Number of Pieces | 3 |
| Thread Standard | UNF |
| Threading Tap Type | Hand Tap |
| Thread Length | 38mm |
| Shank Diameter | 16mm |
| Thread Size | 7/8in. x 14 |
| Chamfer | Plug | Second | Taper |
| Product Type | Tap Set |
| Overall Length | 118mm |
