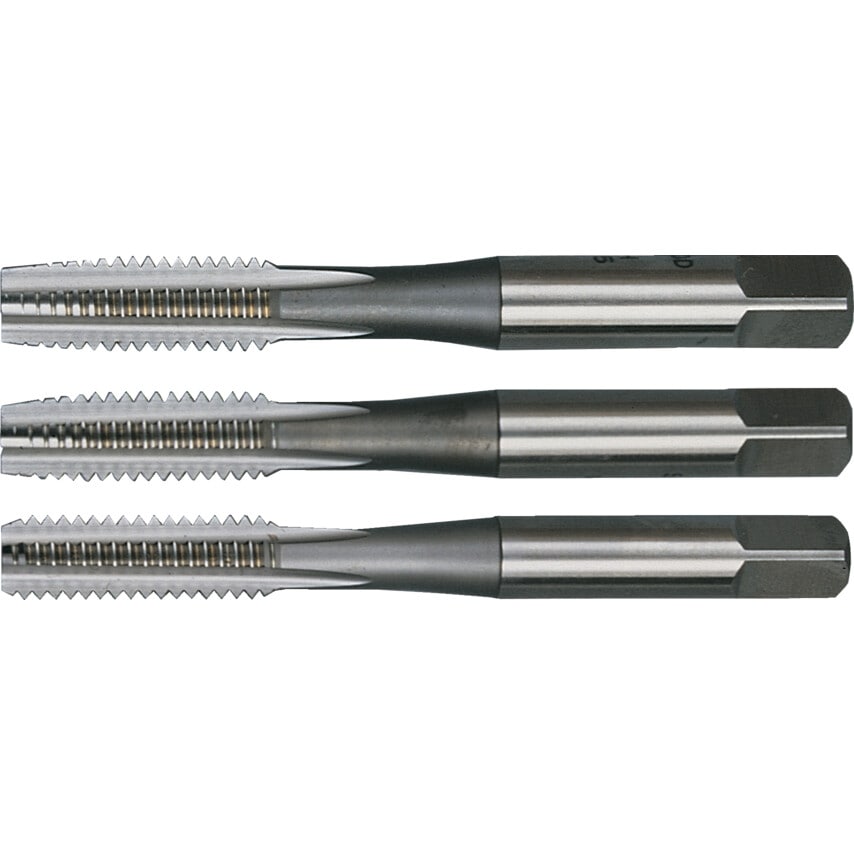

HSS Straight Flute UNF (Unified Fine) Ground Thread Tap Set
Sherwood HSS Taps are the general purpose option for thread cutting in most materials including steel, some stainless steels, cast irons and non-ferrous materials such as Aluminium, Brass and many others.
Set contains 1 of each, taper, second and plug lead.
Manufactured to IS0 529

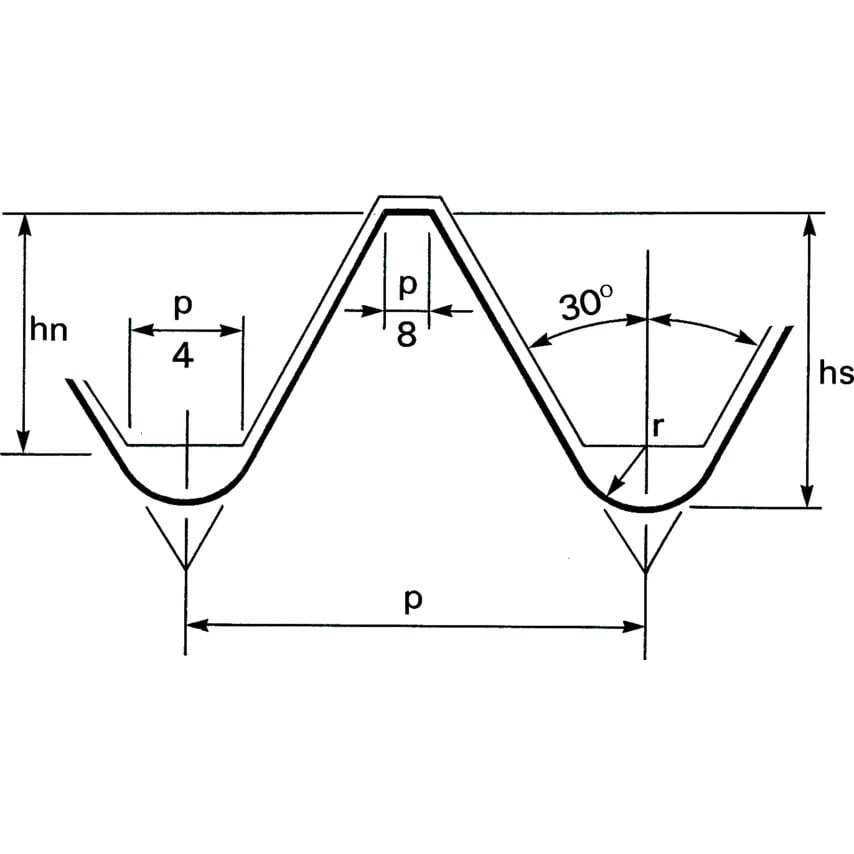

Thread Forms are Class 2 medium fit tolerance
Precision ground flutes
Bright finish
| Tap Type | Straight Flute |
| Square Width | 11.2mm |
| Shank Diameter | 14mm |
| Finish/Coating | Bright |
| Material | HSS |
| Product Type | Tap Set |
| Number of Pieces | 3 |
| ISO Category | K | M | N | P |
| Thread Size | 3/4in. x 16 |
| Thread Length | 37mm |
| Overall Length | 112mm |
| Threading Tap Type | Hand Tap |
| Thread Standard | UNF |
| Chamfer | Plug | Second | Taper |
| MFR Part No. | 3/4\x16 |
