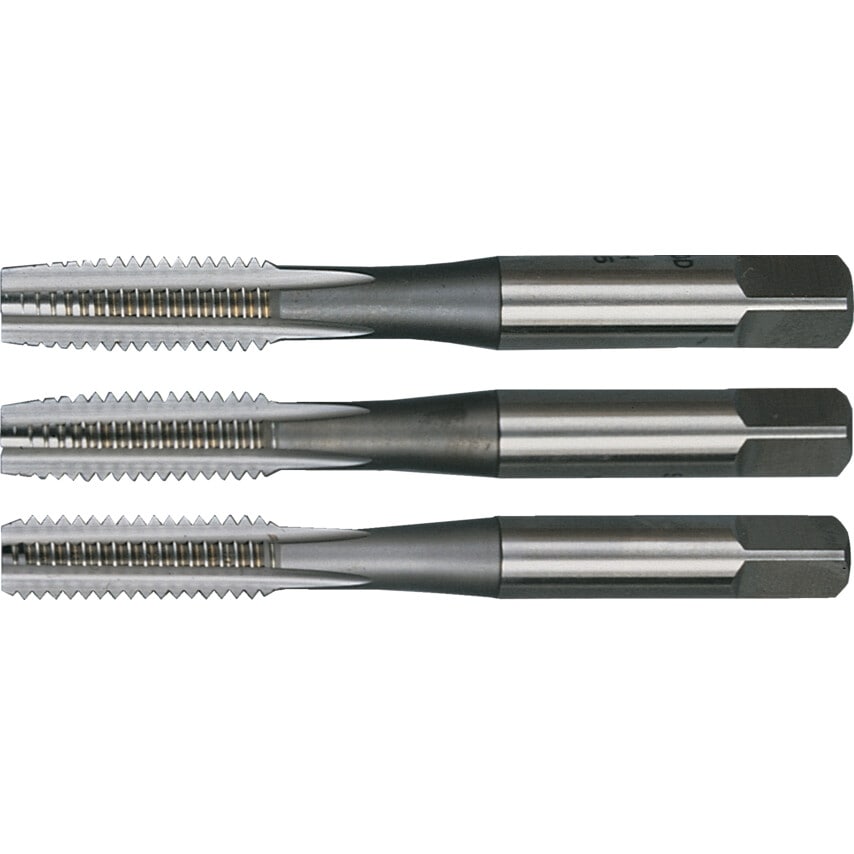

Sherwood HSS Taps are the general purpose option for thread cutting in most materials including steel, some stainless steels, cast irons and non-ferrous materials such as Aluminium, Brass and many others.
Features
HSS construction for increased cutting strength
Precision ground flutes for increased cutting accuracy
Excellent heat and wear resistant properties
Manufactured with a bright finish
Typical Applications
Class 2 thread forms / medium fit tolerance
Contents
1 each, taper, second and plug lead
Standards
Manufactured to ISO 529
| ISO Category | K | M | N | P |
| Thread Size | M16.0 x 1.50 |
| Thread Length | 32mm |
| Thread Standard | Metric Fine |
| Material | HSS |
| Chamfer | Plug | Second | Taper |
| Square Width | 10mm |
| Shank Diameter | 12.5mm |
| Threading Tap Type | Hand Tap |
| Number of Pieces | 3 |
| Overall Length | 102mm |
| Finish/Coating | Bright |
| Tap Type | Straight Flute |
