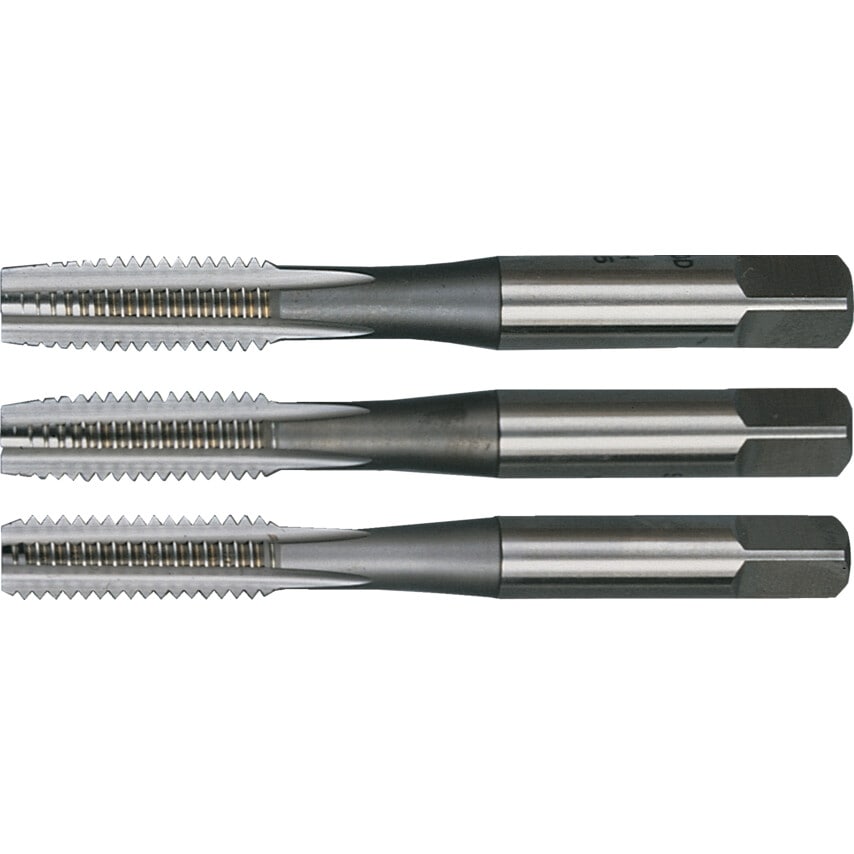

Sherwood HSS Taps are the general purpose option for thread cutting in most materials including steel, some stainless steels, cast irons and non-ferrous materials such as Aluminium, Brass and many others.
Manufactured with precision ground flutes for producing accurate class 2 thread forms, with a medium fit tolerance. Sherwood Tap dimensions conform to ISO529
Features and Benefits
High speed steel construction for increased tool durability
Class 2 thread forms / medium fit tolerance
Precision ground flutes for increased cutting accuracy
Bright finish with excellent wear resistance for prolonged tool life
Supplied in a pack of 3 for a cost effective tooling solution
Contents
Taper, second and plug lead
Standards
Tap dimensions to ISO529
| Threading Tap Type | Hand Tap |
| Material | HSS |
| Chamfer | Plug | Second | Taper |
| Thread Standard | BSPF |
| ISO Category | K | M | N | P |
| Tap Type | Straight Flute |
| Square Width | 10mm |
| Finish/Coating | Bright |
| Thread Length | 21mm |
| Overall Length | 21mm |
| Shank Diameter | 12.5mm |
| Number of Pieces | 3 |
| Thread Size | 3/8in. x 19 |
