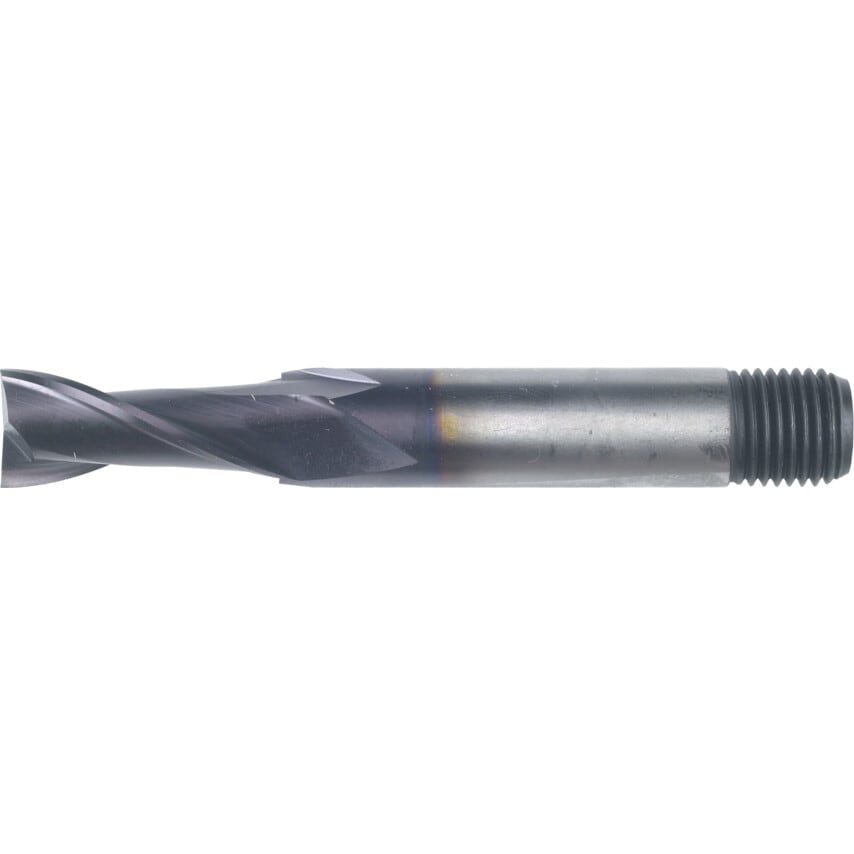

Series 29 - Regular Series, TiCN Coated
Dimensions to DIN 844. Centre cutting. Threaded shank to DIN 1835B. Cutting diameter to e8. Shank diameter to h6.
Uncoated (for general production machining)
TiCN Coated (extends cutter life and improves work material surface finish) and TiALN Coated (dissipates and resists heat, reduces surface friction coupled with high surface hardness).
| Material | Cobalt High Speed Steel |
| Cutting Direction | Right Hand |
| Plunge Type | Centre Cutting |
| Flute Length | 32.0mm |
| Standards Met | DIN 844 | DIN 1835D |
| Shank Diameter | 16.0mm |
| Milling Cutter Type | Slot Drill |
| Cutter Diameter Tolerance | e8 |
| Finish/Coating | TiCN |
| Cutter Diameter | 16.0mm |
| Coolant Delivery | External |
| End Mill Type | Slot Drill |
| Product Type | Slot Drills |
| System of Measurement | Metric |
| Flute Type | Helical |
| Overall Length | 92.0mm |
| Length Type | Regular |
| Series | 29 |
| Number of Flutes | 2 |
| Cutter Style | Square End |
| Shank Type | Threaded |
| Material Grade | M42 |
| Shank Diameter Tolerance | H6 |
