£99.00

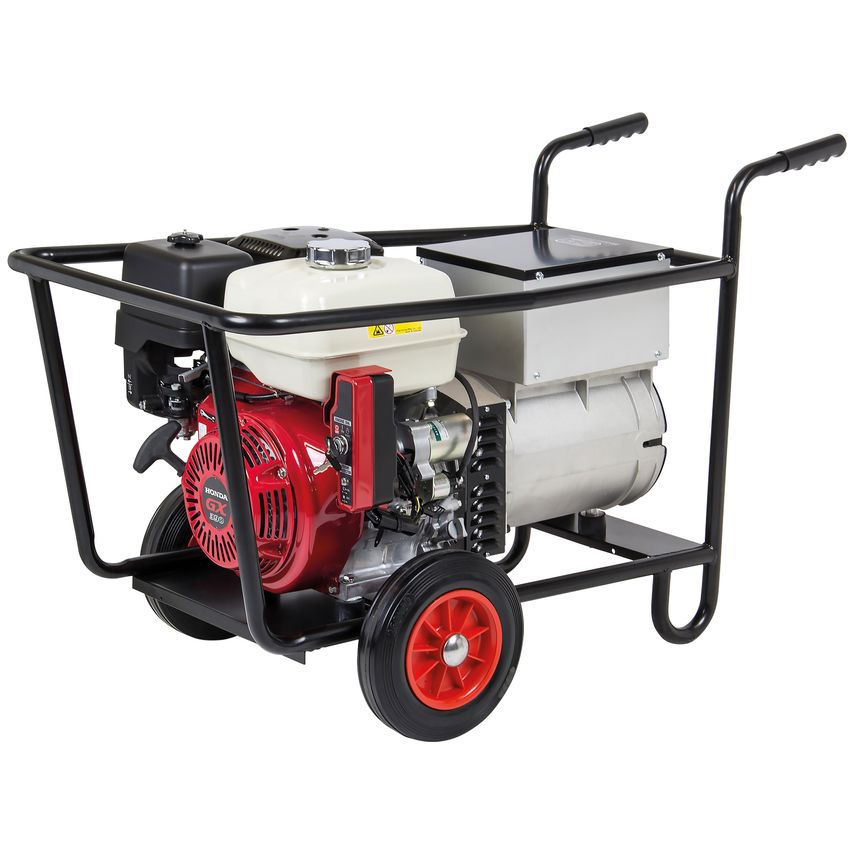

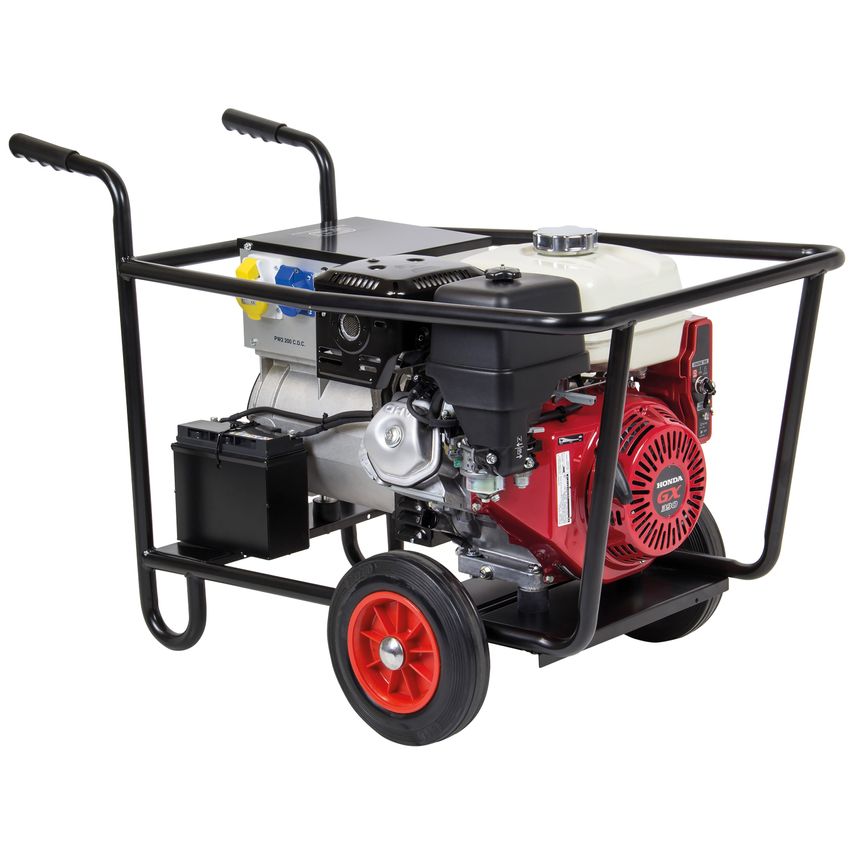

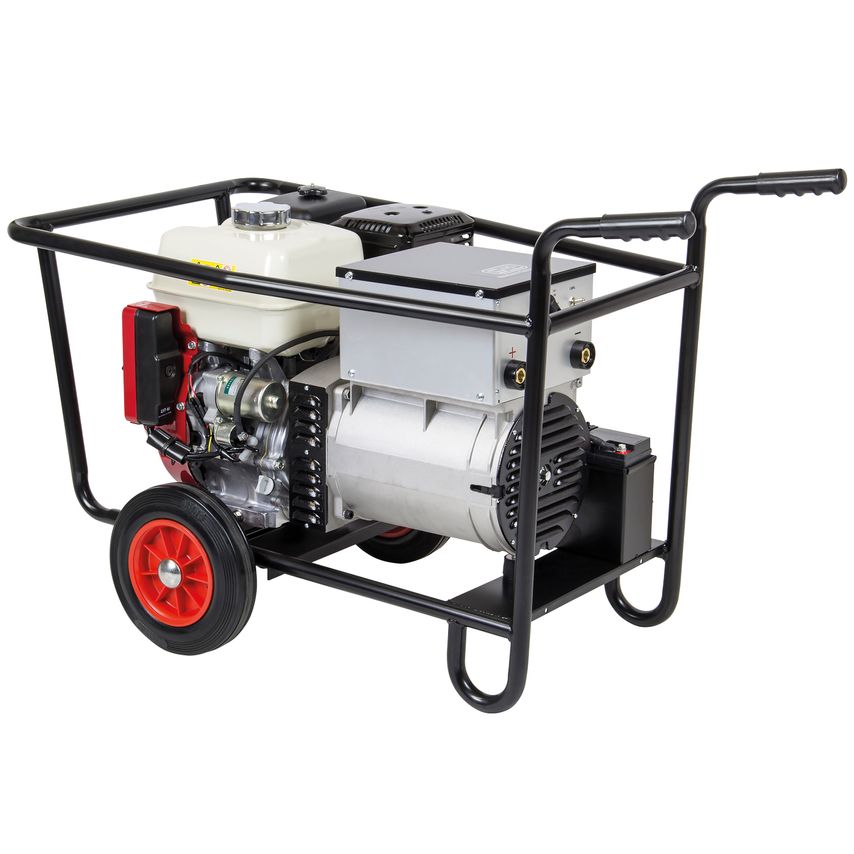

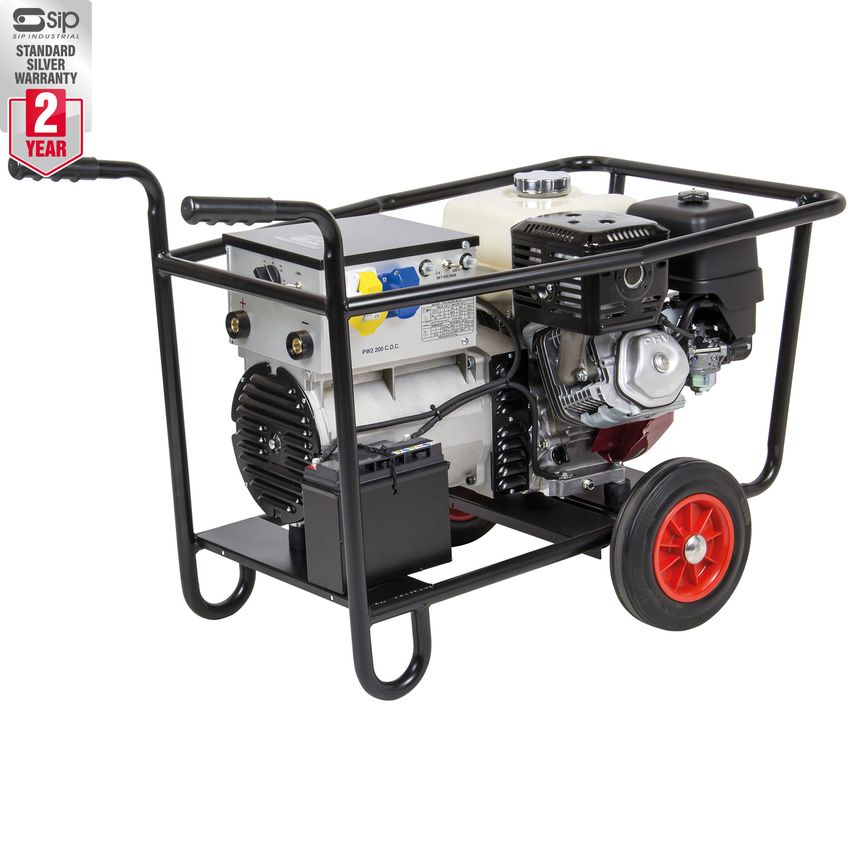

The P200W range of petrol welding generators are designed to provide mobile welding solutions for various tasks, plus feature auxiliary power outlets for use as a standalone generator.
Honda GX390 OHV petrol.
7.0KVA rated generator output.
7.3 litres (2.4hrs) fuel tank capacity.
1.6mm - 5.0mm max. electrode size.
1.5mm - 8.0mm weld thickness (mild steel).
60amps - 200amps welding power (AC only).
Turbo fan-cooled, thermal overload protection.
Inclined cylinder, counterbalance shaft.
Hot-spark electronic ignition.
Splash-fed oil lubrication.
Built by SIP in the UK
3 year engine warranty
Honda engines are famed for their hot-spark electronic ignition, inclined cylinders and counterbalance shafts, great fuel economy, and low oil consumption. Built by SIP in the UK.
| Welding Thickness | 1.5 - 8mm |
| Output Current | 50A - 200A DC |
| Protection | IP21 |
| Output Supply | 230 / 115V |
| Fuel Tank Capacity | 7.3L |
| Approx. Runtime | 2.45hours |
| Insulation | Class H |
| Generator Supply | 230 / 115V |
| Protection Level | IP21 |
| Duty Cycle | 170A @ 60% |
| Engine Type | HONDA GX390 |
| MFR Part No. | 25172 |
| Full Load Run Time | 2.45hours |
| Generator Output | 4kV\u00b7A |
| Insulation Class | Class H |
| Maximum Output Power | 4.0kV\u00b7A |
| Open Circuit Voltage | 75V |
| Electrode Diameter | \u00d8 1.6mm - 5mm |
| Electric Starting | Yes |
