Features & Benefits:
Problem-free threading of blind and through holes in specific materials.
Manufactured from a special powder metallurgy tool steel for unbeatable toughness, edge strength and wear resistance.
Significant reduction in axial forces increases thread accuracy, whilst significant torque reduction reduces machine wear and decreases risk of chipping or breakage.
Yellow, Red and Blue Shark spiral flute taps feature special edge treatment to increase strength and minimise risk of micro-chipping on the cutting edges, considerably improving performance and tool life.

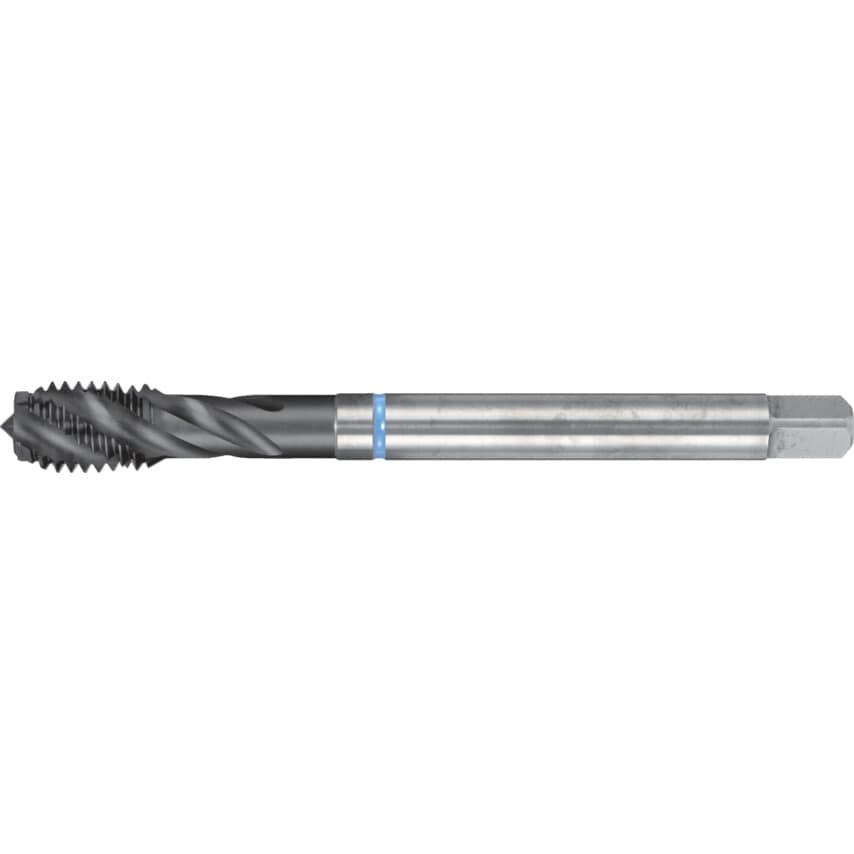

Blue Shark for Stainless Steels
Up to 10.00mm - DIN 371
Over 12.00mm - DIN 376
| Number of Flutes | 3 |
| Overall Length | 70.0mm |
| Thread Length | 8.0mm |
| Series | E239 |
| Class of Fit | 6H |
| Ring Colour | Blue |
| Finish/Coating | Super B |
| Shank Diameter | 6.0mm |
| Square Width | 4.9mm |
| Dimensions Standard | DIN 371 |
| Thread Standard | Metric Coarse |
| Pitch | 0.80 |
| Product Type | Spiral Flute Taps |
| Thread Size | M5 |
| Lead | C 2-3 |
| Material | Powdered Metal Cobalt High Speed Steel |
| Thread Direction | Right Hand |
| Material Grade | M35 |
| MFR Part No. | E239M5 |
| Tap Type | Spiral Flute |
| Tapping Depth | 25.0mm |
