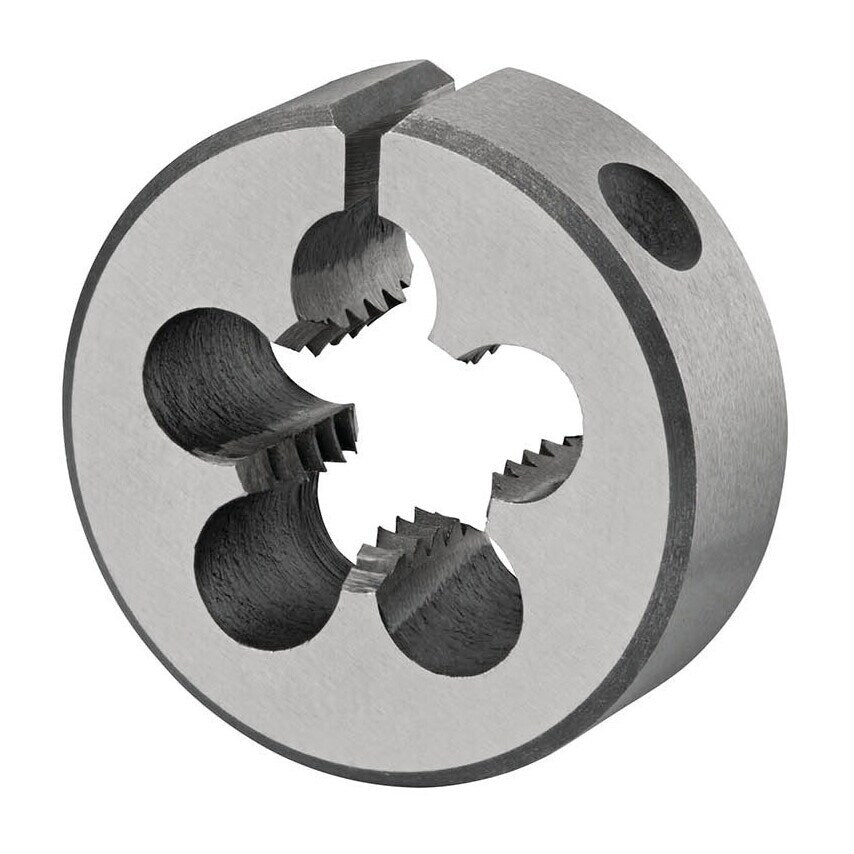

Dormer circular split dies can be used by hand or machine. Because the die has a split it can be adjusted slightly to provide a thread slightly smaller or larger than the norm.
Metric Coarse Adjustable Dies.
Application: For Production of components less than three times diameter in length.
Tolerance: 6g Adjustable.
Chamfer Lead: Two Threads.
Surface treatment: Bright.
Material: HSS - High Speed Steel.
BS1127:1950.
| Thread Size | M5 |
| Thread Direction | Right Hand |
| Finish/Coating | Bright |
| Pitch | 0.8mm |
| Material | HSS |
| Series | F300 |
| MFR Part No. | F300M5X13/16 |
| Outside Diameter | 13/16in |
| Dimensions Standard | BS 1127 |
| Thickness | 1/4in |
| Thread Standard | Metric Coarse |
