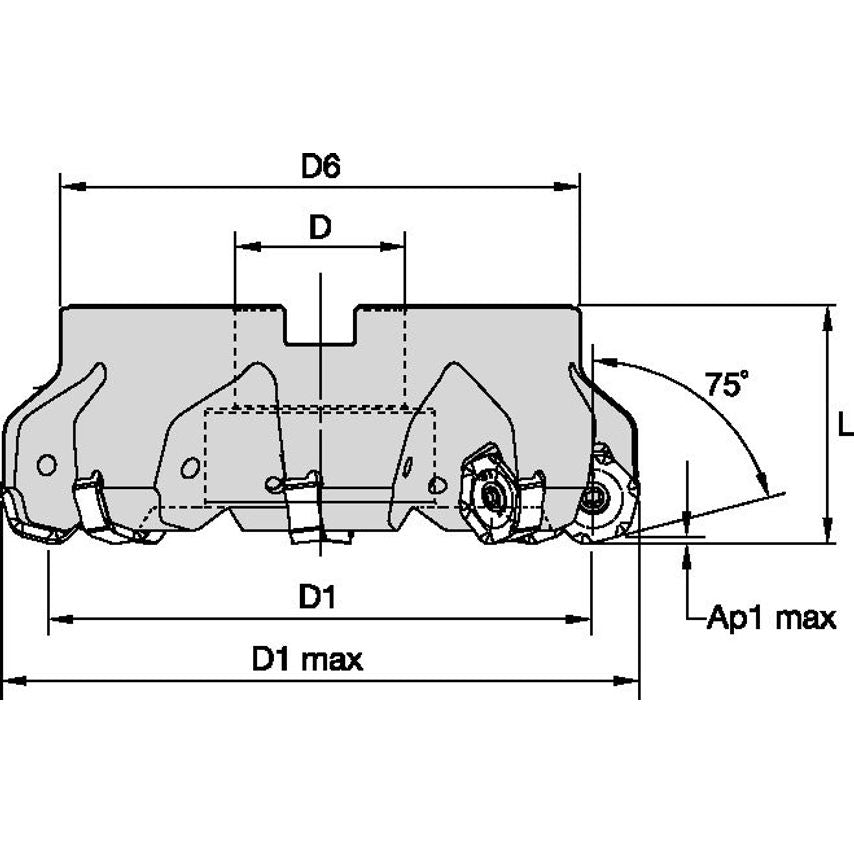

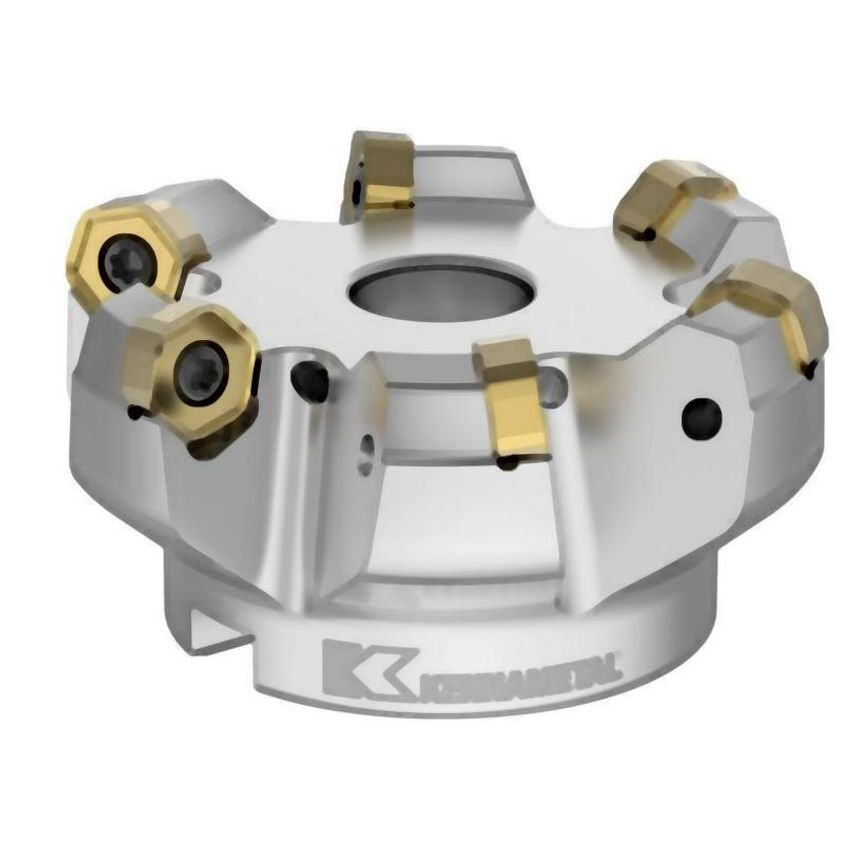

Shell MillsDodeka High-Feed (HF) 75
| MFR Part No. | 4047420 |
| Clamp Type | Screw Clamping |
| Body Diameter Max | 79.8mm |
| Insert Shape | H-Hexagon 120 |
| Hand Preference | Right |
| Center Cutting Tool | No Center Cutting |
| Body Material | Steel |
| Number of Inserts | 5 |
| Maximum Cutting Diameter | 82.441mm |
| Number of Flutes | 5 |
| Milling Application | Face Mill |
| Max. Depth of Cut | 2.2100mm |
| Adapter Type Machine Side | Shell Mill |
| Unit Measured | Imperial |
| Coolant Supplied | Yes |
| Hub Diameter | 54.45mm | 54.4500mm |
