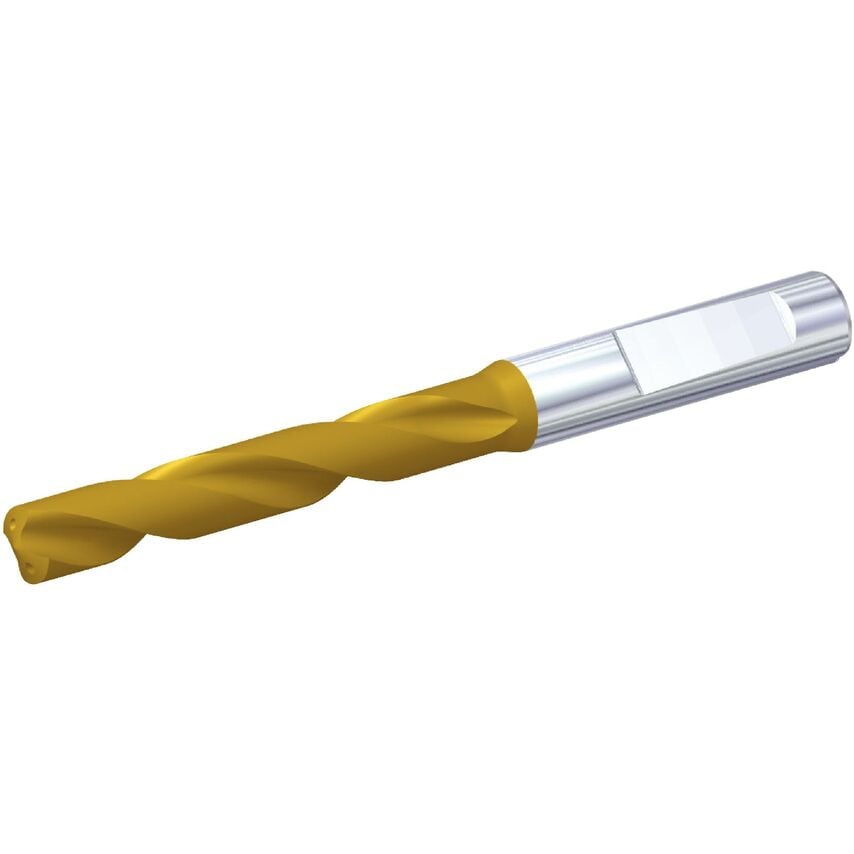

GOdrill Wide Range of Materials Through CoolantSolid Carbide Drills
| Unit Measured | Metric |
| Drill Point | 3.04mm |
| Flute Construction | Helical Flute |
| Drill Depth | 71mm | 71.0000mm |
| Helix Type | Right Hand Helix/Flute |
| Drill Diameter | 17.5000mm |
| Shank Length | 48.0000mm |
| MFR Part No. | 4149567 |
| Hand Preference | Right |
| Number of Flutes | 2 |
| Clamping Length | 48mm |
| Coolant Supplied | Yes |
| Overall Length | 143mm | 143.0000mm |
| Flute Length | 93mm | 93.0000mm |
| Adapter Style | Whistle Notch 2 CylindricalEnd |
| Coolant Diameter | 2.2400mm (0.0220in) |
| Adapter / Shank / Bore Diameter | 18.0000mm |
| Functional Length | 139.9600mm |
| Helix Angle | 28.801 |
| Assembly Length | 89.96mm |
| Finish/Coating | TiN |
| Adapter Type | Cylindrical |
| Primary Material | Stainless Steel |
| Drill Diameter Tolerance | -0.018000 to 0.000000mm |
| Material | Carbide |
