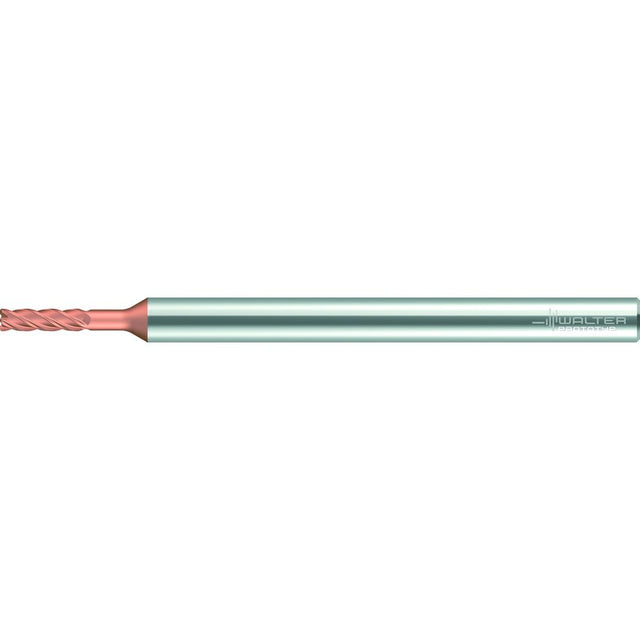

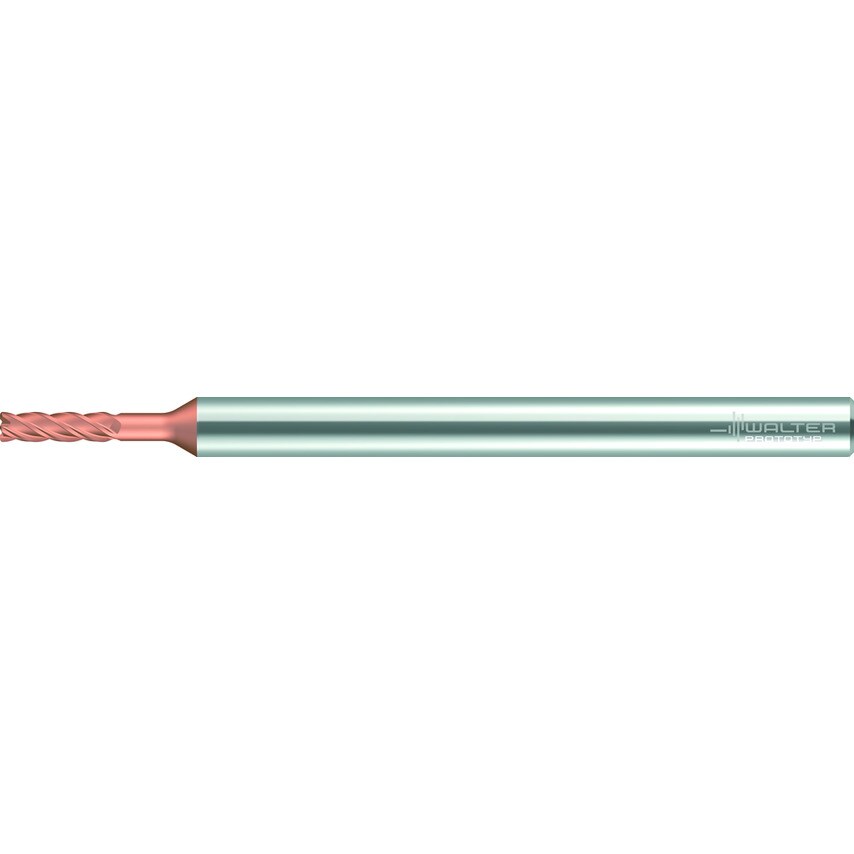

Solid carbide shoulder/slot mills Perform DIN 6535 HA shank metric flute helix angle 35 Long reach center cutting capability WJ30ED Dc=0.0787in R=0.0079in Z=4
| Tool Designation | MC232-02.0A4B020C-WJ30ED |
| Cutting Edge Length | 7mm |
| Number of Teeth | 4 |
| Neck Diameter | 1.9mm |
| Length of Cut | 11.3mm |
| Overall Length | 57mm |
| Shank Diameter | 4mm |
| Corner Radius | 0.2mm |
| Functional Length | 29mm |
| MFR Part No. | 7568696 |
| Cutting Edge Diameter | 2mm |
