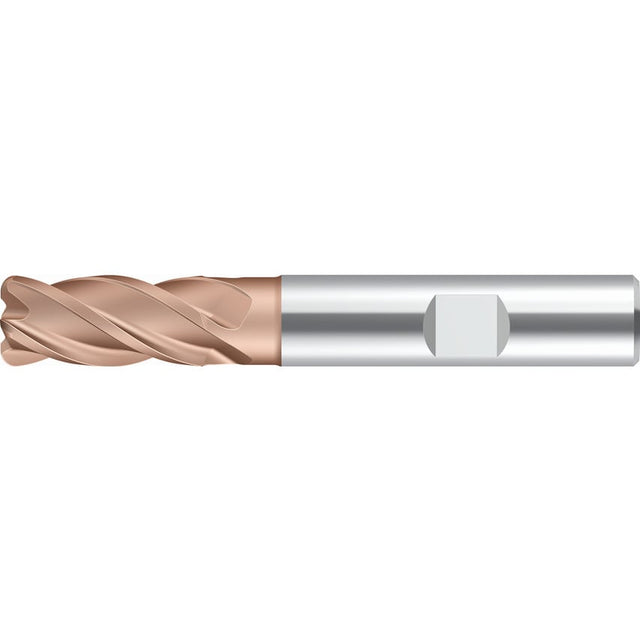

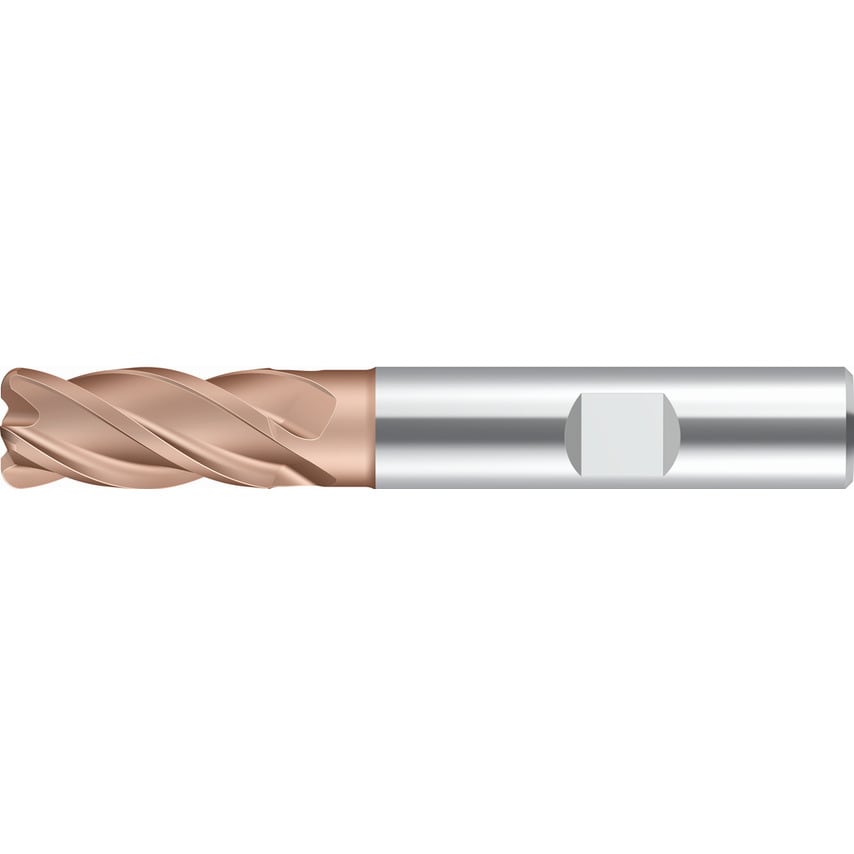

Solid carbide shoulder/slot mills Perform DIN 6535 HB shank metric flute helix angle 35 Long reach center cutting capability WJ30ED Dc=0.315in R=0.0394in Z=4
| Tool Designation | MC232-08.0W4B100C-WJ30ED |
| Shank Diameter | 8mm |
| Number of Teeth | 4 |
| Cutting Edge Length | 19mm |
| Neck Diameter | 7.6mm |
| Length of Cut | 25mm |
| Cutting Edge Diameter | 8mm |
| Corner Radius | 1mm |
| Overall Length | 63mm |
| MFR Part No. | 7568715 |
| Functional Length | 27mm |
