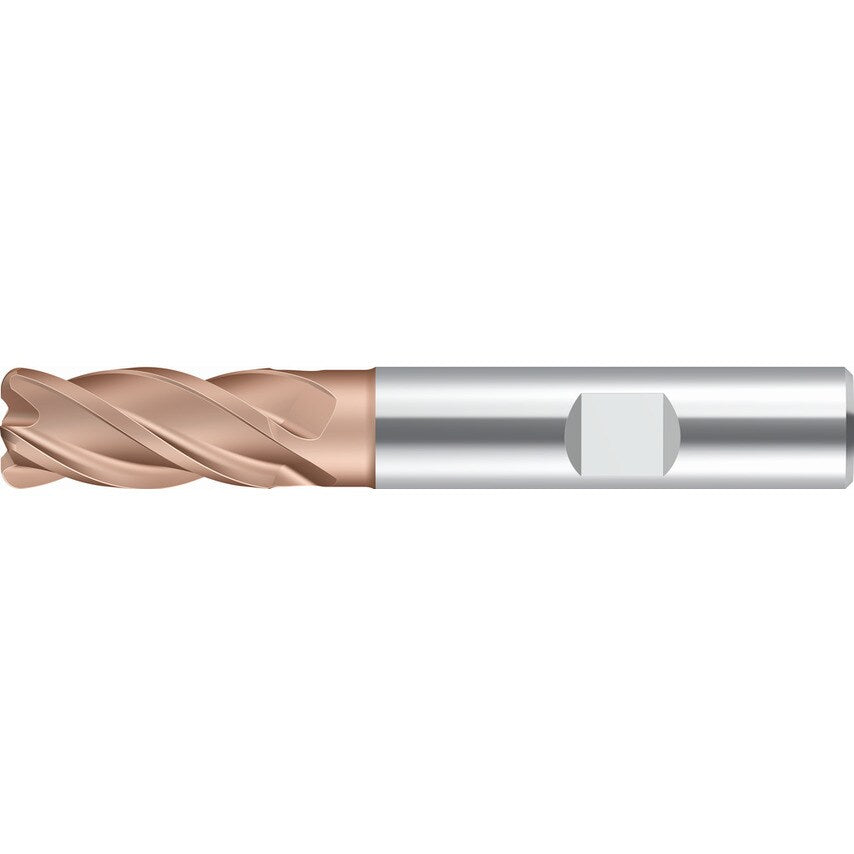

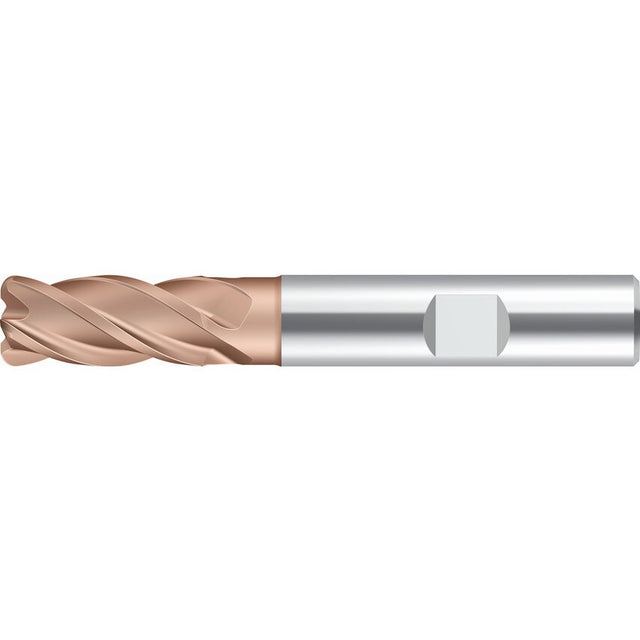

Solid carbide shoulder/slot mills Perform DIN 6535 HB shank metric flute helix angle 35 Long reach center cutting capability WJ30ED Dc=0.7874in R=0.1181in Z=4
| MFR Part No. | 7568740 |
| Neck Diameter | 19mm |
| Shank Diameter | 20mm |
| Corner Radius | 3mm |
| Length of Cut | 52mm |
| Functional Length | 54mm |
| Cutting Edge Diameter | 20mm |
| Overall Length | 104mm |
| Number of Teeth | 4 |
| Cutting Edge Length | 38mm |
| Tool Designation | MC232-20.0W4B300C-WJ30ED |
