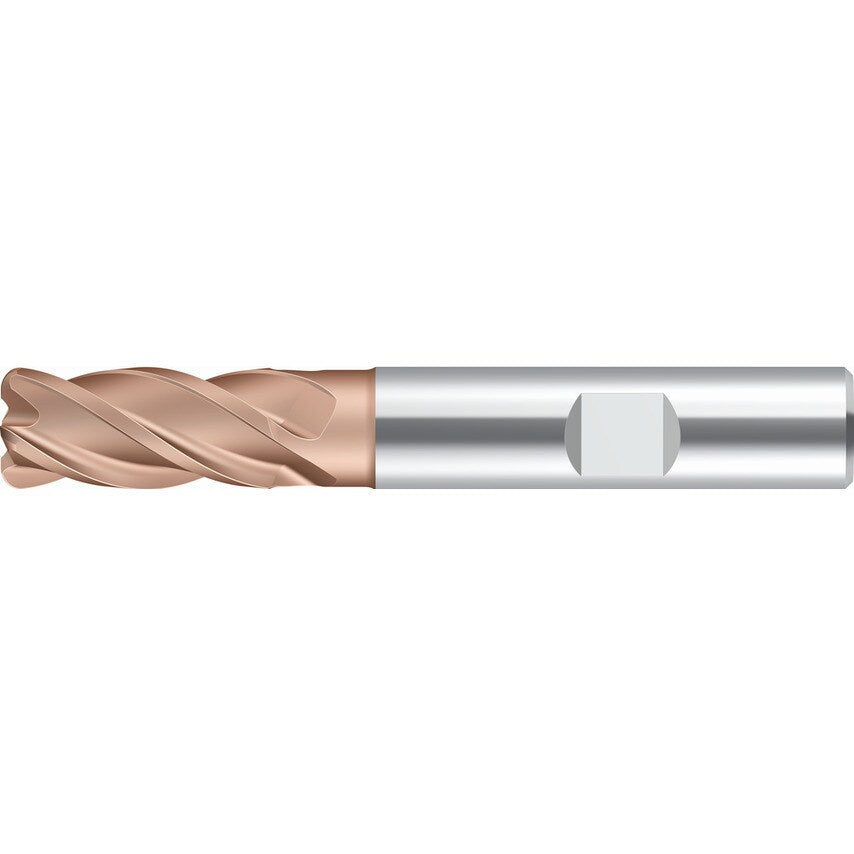

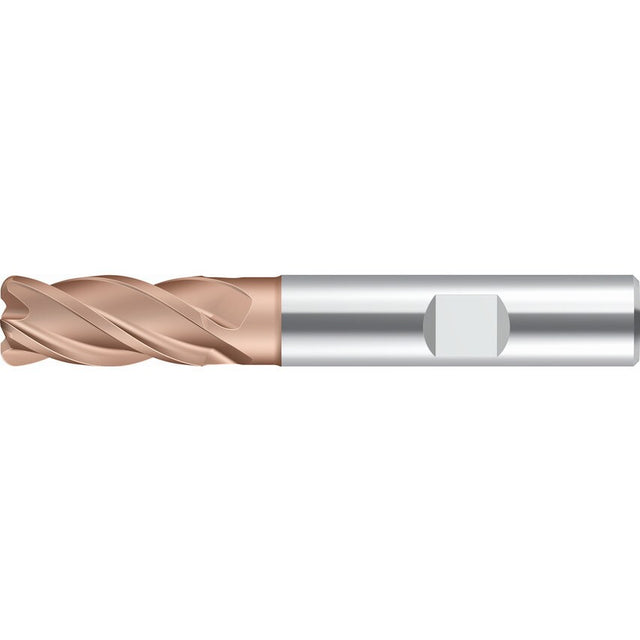

Solid carbide shoulder/slot mills MC232 Perform DIN 6535 HB shank inch flute helix angle 35 Long reach center cutting capability WJ30ED Dc=0.625in R=0.1252in Z=4
| Tool Designation | MC232.15.9W4D318C-WJ30ED |
| MFR Part No. | 7568751 |
| Overall Length | 3.5in |
| Shank Diameter | 0.62in |
| Number of Teeth | 4 |
| Cutting Edge Diameter | 5/8in |
| Length of Cut | 1.56in |
| Functional Length | 1.59in |
| Cutting Edge Length | 1.25in |
| Corner Radius | 0.12in |
| Neck Diameter | 0.59in |
