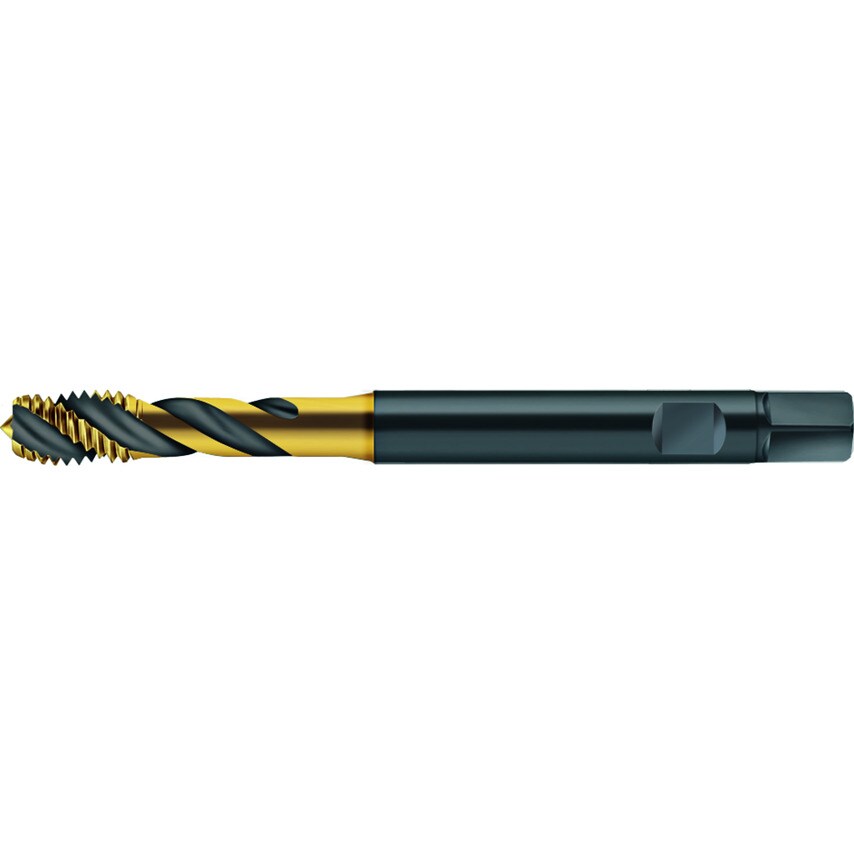

HSS-E machine taps Paradur Synch. C = 2-3xTP (semi-bottom chamfer) 2,5xD M/6HX ~DIN 371 right hand flute 40 Suitable for blind hole TIN/VAP M 10 P=0.0591in
| Driving Square Length | 11mm |
| Thread Size | M 10 |
| MFR Part No. | 5101699 |
| Usable Length | 39mm |
| Functional Length | 100mm |
| Cutting Edge Length | 16mm |
| Connection Diameter | 10mm |
| Clamping Width | 8mm |
| Number of Grooves | 3 |
| Tool Designation | S2051315-M10 |
| Thread Pitch | 1.5mm |
