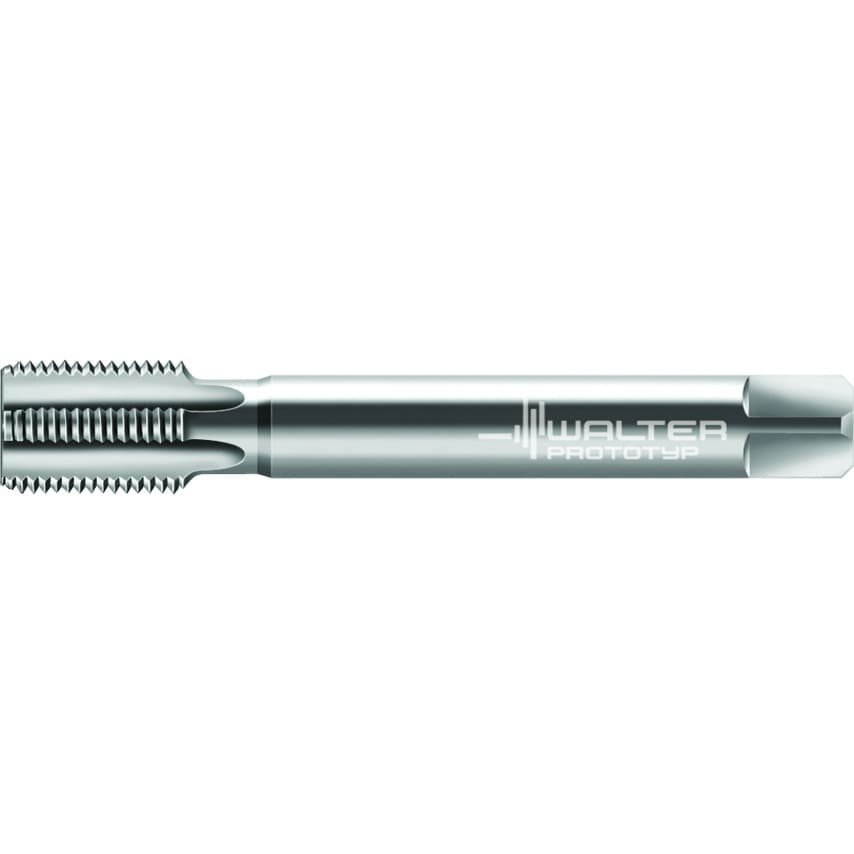

HSS-E machine taps Paradur HN E = 1.5-2xTP (full bottom chamfer) 1,5xD MF/6HX DIN 374 neutral (straight) flute 0 Suitable for blind hole MF 22x1.5 P=0.0591in
| Number of Grooves | 6 |
| Usable Length | 78mm |
| Driving Square Length | 17mm |
| Thread Pitch | 1.5mm |
| Tool Designation | 213614-M22X1.5 |
| Connection Diameter | 18mm |
| Cutting Edge Length | 24mm |
| Clamping Width | 14.5mm |
| MFR Part No. | 5077530 |
| Functional Length | 125mm |
| Thread Size | MF 22x1.5 |
