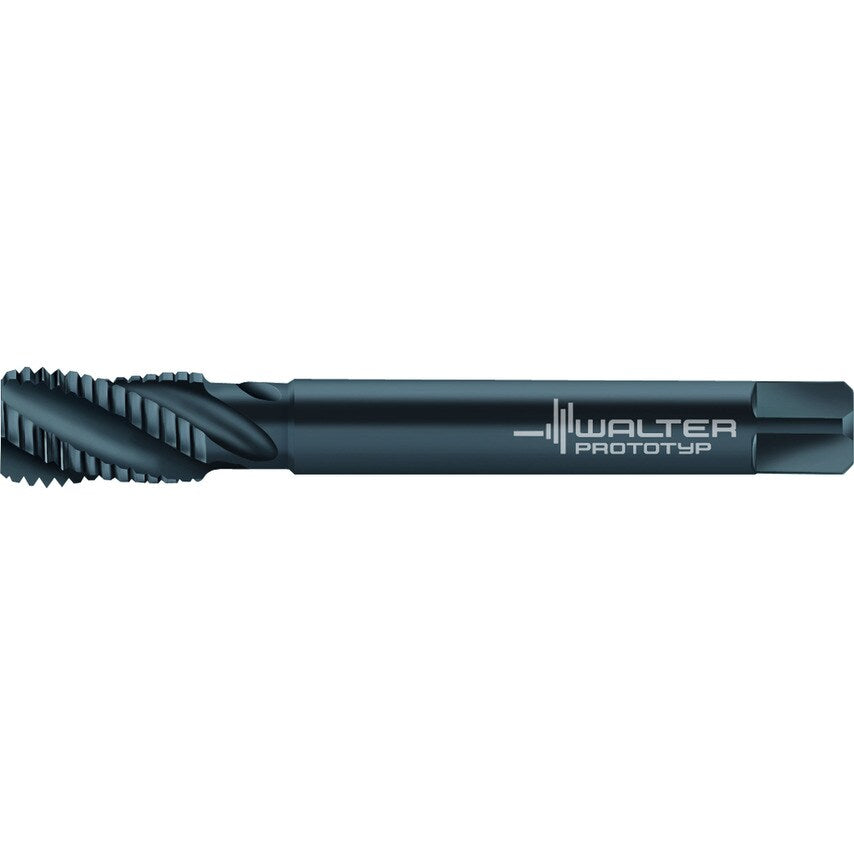

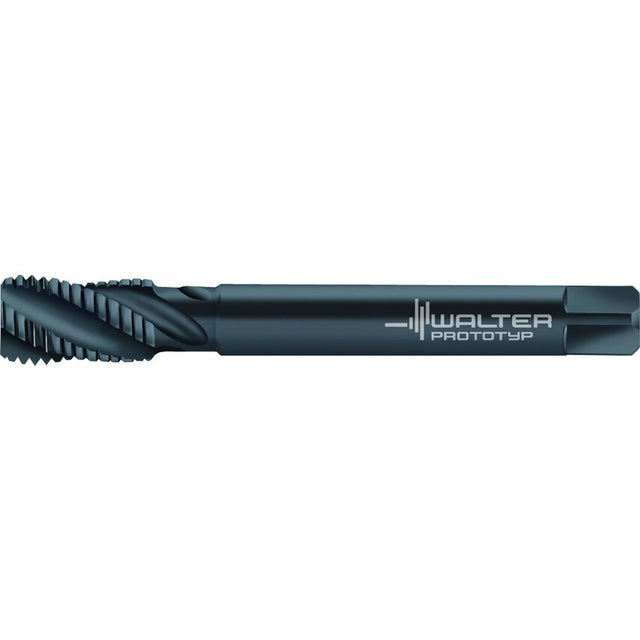

HSS-E machine taps Paradur Xpert M C = 2-3xTP (semi-bottom chamfer) 2,5xD UN/2B DIN 2184-1 right hand flute 40 Suitable for blind hole VAP UN 1.1/2-8 P=8
| Clamping Width | 22mm |
| Tap Type | Machine Tap |
| Driving Square Length | 25mm |
| Material | HSSE |
| Connection Diameter | 28mm |
| Cutting Edge Length | 30mm |
| Tool Designation | M225632-UN1.1/2 |
| Functional Length | 200mm |
| MFR Part No. | 6149965 |
| Thread Size | UN 1.1/2-8 |
| Finish/Coating | VAP |
| Thread Standard | UN |
| Number of Grooves | 5 |
