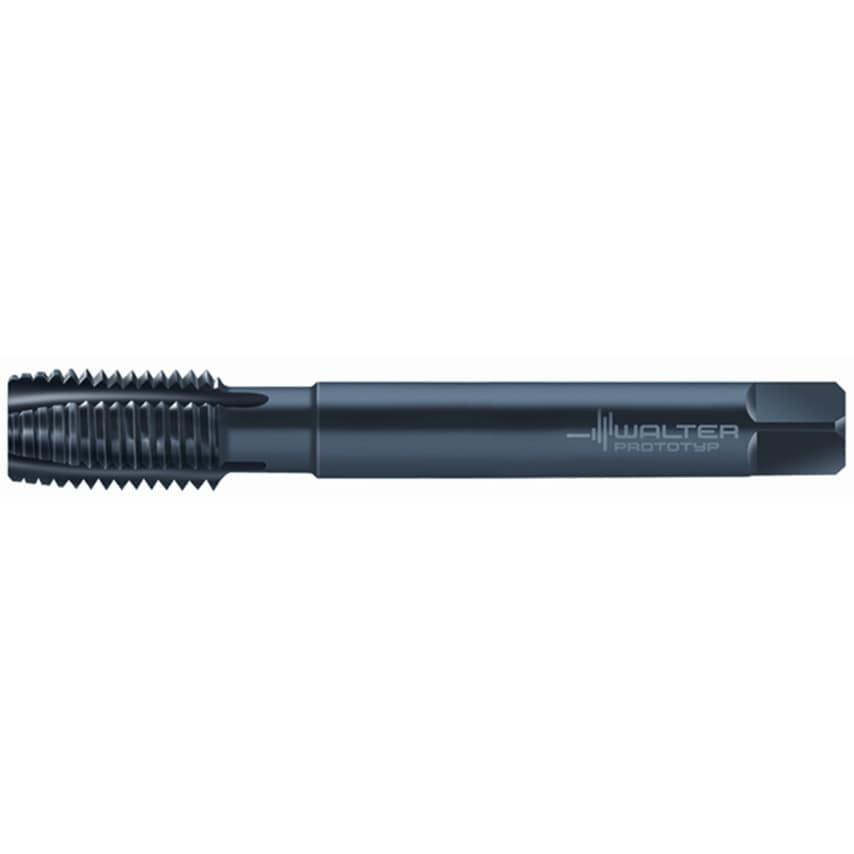

HSS-E machine taps Prototex Xpert M B = 3.5-5xTP (plug chamfer) 3xD UNF/2B DIN 2184-1 Suitable for through hole VAP UNF 9/16-18 P=18
| MFR Part No. | 6149995 |
| Shank Diameter | 11mm |
| Thread Size | UNF 9/16-18 |
| Cutting Edge Length | 21mm |
| Driving Square Length | 12mm |
| Overall Length | 100mm |
| Tool Designation | M23263-UNF9/16 |
| Clamping Width | 9mm |
| Usable Length | 71mm |
| Number of Grooves | 4 |
