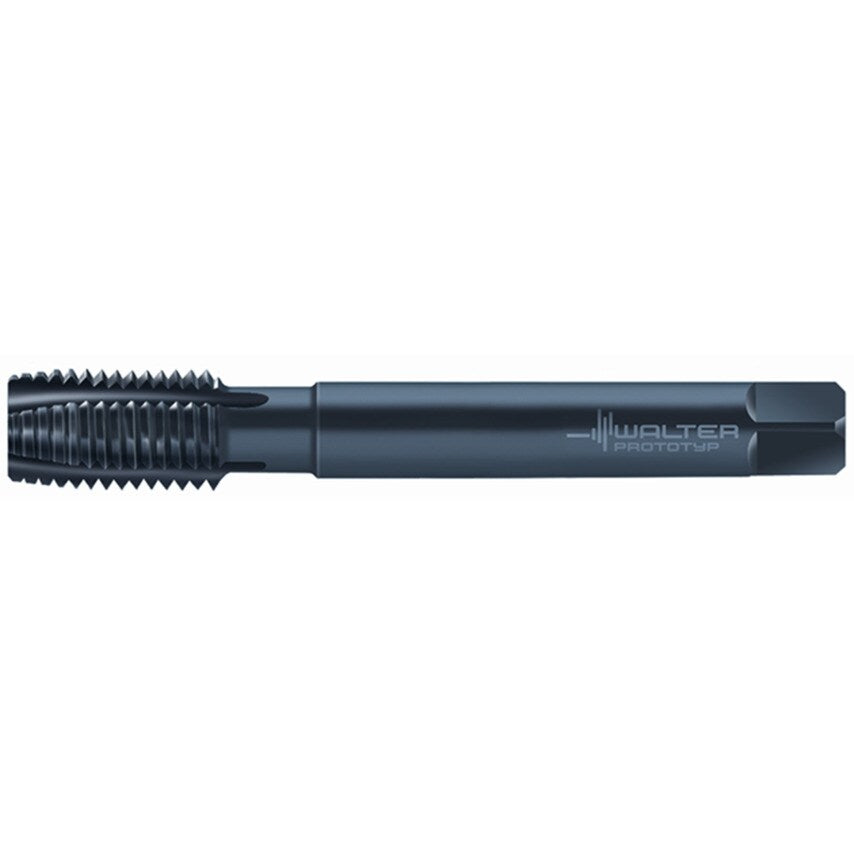

HSS-E machine taps Prototex Xpert M B = 3.5-5xTP (plug chamfer) 3xD UNF/2B DIN 2184-1 Suitable for through hole VAP UNF 7/16-20 P=20
| Overall Length | 100mm |
| Cutting Edge Length | 20mm |
| Tool Designation | M23263-UNF7/16 |
| Thread Size | UNF 7/16-20 |
| MFR Part No. | 6149993 |
| Usable Length | 76mm |
| Shank Diameter | 8mm |
| Number of Grooves | 3 |
| Driving Square Length | 9mm |
| Clamping Width | 6.2mm |
