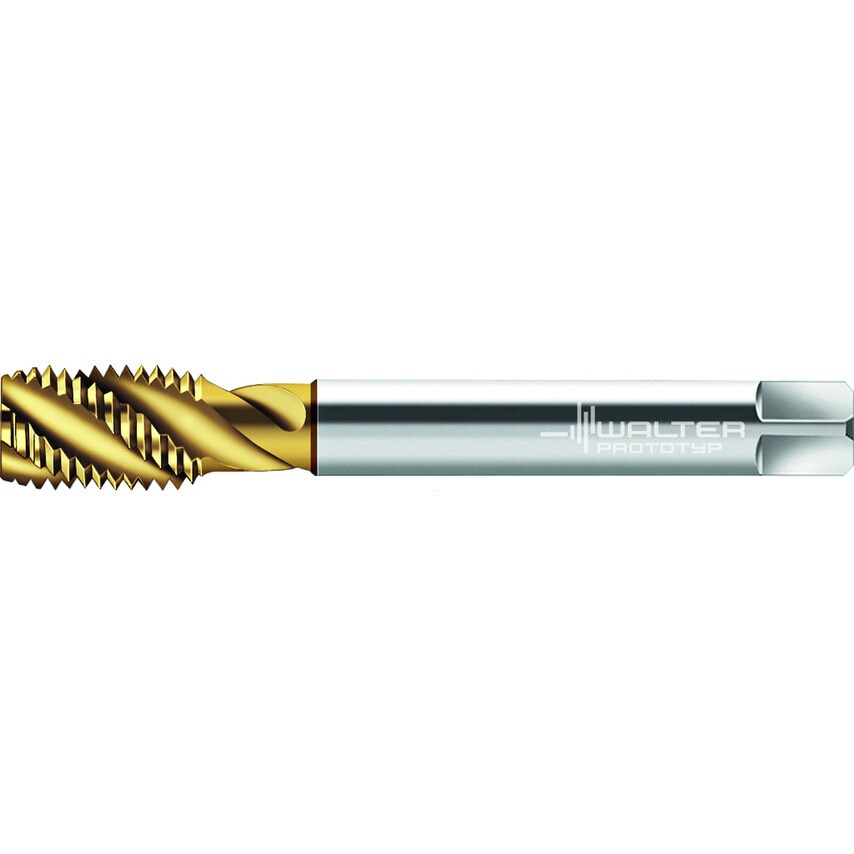

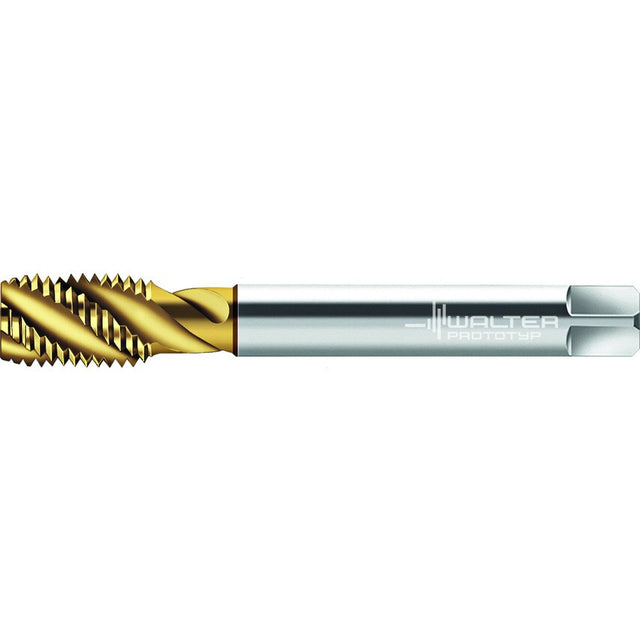

HSS-E machine taps Paradur Xpert P C = 2-3xTP (semi-bottom chamfer) 3xD MF/6H DIN 374 right hand flute 45 Suitable for blind hole TIN MF 12x1 P=0.0394in
| Tool Designation | P2156905-M12X1 |
| Cutting Edge Length | 13mm |
| Pitch | 1mm |
| MFR Part No. | 6244630 |
| ISO Category | O |
| Thread Pitch | 1mm |
| Number of Grooves | 4 |
| Connection Diameter | 9mm |
| Usable Length | 73mm |
| ISO Designation | P2156905-M12X1 |
| Series | Paradur\u00ae X\u00b7pert P |
| Tap Type | Spiral Flute |
| Thread Standard | Metric |
| Thread Size | M12 |
| Clamping Width | 7mm |
| Finish/Coating | TiN |
| Material | HSSE |
| Driving Square Length | 10mm |
| Dimensions Standard | DIN 374 |
| Functional Length | 100mm |
