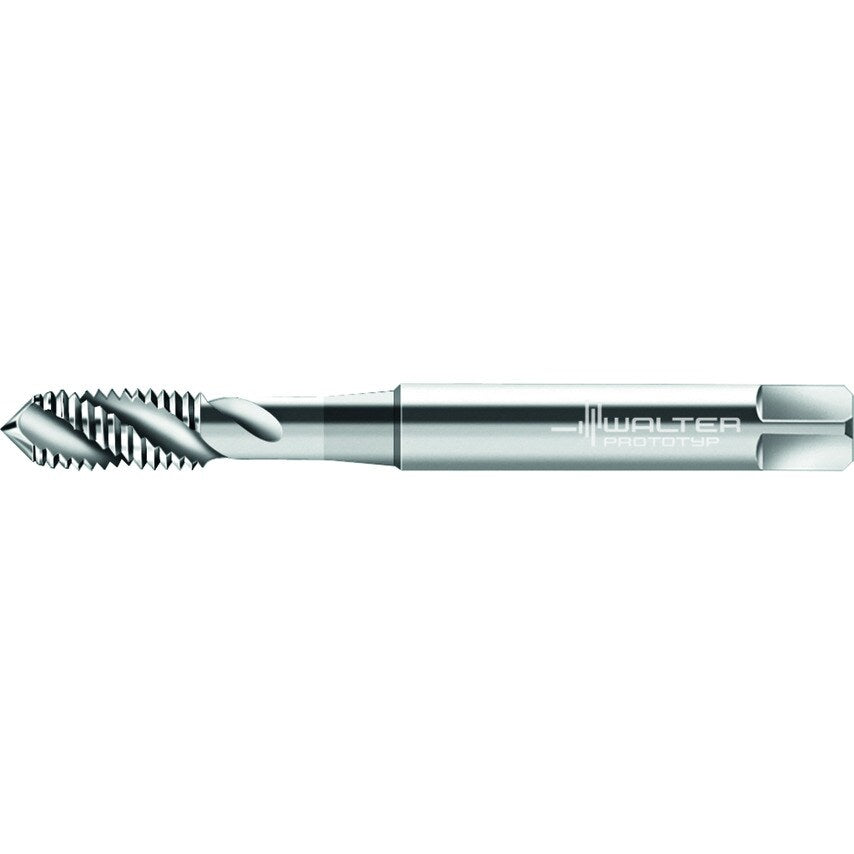

HSS-E machine taps Paradur Xpert P C = 2-3xTP (semi-bottom chamfer) 3xD UNC/3B DIN 2184-1 right hand flute 45 Suitable for blind hole UNC #8-32 P=32
| MFR Part No. | 6244708 |
| Cutting Edge Length | 7mm |
| Material | HSSE |
| Tool Designation | P22509-UNC8 |
| Number of Grooves | 3 |
| Clamping Width | 3.4mm |
| Driving Square Length | 6mm |
| Usable Length | 21mm |
| Connection Diameter | 4.5mm |
| Thread Standard | UNC |
| Thread Size | UNC #8-32 |
| Functional Length | 63mm |
