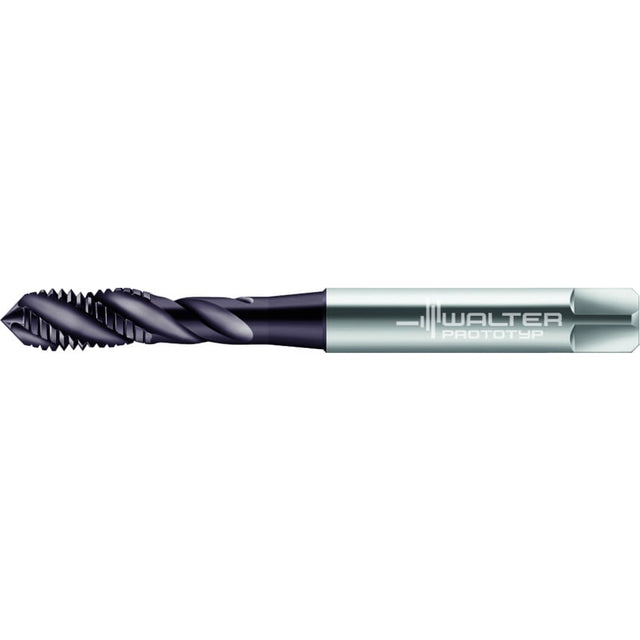

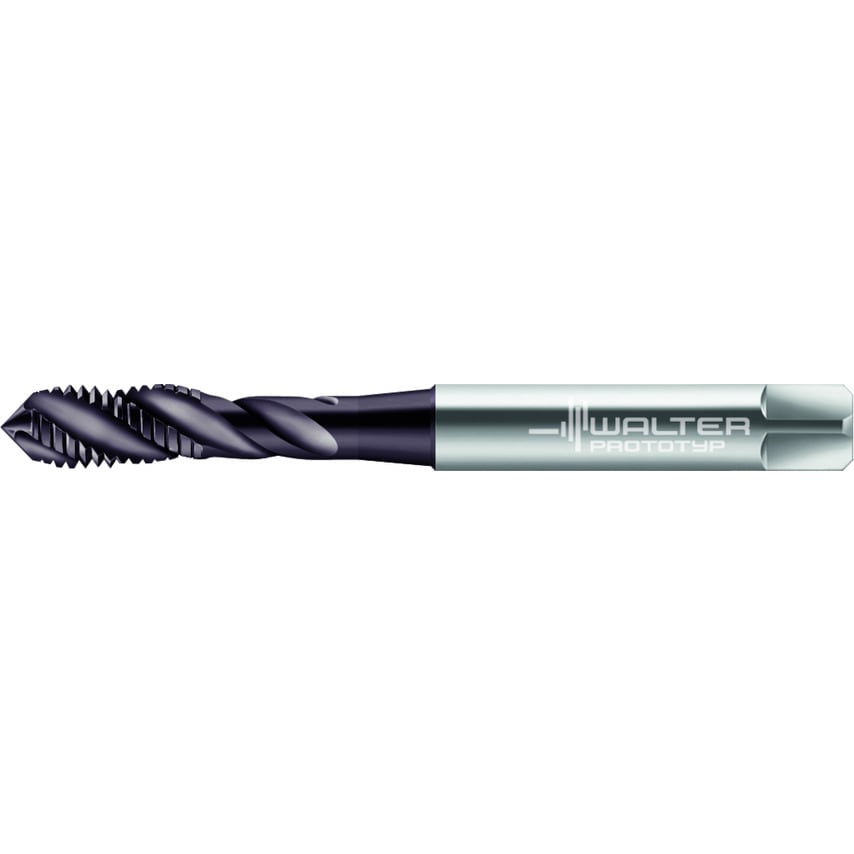

HSS-E PM machine taps Paradur Eco Plus C = 2-3xTP (semi-bottom chamfer) 3xD UNC/2B ~DIN 2184-1 right hand flute 45 Suitable for blind hole THL UNC #10-24 P=24
| Connection Diameter | 6mm |
| Usable Length | 20.7mm |
| Cutting Edge Length | 8mm |
| Tool Designation | EP2251302-UNC10 |
| MFR Part No. | 6245672 |
| Driving Square Length | 8mm |
| Thread Size | UNC #10-24 |
| Number of Grooves | 3 |
| Functional Length | 70mm |
| Clamping Width | 4.9mm |
