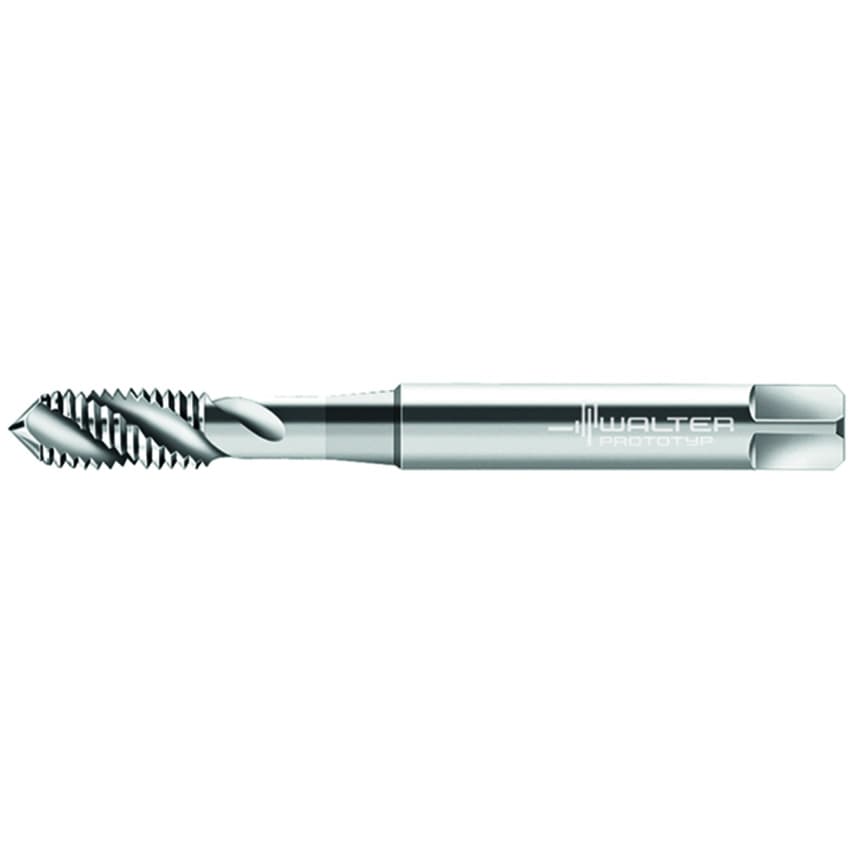

HSS-E machine taps Paradur Xpert P C = 2-3xTP (semi-bottom chamfer) 3xD M/6H DIN 371 right hand flute 45 Suitable for blind hole M 10 P=0.0591in
| Tap Type | Spiral Flute |
| Material | HSSE |
| MFR Part No. | 6244473 |
| Cutting Edge Length | 15mm |
| Thread Pitch | 1.5mm |
| Dimensions Standard | DIN 371 |
| Pitch | 1.5mm |
| Finish/Coating | Uncoated |
| Thread Standard | Metric |
| ISO Designation | P20519-M10 |
| Tool Designation | P20519-M10 |
| Driving Square Length | 11mm |
| Number of Grooves | 3 |
| Series | Paradur\u00ae X\u00b7pert P |
| Thread Size | M10 |
| Usable Length | 39mm |
| Clamping Width | 8mm |
| Functional Length | 100mm |
| ISO Category | O |
| Connection Diameter | 10mm |
