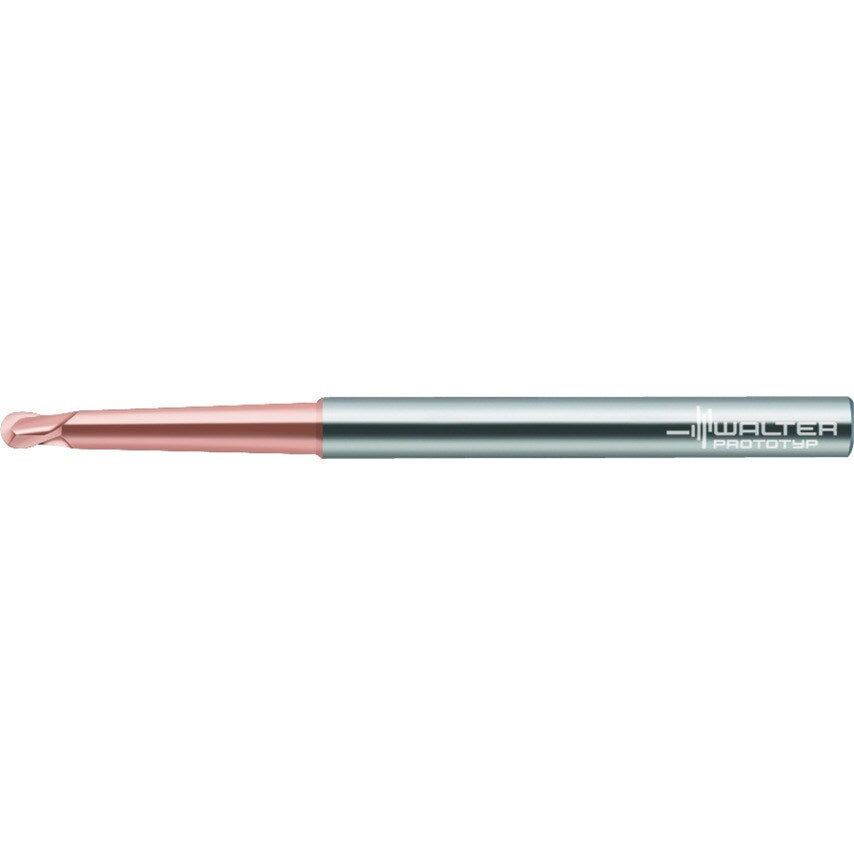

Solid carbide ball-nose copy milling cutters Advance DIN 6535 HA shank WB10TG metric flute helix angle 30 Dc=0.0394in R=0.0197in Z=2
| Cutting Diameter | 1mm |
| Overall Length | 57mm |
| Usable Length | 17.09mm |
| Corner Radius | 0.5mm |
| Cutting Edge Length | 0.8mm |
| Clearance Angle Major | 4\u00b0 |
| Functional Length | 21mm |
| MFR Part No. | 7255223 |
| Tool Designation | MC482-01.0A2PW-WB10TG |
| Connection Size Code | 6mm |
| Number of Teeth | 2 |
