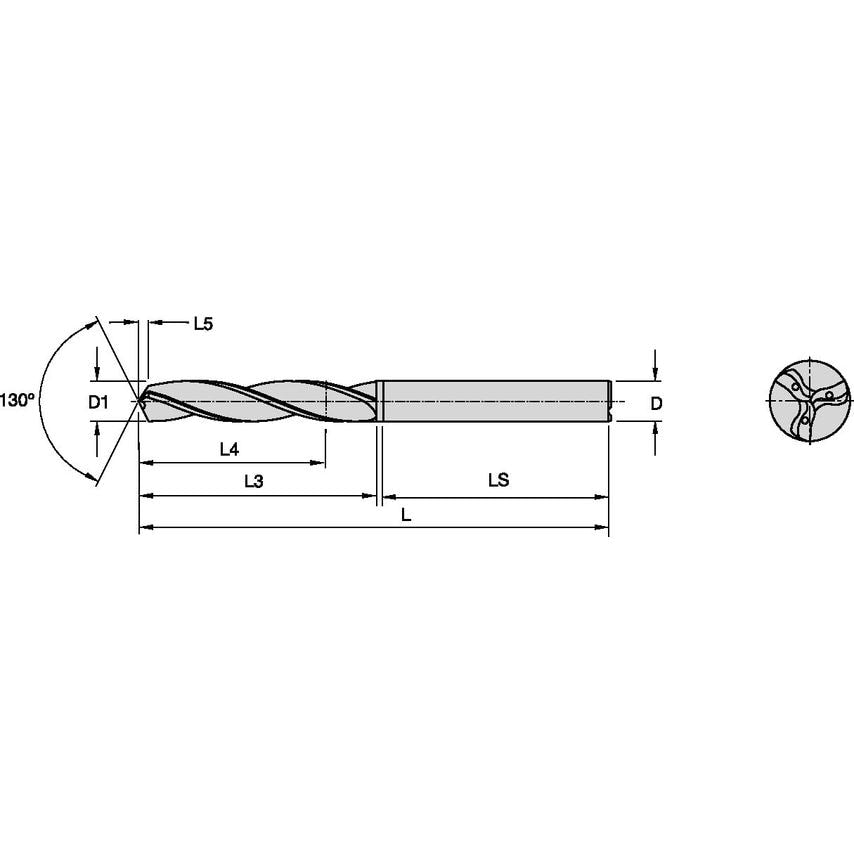

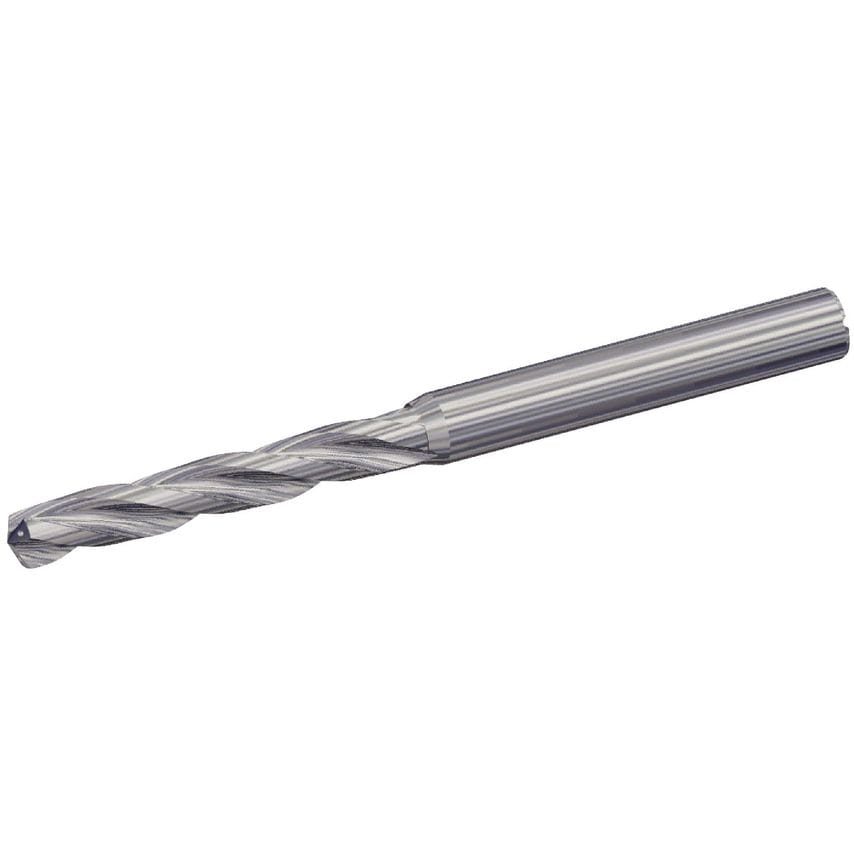

TF Drills Titanium Materials Through Coolant
Solid Carbide Drills
| Drill Point | 1.825mm |
| Adapter Style | Straight-Cylindrical |
| Finish/Coating | Uncoated |
| Adapter / Shank / Bore Diameter | 8.0000mm |
| Helix Angle | 28.105 |
| Functional Length | 103.1750mm |
| Assembly Length | 67.175mm |
| Flute Construction | Helical Flute |
| MFR Part No. | 1762691 |
| Drill Diameter Tolerance | 0.006000 to 0.015000mm |
| Number of Flutes | 3 |
| Hand Preference | Right |
| Adapter Type | Cylindrical |
| Shank Length | 50.0000mm |
| Gage Length | 55mm |
| Drill Depth | 43mm | 43.0000mm |
| Drill Diameter | 6.8000mm |
| Material | Carbide |
| Coolant Supplied | Yes |
| Coolant Delivery | Off-center Axial Coolant |
| Helix Type | Right Hand Helix/Flute |
| Clamping Length | 36mm |
| Overall Length | 105mm | 105.0000mm |
| Flute Length | 53mm | 53.0000mm |
| Unit Measured | Metric |
