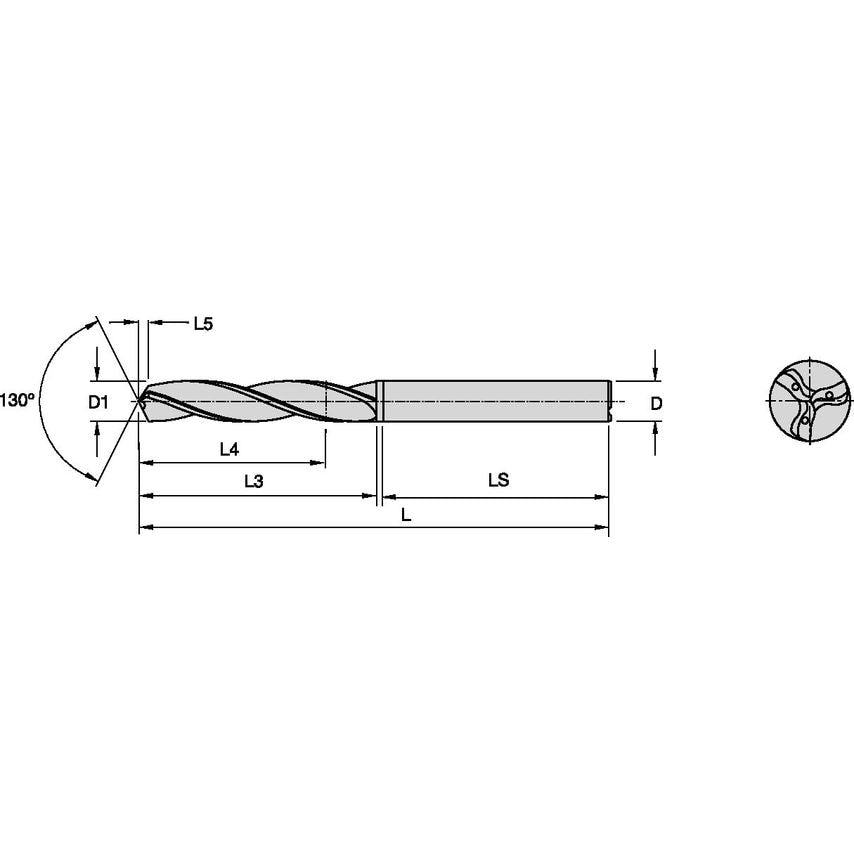

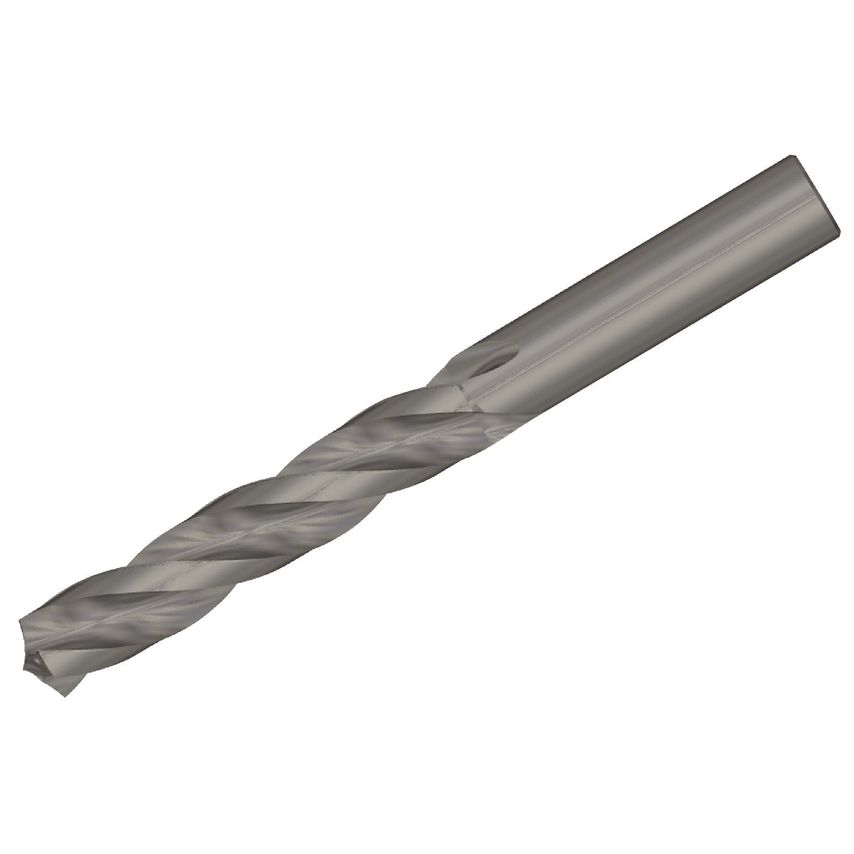

TF Drills Titanium Materials Through CoolantSolid Carbide Drills
| Number of Flutes | 2 |
| Flute Length | 82mm | 82.0000mm |
| Drill Diameter | 15.8750mm |
| MFR Part No. | 1762668 |
| Finish/Coating | Uncoated |
| Helix Angle | 29.210 |
| Hand Preference | Right |
| Functional Length | 166.7400mm |
| Adapter / Shank / Bore Diameter | 15.875mm | 15.8750mm |
| Coolant Delivery | Off-center Axial Coolant |
| Shank Length | 86.5000mm |
| Flute Construction | Helical Flute |
| Unit Measured | Imperial |
| Drill Depth | 64.5mm | 64.5000mm |
| Overall Length | 171mm | 171.0000mm |
| Adapter Style | Straight-Cylindrical |
| Coolant Supplied | Yes |
| Gage Length | 84.5mm |
| Helix Type | Right Hand Helix/Flute |
| Assembly Length | 123.74mm |
| Adapter Type | Cylindrical |
| Drill Point | 4.26mm |
| Clamping Length | 43mm |
| Material | Carbide |
| Drill Diameter Tolerance | 0.007000 to 0.018000mm |
