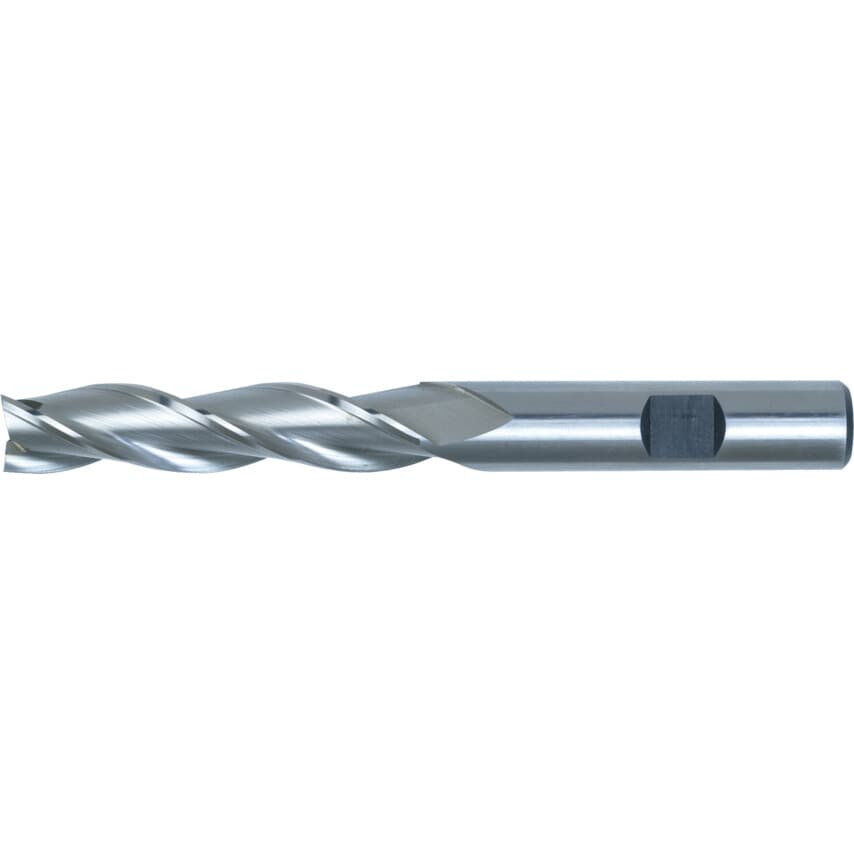

Long Series.
Centre cutting. Weldon shank to DIN 1835B. Cutting diameter to e8. Shank diameter to h6. Available in HSS-Co 8% Uncoated (for general production machining).
| Length Type | Long |
| Flute Type | Helical |
| Number of Flutes | 3 |
| Finish/Coating | Uncoated |
| Cutter Diameter Tolerance | e8 |
| Product Type | Slot Drills |
| Overall Length | 166mm |
| Shank Type | Weldon Flat |
| Material | Cobalt High Speed Steel |
| Standards Met | DIN 184 | DIN 1835B |
| Milling Cutter Type | Slot Drill |
| Shank Diameter Tolerance | H6 |
| System of Measurement | Metric |
| Milling Application | Profiling | Slotting |
| End Mill Type | Slot Drill |
| Cutter Style | Square |
| Coolant Delivery | External |
| Flute Length | 90mm |
| Material Grade | M42 |
| Shank Diameter | 25mm |
| Cutter Diameter | 26mm |
| Plunge Type | Centre Cutting |
| Cutting Direction | Right Hand |
