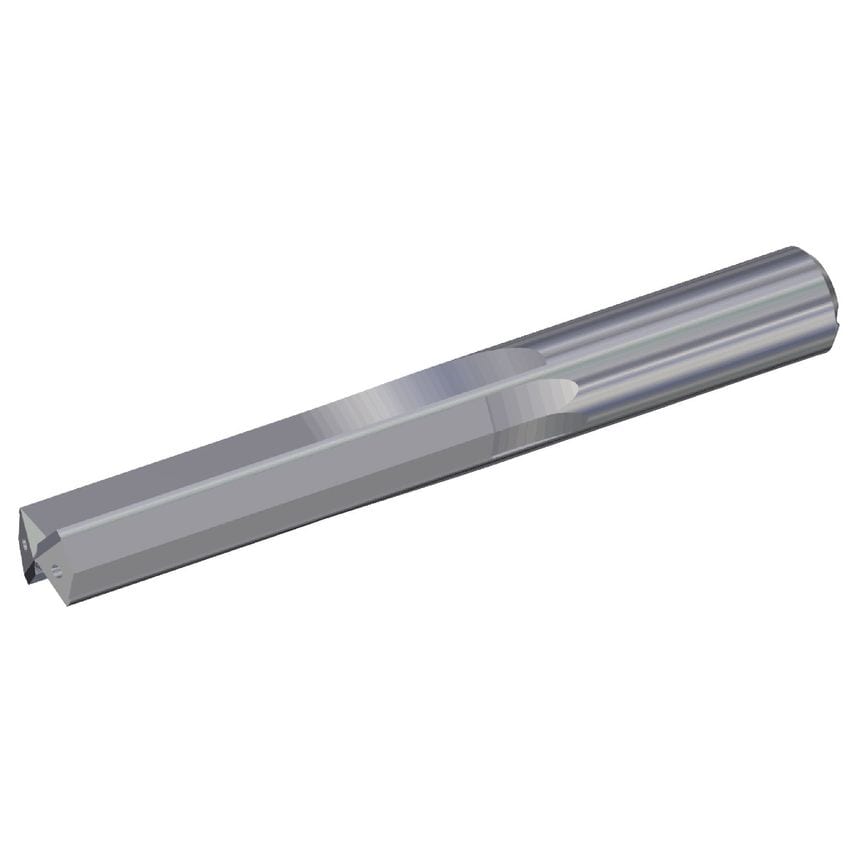

TX Drills Close Tolerance Holes Through CoolantSolid Carbide Drills
| Adapter / Shank / Bore Diameter | 6.35mm | 6.3500mm |
| Clamping Length | 36mm |
| Gage Length | 45.5mm |
| Coolant Delivery | Off-center Axial Coolant |
| Hand Preference | Right |
| Flute Construction | Helical Flute |
| Primary Material | Cast Iron |
| Finish/Coating | Uncoated |
| Overall Length | 82mm | 82.0000mm |
| Drill Diameter Tolerance | 0.001000 to 0.009000mm |
| Number of Flutes | 2 |
| Helix Type | Right Hand Helix/Flute |
| Drill Depth | 34.9mm | 34.9000mm |
| Adapter Type | Cylindrical |
| Material | Carbide |
| Adapter Style | Straight-Cylindrical |
| MFR Part No. | 1201030 |
| Drill Point | 1.388mm |
| Drill Diameter | 5.9530mm |
| Functional Length | 80.6120mm |
| Unit Measured | Imperial |
| Assembly Length | 44.612mm |
| Shank Length | 36.5000mm |
| Coolant Supplied | Yes |
| Flute Length | 43.5mm | 43.5000mm |
| Helix Angle | 0.000 |
