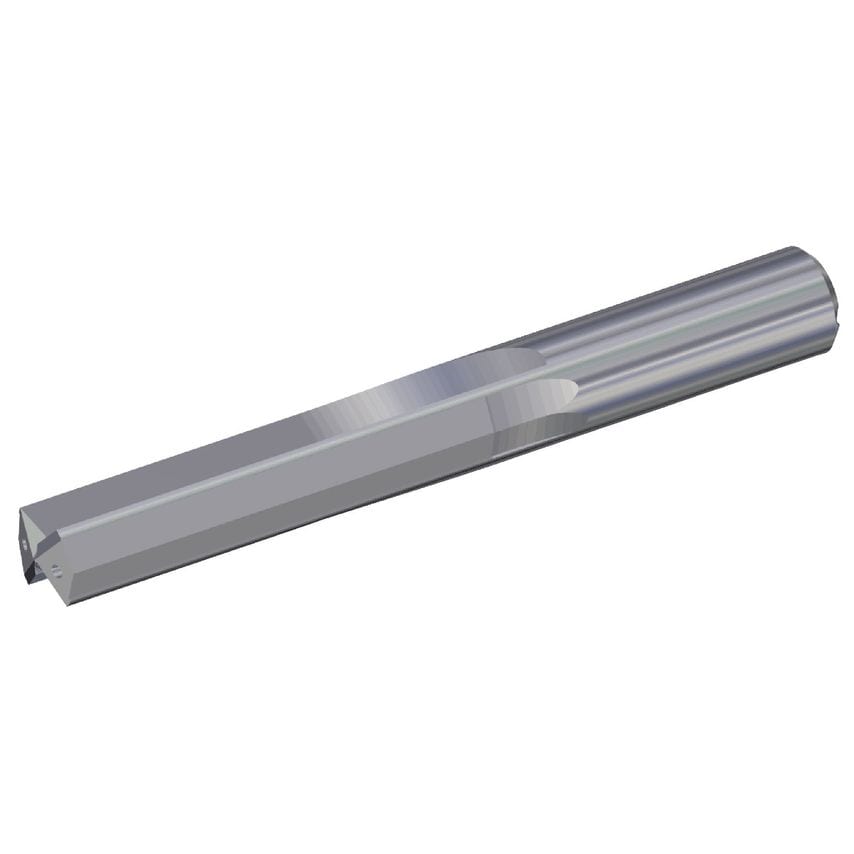

TX Drills Close Tolerance Holes Through CoolantSolid Carbide Drills
| Unit Measured | Imperial |
| Drill Diameter | 7.1420mm |
| Functional Length | 151.4500mm |
| Drill Point | 1.55mm |
| Material | Carbide |
| MFR Part No. | 1201033 |
| Clamping Length | 36mm |
| Coolant Diameter | 1.2800mm (0.0335in) |
| Primary Material | Cast Iron |
| Flute Construction | Straight Flute |
| Drill Diameter Tolerance | 0.001000 to 0.010000mm |
| Helix Type | Neutral/Straight Flute |
| Shank Length | 38.5000mm |
| Coolant Delivery | Off-center Axial Coolant |
| Helix Angle | 0.000 |
| Coolant Supplied | Yes |
| Adapter Style | Straight-Cylindrical |
| Assembly Length | 124.45mm |
| Overall Length | 153mm | 153.0000mm |
| Hand Preference | Right |
| Adapter / Shank / Bore Diameter | 7.9375mm |
| Drill Depth | 81.2mm | 81.2000mm |
| Gage Length | 52.5mm |
| Finish/Coating | Uncoated |
| Flute Length | 101mm | 101.0000mm |
| Number of Flutes | 2 |
| Adapter Type | Cylindrical |
