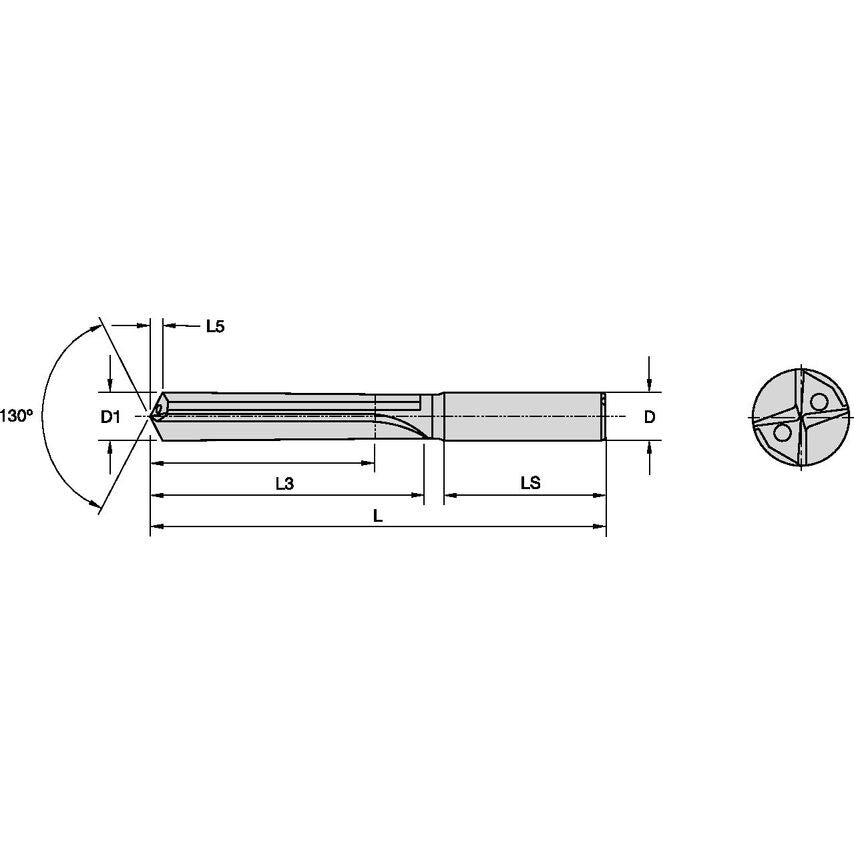

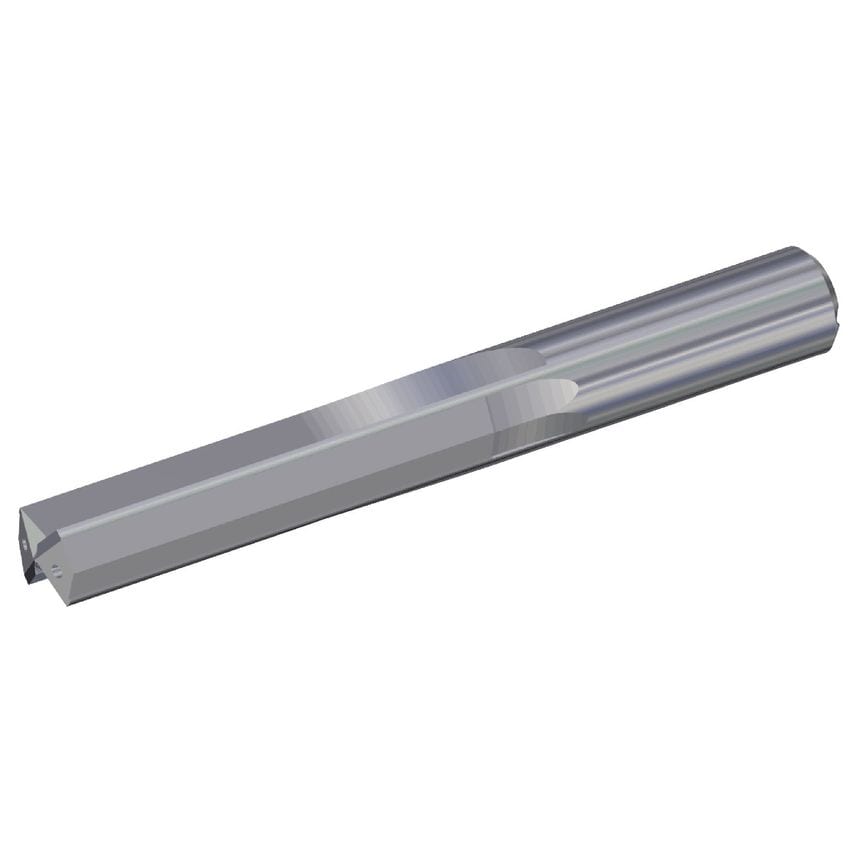

TX Drills Close Tolerance Holes Through CoolantSolid Carbide Drills
| Adapter Style | Straight-Cylindrical |
| Flute Construction | Helical Flute |
| Helix Angle | 0.000 |
| Clamping Length | 42.499mm |
| Drill Point | 2.591mm |
| Hand Preference | Right |
| Number of Flutes | 2 |
| Adapter Type | Cylindrical |
| Assembly Length | 65.91mm |
| Adapter / Shank / Bore Diameter | 11.113mm | 11.1130mm |
| Overall Length | 111mm | 111.0000mm |
| Material | Carbide |
| Functional Length | 108.4090mm |
| MFR Part No. | 1201043 |
| Gage Length | 68.5mm |
| Coolant Delivery | Off-center Axial Coolant |
| Primary Material | Cast Iron |
| Flute Length | 66.5mm | 66.5000mm |
| Finish/Coating | Uncoated |
| Unit Measured | Imperial |
| Drill Diameter Tolerance | 0.001000 to 0.012000mm |
| Drill Diameter | 11.1120mm |
| Coolant Supplied | Yes |
| Helix Type | Right Hand Helix/Flute |
| Drill Depth | 53.1mm | 53.1000mm |
| Shank Length | 42.4990mm |
