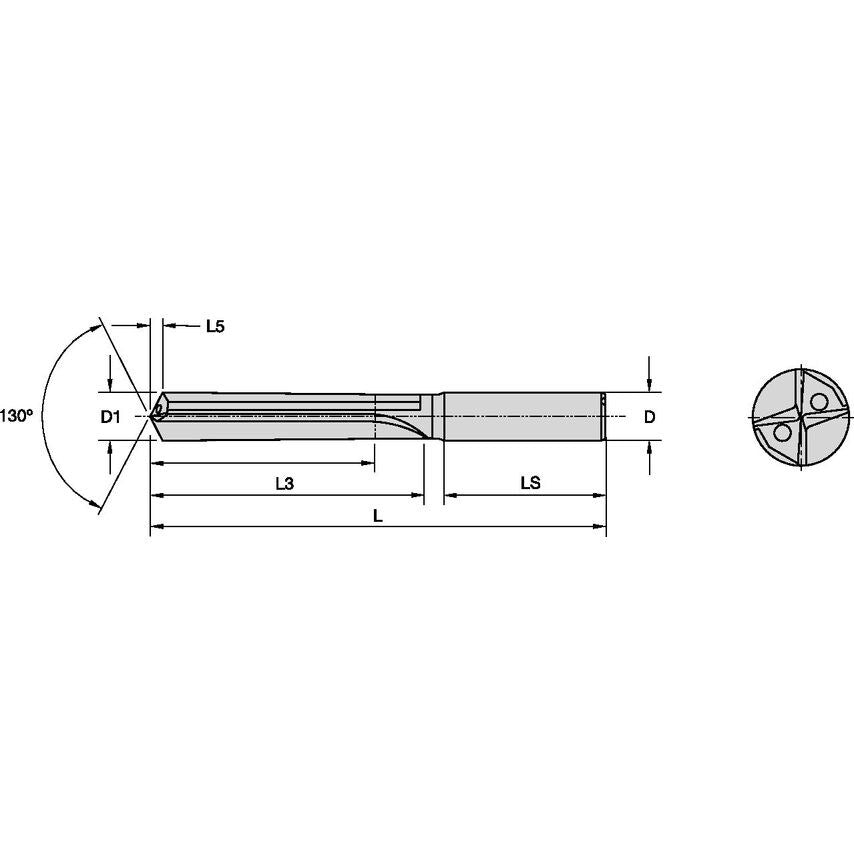

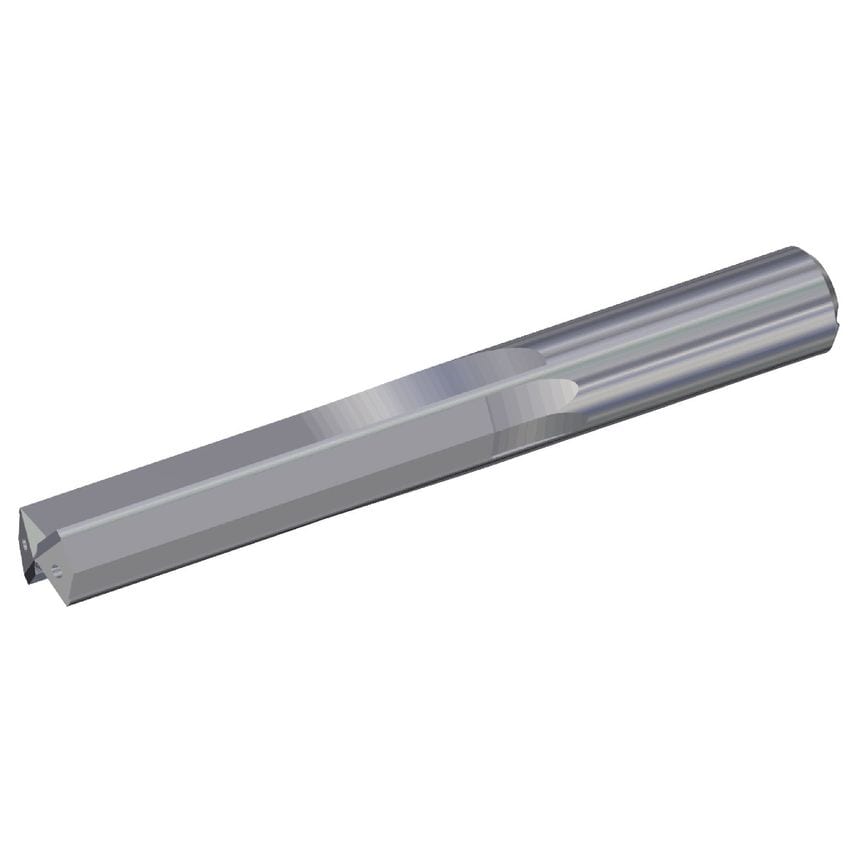

TX Drills Close Tolerance Holes Through CoolantSolid Carbide Drills
| Number of Flutes | 2 |
| Adapter Type | Cylindrical |
| Flute Length | 60.5mm | 60.5000mm |
| Drill Depth | 48.7mm | 48.7000mm |
| Clamping Length | 40.5mm |
| Primary Material | Cast Iron |
| Hand Preference | Right |
| Flute Construction | Helical Flute |
| Coolant Supplied | Yes |
| Overall Length | 103mm | 103.0000mm |
| Helix Angle | 0.000 |
| Gage Length | 62.5mm |
| Drill Diameter | 8.7310mm |
| MFR Part No. | 1201037 |
| Drill Diameter Tolerance | 0.001000 to 0.010000mm |
| Helix Type | Right Hand Helix/Flute |
| Adapter / Shank / Bore Diameter | 9.525mm | 9.5250mm |
| Drill Point | 2.036mm |
| Adapter Style | Straight-Cylindrical |
| Assembly Length | 60.464mm |
| Shank Length | 40.5000mm |
| Functional Length | 100.9640mm |
| Coolant Delivery | Off-center Axial Coolant |
| Finish/Coating | Uncoated |
| Material | Carbide |
| Unit Measured | Imperial |
