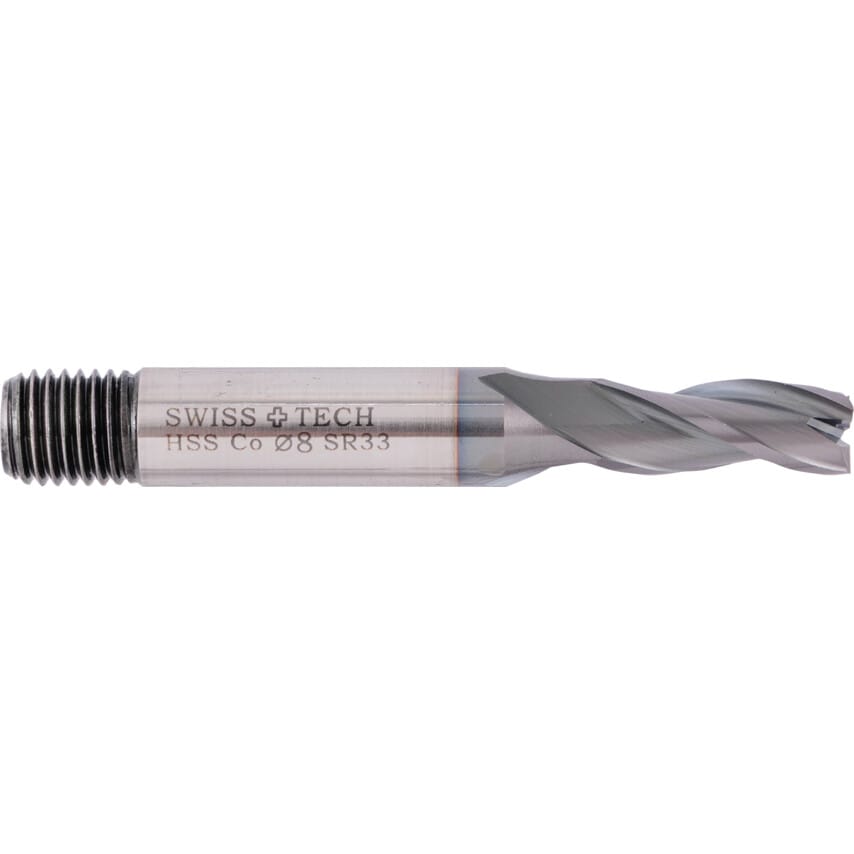

Series 33 - Regular Series, TiCN Coated
Dimensions to DIN 844. Centre cutting. Threaded shank to DIN 1835B. Cutting diameter to e8. Shank diameter to h6.
Uncoated (for general production machining)
TiCN Coated (extends cutter life and improves work material surface finish) and TiALN Coated (dissipates and resists heat, reduces surface friction coupled with high surface hardness).
| Product Type | Slot Drills |
| Series | 33 |
| Shank Diameter | 10.0mm |
| Milling Cutter Type | Slot Drill |
| Flute Type | Helical |
| End Mill Type | Slot Drill |
| Finish/Coating | TiCN |
| Cutter Diameter Tolerance | e8 |
| Material Grade | M42 |
| Standards Met | DIN 844 | DIN 1835D |
| Number of Flutes | 3 |
| Cutter Style | Square End |
| Flute Length | 19.0mm |
| Cutter Diameter | 8.0mm |
| Material | Cobalt High Speed Steel |
| Length Type | Regular |
| System of Measurement | Metric |
| Cutting Direction | Right Hand |
| Overall Length | 69.0mm |
| Shank Type | Threaded |
| Plunge Type | Centre Cutting |
| Shank Diameter Tolerance | H6 |
| Coolant Delivery | External |
