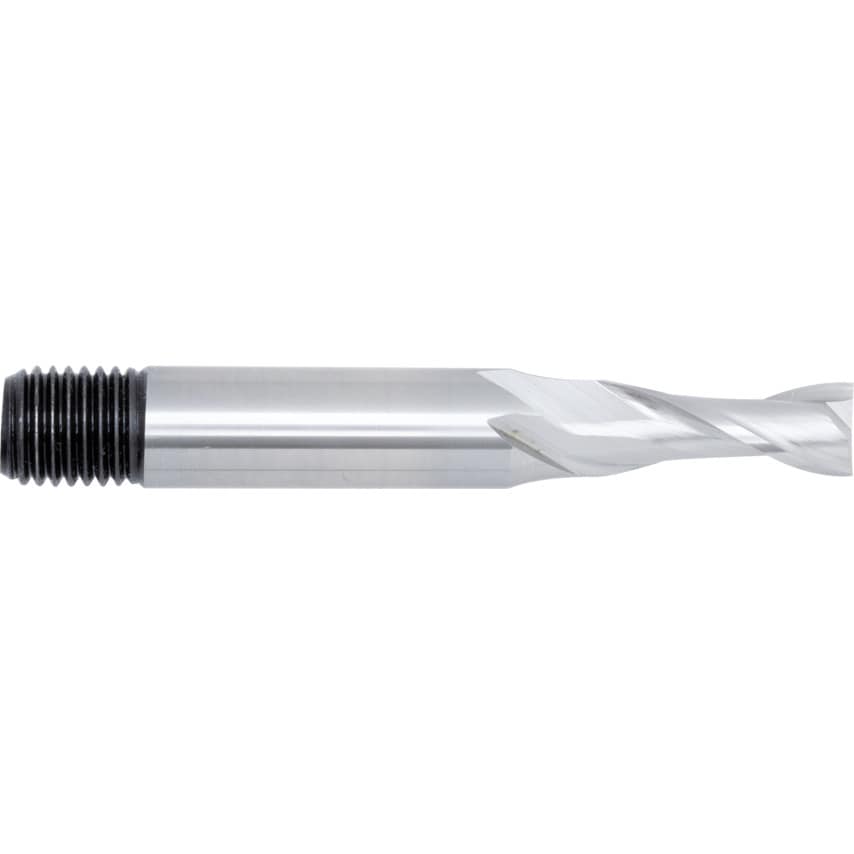

Series 29 - Regular Series slot drills are designed to be the mainstay of general cutting applications, manufactured from an uncoated high speed steel and cobalt construction they offer excellent tool durability and cutting performance in centre cutting applications.
Features and Benefits
High speed steel and cobalt construction for improved durability
2 flutes for excellent cutting efficiency and improved chip control
Suitable for general purpose applications
Standards
Dimensions to DIN 844
Threaded shank to DIN 1835B
| Standards Met | DIN 844 | DIN 1835D |
| Material | Cobalt High Speed Steel |
| System of Measurement | Metric |
| Flute Type | Helical |
| Shank Diameter | 10.0mm |
| Cutting Direction | Right Hand |
| Flute Length | 19.0mm |
| Series | 29 |
| Coolant Delivery | External |
| Plunge Type | Centre Cutting |
| Shank Type | Threaded |
| Cutter Style | Square End |
| Number of Flutes | 2 |
| Cutter Diameter | 8.0mm |
| Finish/Coating | Uncoated |
| End Mill Type | Slot Drill |
| Material Grade | M42 |
| Cutter Diameter Tolerance | e8 |
| Length Type | Regular |
| Milling Cutter Type | Slot Drill |
| Overall Length | 68.0mm |
| Shank Diameter Tolerance | H6 |
