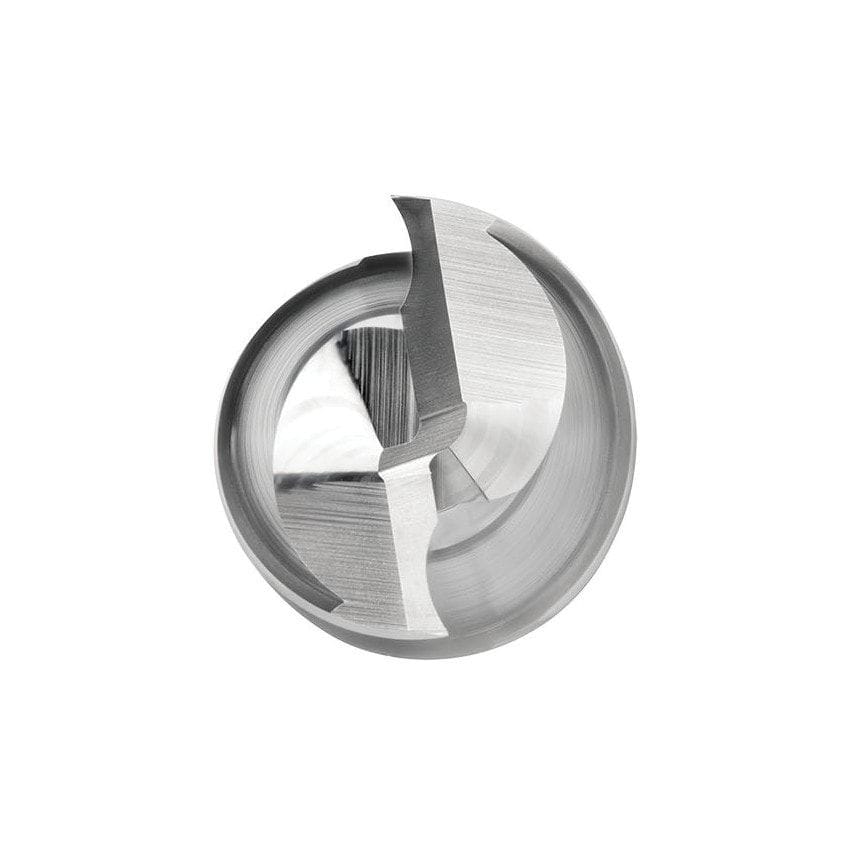

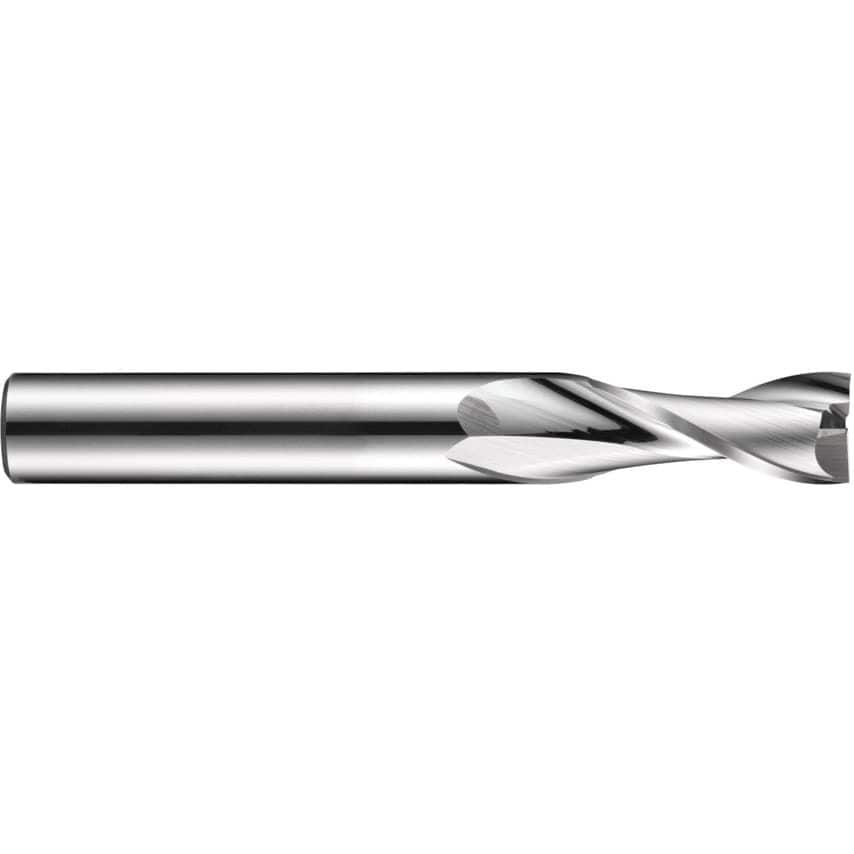

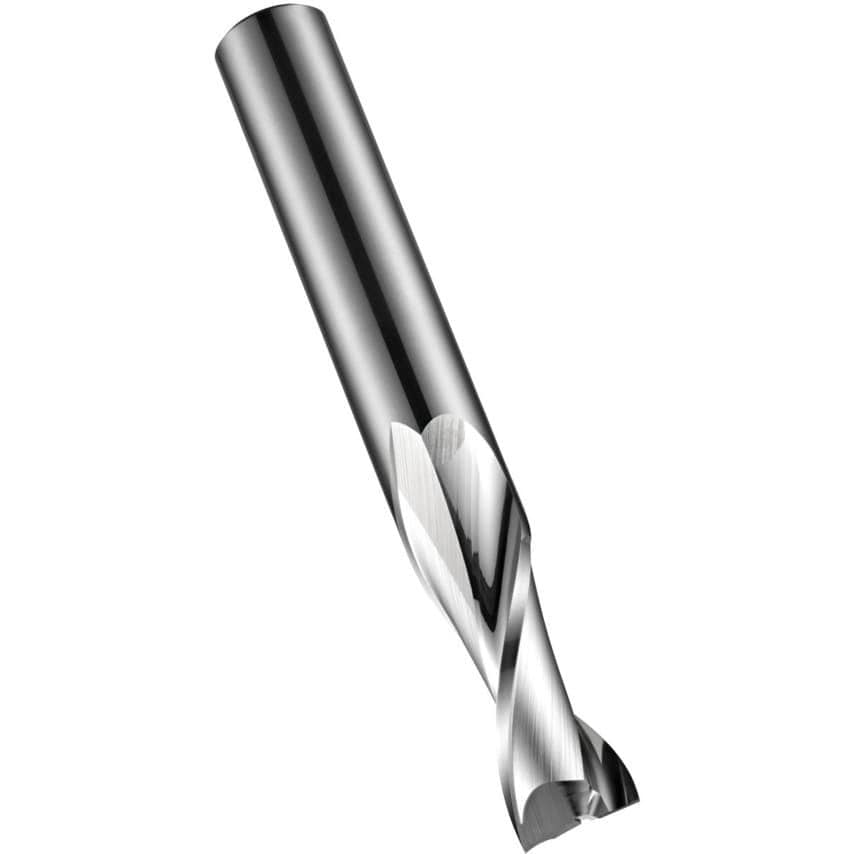

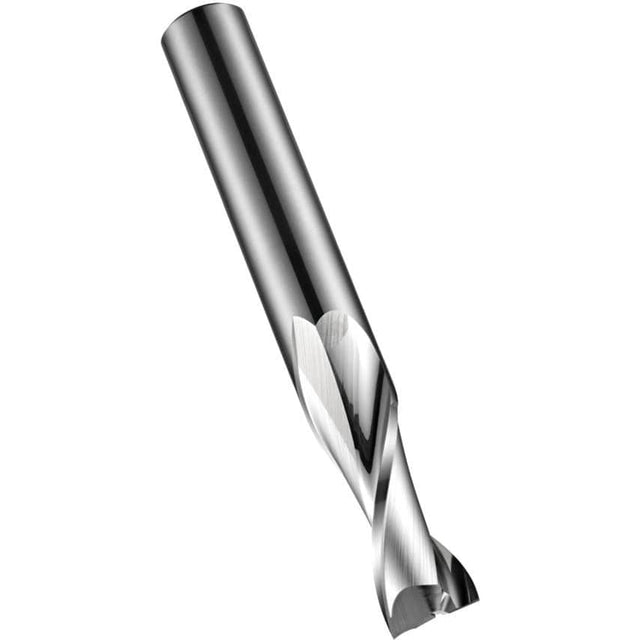

Short series end mill with 2 flutes
| Cutting Direction | Right Hand |
| Length Type | Short |
| Cutter Style | Square End |
| Milling Cutter Type | Slot Drill |
| Flute Length | 15mm |
| Coolant Delivery | External |
| Overall Length | 50mm |
| Finish/Coating | Bright |
| Unit of Measurement | Metric |
| MFR Part No. | S6105.0 |
| Cutter Diameter Tolerance | H9 |
| Length of Cut | Short |
| Finish | Polished |
| Number of Flutes | 2 |
| Flute Type | Helical |
| System of Measurement | Metric |
| Shank Diameter Tolerance | H6 |
| Material | HM |
| End Mill Type | Slot Drill |
| Helix Angle | 30\u00b0 |
| Shank | Cylindrical shank DIN 6535 HA |
| Series | S610 |
| Standards Met | Dormer |
| Shank Diameter | 6mm |
| ISO Designation | N |
| Cutter Diameter | 5mm |
| Corner Radius | 0.1mm |
| Application | Non-ferrous Metals |
| Product Series | S610 |
| Shank Type | Plain Round |
