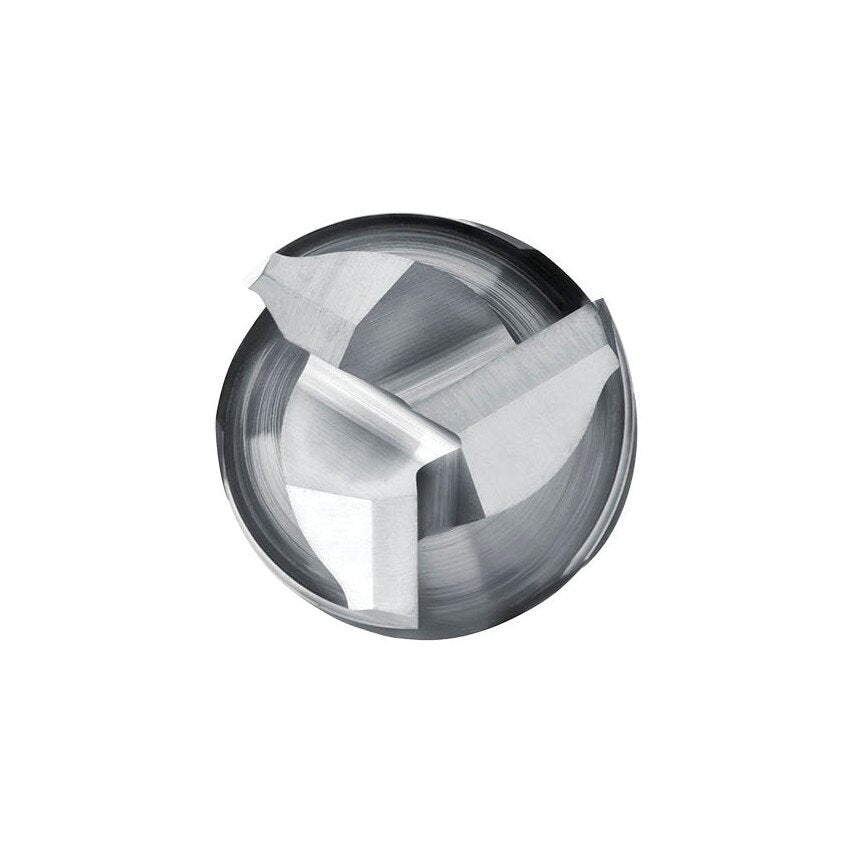

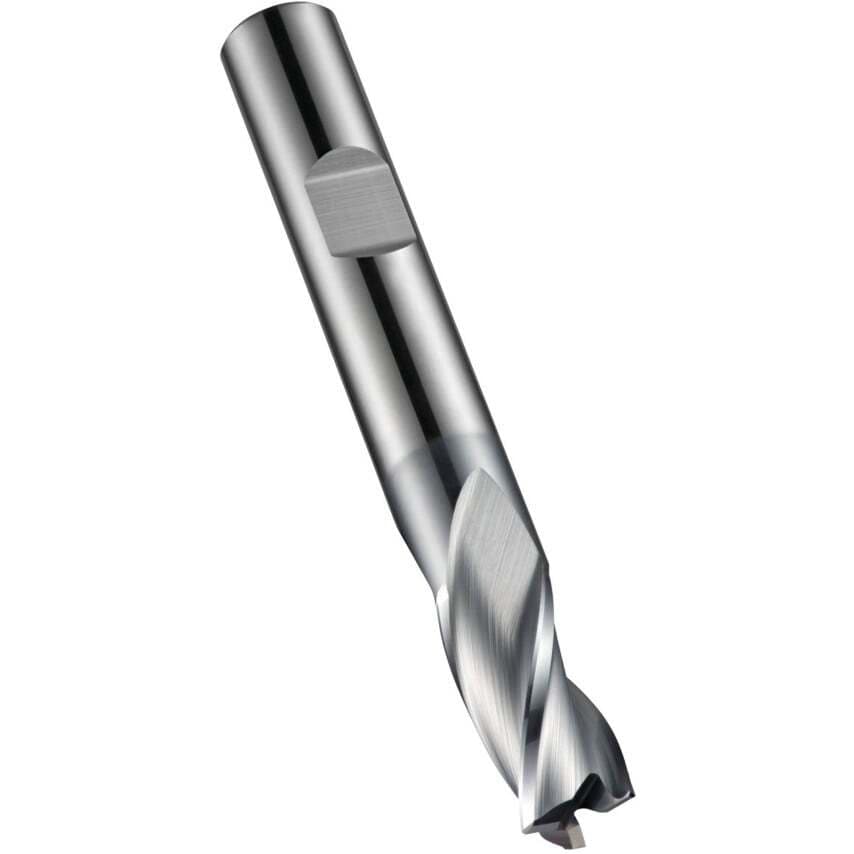

Short series slot drill with 3 flutes
| Length Type | Short |
| Cutter Diameter | 5mm |
| Unit of Measurement | Metric |
| Overall Length | 57mm |
| Shank Type | Weldon Flat |
| Series | S813HB |
| Finish | AlCrN |
| Shank | Cylindrical shank DIN 6535 HB |
| Flute Type | Helical |
| MFR Part No. | S813HB5.0 |
| Milling Cutter Type | Slot Drill |
| Number of Flutes | 3 |
| Shank Diameter | 6mm |
| ISO Designation | S |
| Coolant Delivery | External |
| Length of Cut | Short |
| Standards Met | DIN 6527 L |
| Cutter Style | Square End |
| Material | HM |
| Finish/Coating | AlCrN |
| Product Series | S813HB |
| System of Measurement | Metric |
| End Mill Type | Slot Drill |
| Cutting Direction | Right Hand |
| Shank Diameter Tolerance | H6 |
| Product Type | Slot Drills |
| Flute Length | 10mm |
| Helix Angle | 28\u00b0 |
