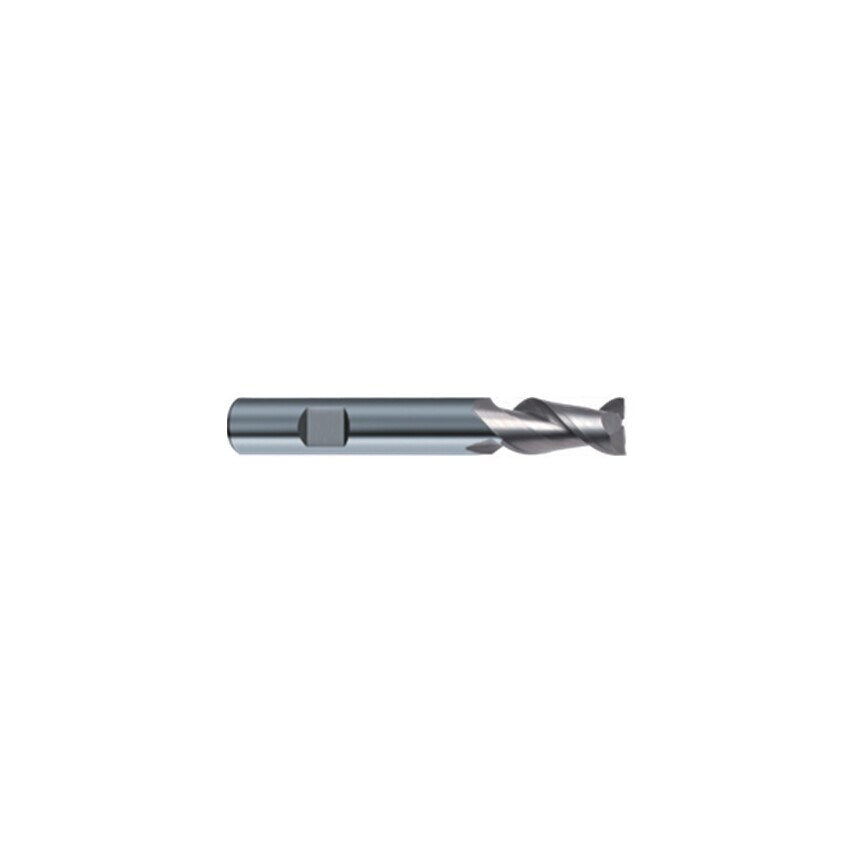

Series 5543 Carbide 2 Flute Standard Length Slot Drill
Conforms to:- DIN 6527L
Tool material:- VHM
Carbide grade:- K
Type:- W
Cutting direction:- Right Hand
Cooling:- Without coolant
Tolerance:- E8
Shank design:- DIN 6535-HB
Helix angle:- 45 degrees
Flutes:- 2
| Cutter Diameter | 4mm |
| Coolant Delivery | External |
| Finish/Coating | Bright |
| Standards Met | DIN 6527L |
| Helix Angle | 45\u00b0 |
| Length Type | Regular |
| Diameter | 4.0mm |
| Shank Diameter | 6mm |
| Series | 5543 |
| Overall Length | 57mm |
| Shank Type | Weldon Flat |
| Cutting Direction | Right Hand |
| Flute Type | Helical |
| MFR Part No. | 05543 004.000 |
| Flute Length | 8mm |
| Material | Carbide |
| Product Type | Slot Drills |
| Shank Diameter Tolerance | H6 |
| End Mill Type | Slot Drill |
| Number of Flutes | 2 |
| Cutter Diameter Tolerance | e8 |
