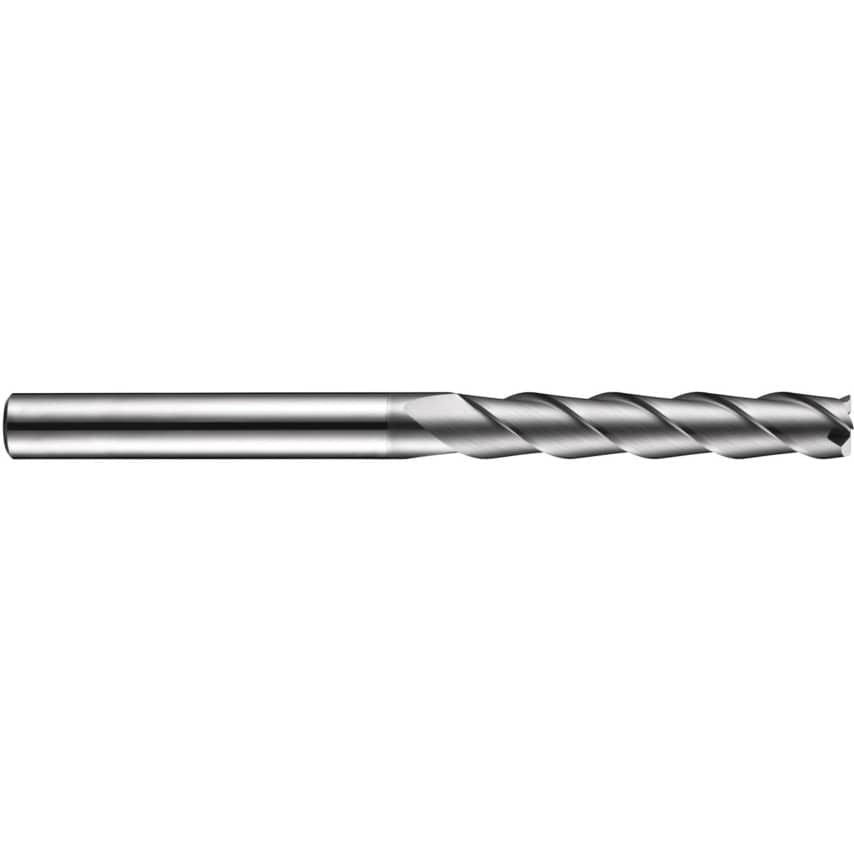

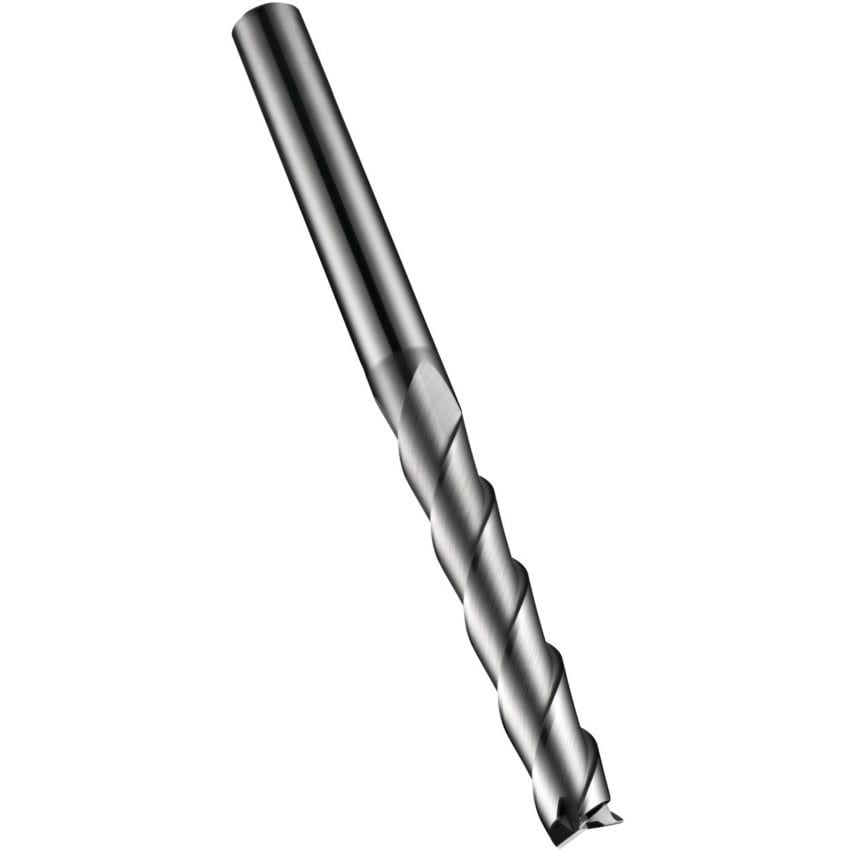

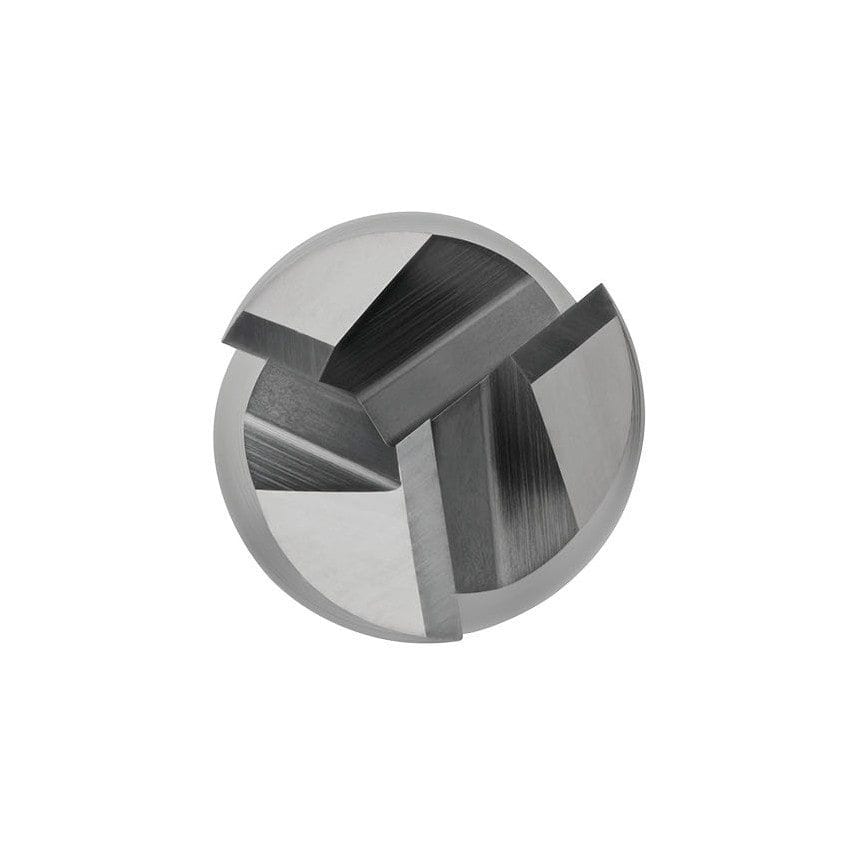

Extra long series end mill with 3 flutes
| Length Type | Extra Long |
| Coolant Delivery | External |
| Cutter Diameter | 10mm |
| Finish/Coating | AlCrN |
| Shank Diameter Tolerance | H6 |
| Product Series | S715 |
| Standards Met | Dormer |
| Flute Length | 57mm |
| Length of Cut | Extra long |
| System of Measurement | Metric |
| Overall Length | 125mm |
| Corner Radius | 3mm |
| Milling Cutter Type | Slot Drill |
| Number of Flutes | 3 |
| Shank Diameter | 10mm |
| Shank | Cylindrical shank DIN 6535 HA |
| Helix Angle | 40\u00b0 |
| Shank Type | Plain Round |
| End Mill Type | Slot Drill |
| Cutter Style | Square |
| MFR Part No. | S71510.0 |
| Material | HM |
| Unit of Measurement | Metric |
| ISO Designation | S |
| Series | S715 |
| Cutter Diameter Tolerance | H9 |
| Cutting Direction | Right Hand |
| Finish | AlCrN |
| Flute Type | Helical |
