Dormers multi-application MC-X solid carbide cutters are manufactured from micrograin carbide that has high hardness and toughness to provide excellent wear-resistance and long tool life. The flute geometry of the 2, 3 and 4 flute cutters are capable of contouring (semi-finishing and finishing), ramping and slotting operations. All the cutters are centre cutting and have a robust chamfer design on the end teeth to reduce chipping, particularly important on materials with low machinability. As the MC-X cutters are multi-application one tool can be used in many different materials, which helps to further reduce costs and inventory. Flutes designed for good swarf evacuation and a continuous, trouble-free machining operation. High wear-resistance and long tool life. Shank conforms to: DIN 6535 HA. Bright finish. Size range from 2.00 - 20.00mm.

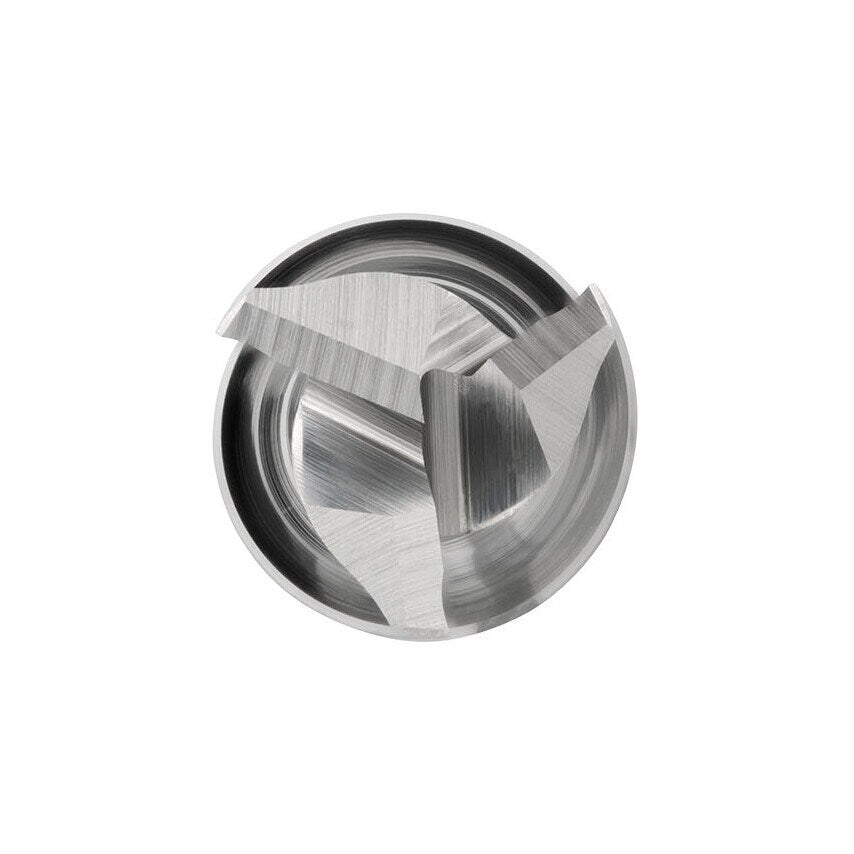

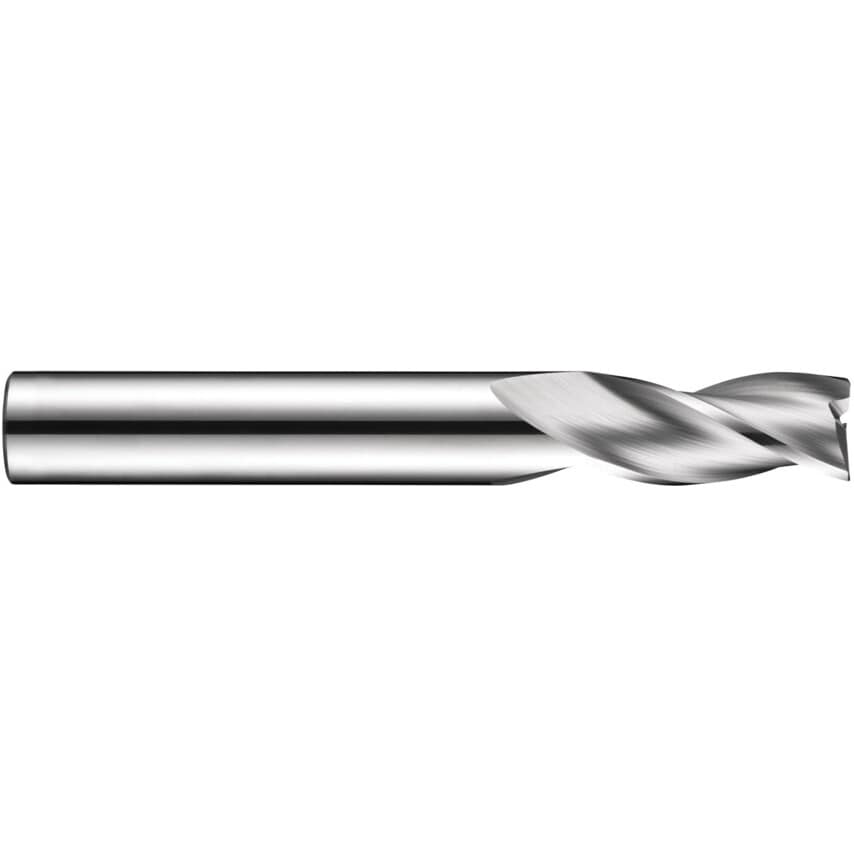

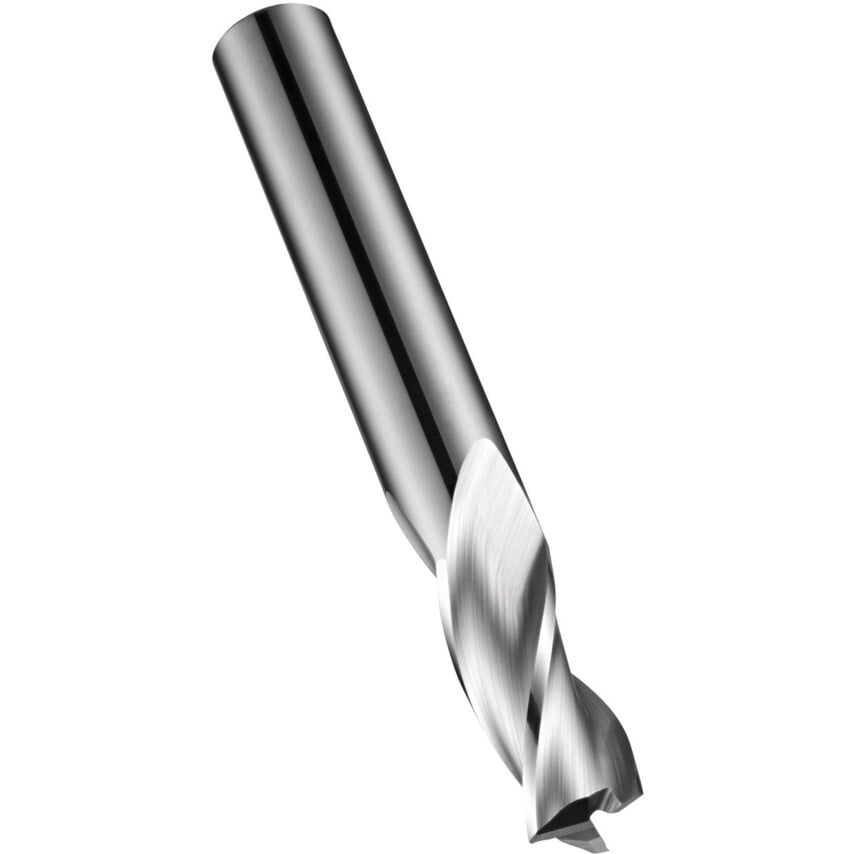

S903 Series MC-X Carbide 3 Flute Slot Drill - Standard Length
General purpose 3 flute carbide slot drills for milling keyways and slots. Cylindrical land and profile relief for P9 tolerance and reduced tool vibration. Helix angle: 30 right hand helix for smooth cutting action.
| MFR Part No. | S90312.0 |
| Flute Type | Helical |
| Number of Flutes | 3 |
| Overall Length | 73mm |
| Finish/Coating | Bright |
| Cutter Diameter | 12mm |
| Coolant Delivery | External |
| Milling Cutter Type | Slot Drill |
| Shank Diameter | 12mm |
| Cutter Style | Square End |
| Helix Angle | 30\u00b0 |
| Shank Type | Plain Round |
| Length Type | Regular |
| Series | S903 |
| Material | Carbide |
| Standards Met | Dormer |
| Flute Length | 25mm |
| End Mill Type | Slot Drill |
| Cutting Direction | Right Hand |
| Cutter Diameter Tolerance | H10 |
| Shank Diameter Tolerance | H6 |
| System of Measurement | Metric |
