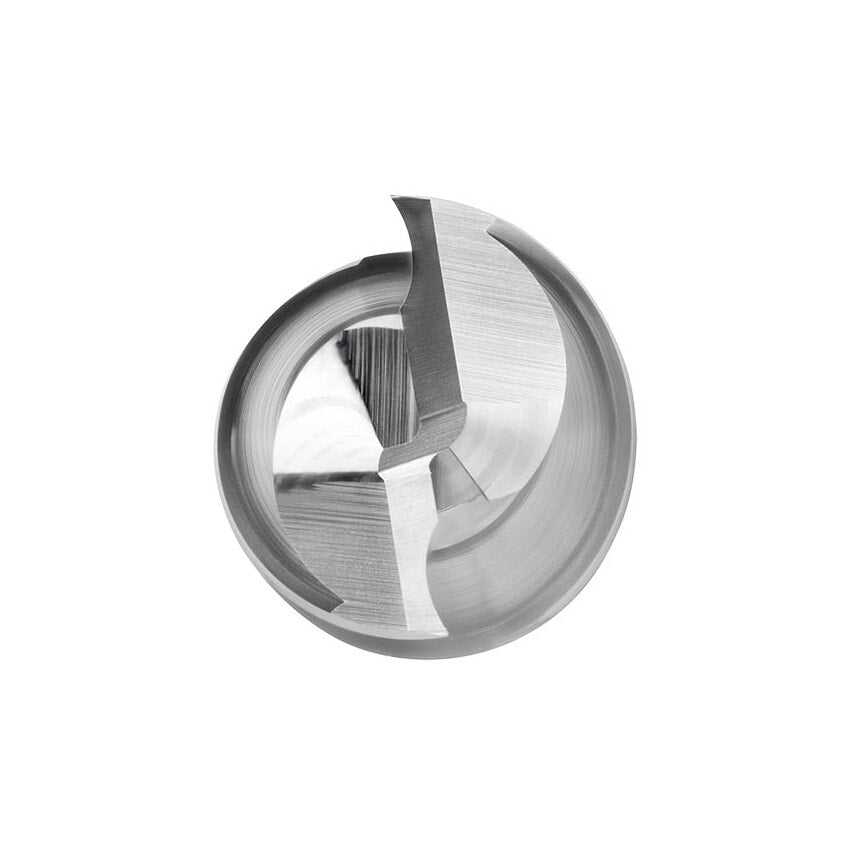

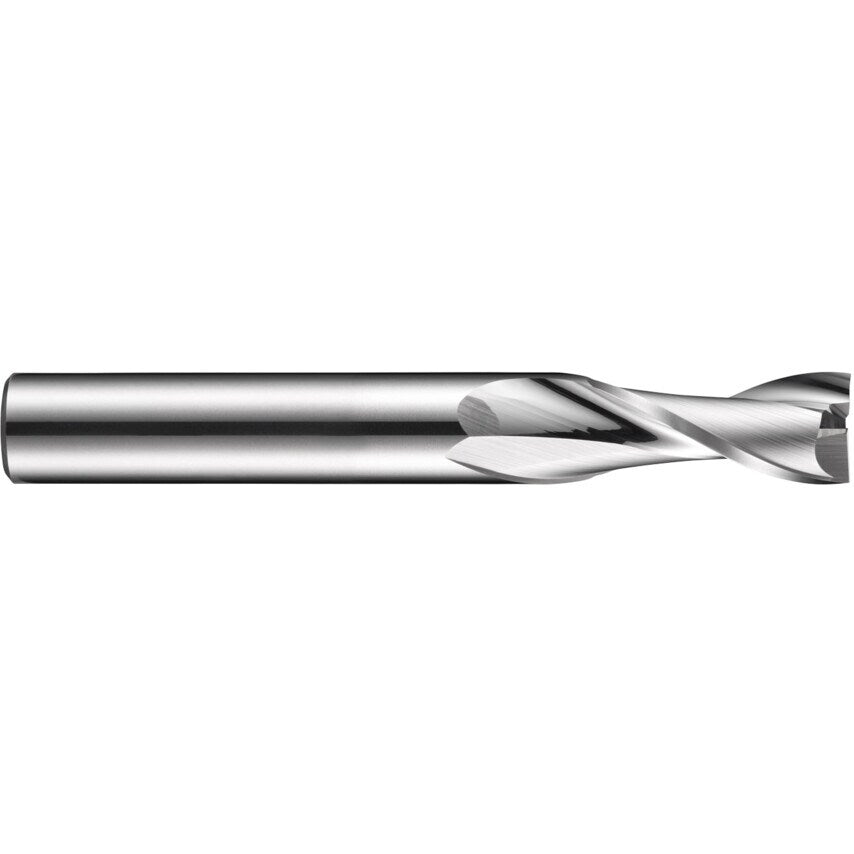

Introducing the Dromer Short Series End Mill, crafted to DORMER standards, featuring a solid carbide construction with a 3mm plain shank. This high-performance tool boasts a 2-flute design and a precise 0.1mm corner radius for exceptional milling accuracy. The end mill is specially engineered for non-ferrous metals, equipped with a 30 helix and 20 rake angle, making it ideal for shoulder milling, slot milling, ramping, and helical milling applications. Its ground polished finish ensures efficient chip evacuation and prevents work material from adhering to the cutting edges, guaranteeing a smooth and productive machining experience.
Features and Benefits
Micrograin Carbide providing extreme hardness and wear resistance providing increased tool life when machining difficult materials
Typical Applications
N - Non-ferrous metals (metals including alloys without an appreciable amount of iron)
| Overall Length | 50mm |
| Finish | Polished |
| Finish/Coating | Micrograin Carbide |
| Cutter Diameter | 4mm |
| Cutting Direction | Neutral |
| Material | Carbide |
| Standards Met | Dormer |
| Cutter Diameter Tolerance | 4 |
| Corner Radius | 0.1mm |
| ISO Designation | S6114.0XD6 |
| Helix Angle | 30 |
| Series | Short |
| Milling Cutter Type | End Mills |
| Product Type | End Mills |
| Flute Length | 12 |
| Length Type | Short |
| MFR Part No. | S6114.0XD6 |
| Material Grade | HM |
| Shank Diameter | 3mm |
| Flute Type | Helical |
| End Mill Type | End Mill |
| Number of Flutes | 2 |
| Length of Cut | Short |
| Product Series | S611 |
| Shank Type | Plain Round |
