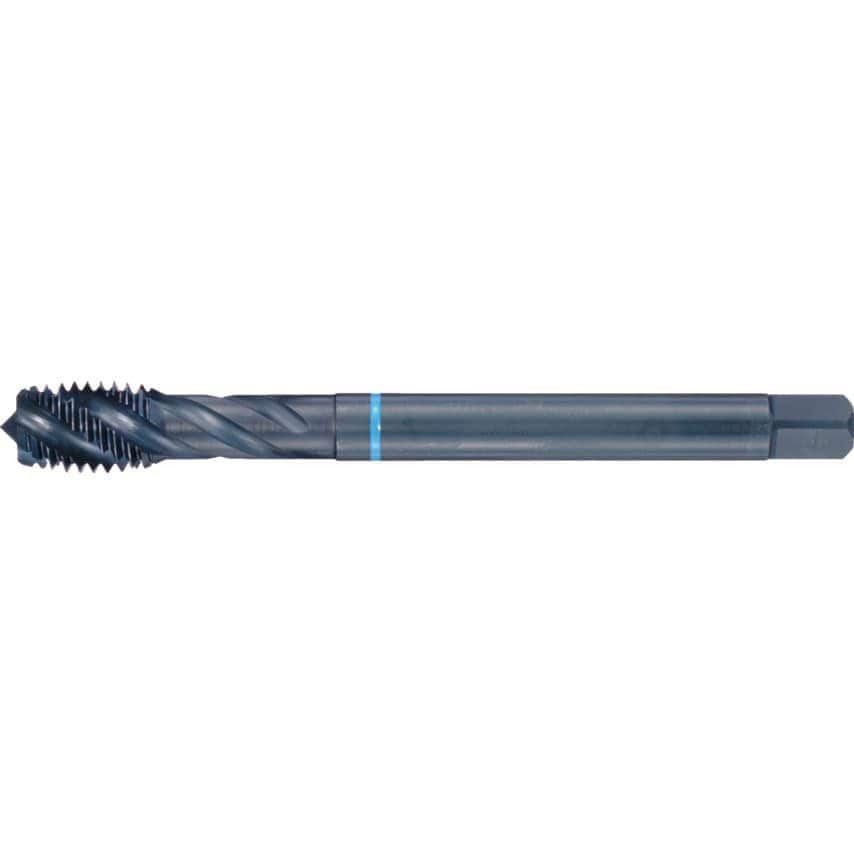

E238 M10 HSS-E Metric Coarse Spiral Flute Tap - Blue Shark DIN 371

Dormer  |  SKU: ZT1162034X
Cash
£58.29
Standard price
Pro
£56.54
With tools.com Pro
Finance
£1.20
/week
Approx. See your options
Save on every purchase
Theft replacement plan
Size range: M3 - M30. Tapping tolerance: 6H.
Finish/Coating Steam Tempered
Thread Form M - Metric coarse
Shank Cylindrical Shank with Square
Flute Geometry (FDC) Spiral Flute Geometry
Tapping Depth 39mm
MFR Part No. E238M10
Cutting Direction Right
Tap Application Blind Hole
Product Series E238
Applications M - Stainless steel
Pitch 1.5mm
Square Width 9mm
Overall Length 100mm
Number of Flutes 3
Class of Fit 6H
Thread Length 15mm
Tap Type Spiral Flute
Material HSS-E-PM
Standards DIN 371
Thread Size M10
Unit of Measurement Metric
Application Stainless Steels
Lead C 2-3
Material Grade M35
Thread Direction Right Hnd
Dimensions Standard DIN 371
Tap Chamfer Style C 2 - 3
Thread Standard Metric Coarse
Series E238
Finish Steam Tempered
Product Type Spiral Flute Taps
Shank Diameter 10mm
