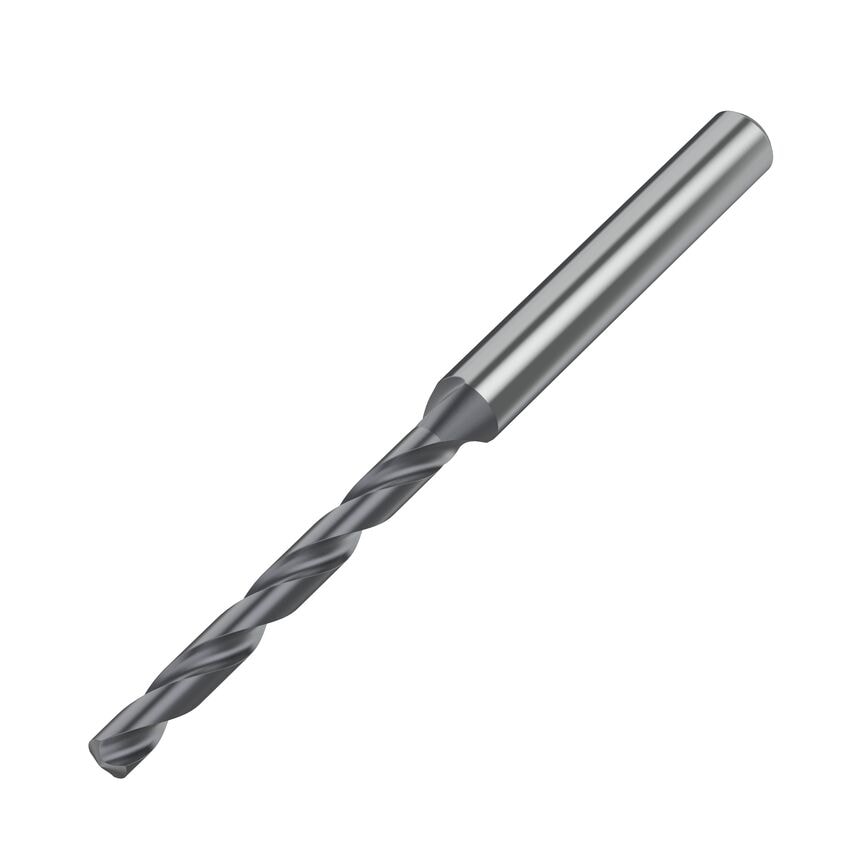

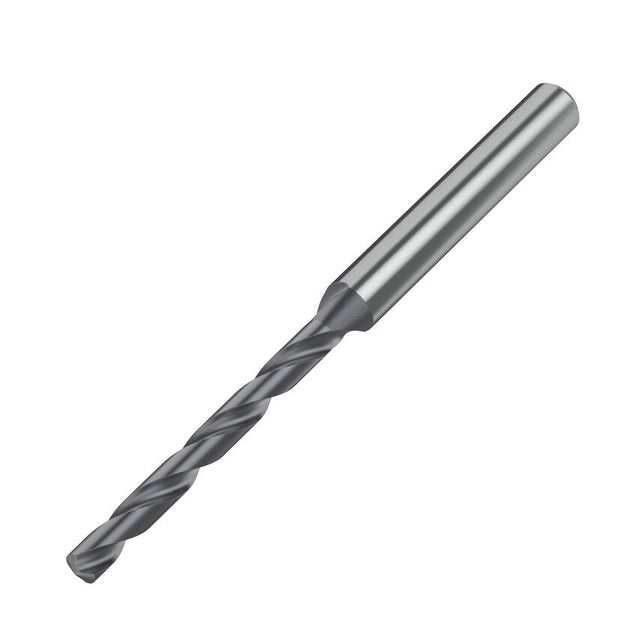

Kenna Universal Drills with Through CoolantSolid Carbide Drills
| MFR Part No. | 1913646 |
| Adapter Style | Straight-Cylindrical |
| Primary Material | Steel |
| Clamping Length | 48mm |
| Flute Construction | Helical Flute |
| Functional Length | 181.2540mm |
| Adapter / Shank / Bore Diameter | 18.0000mm |
| Helix Angle | 28.801 |
| Hand Preference | Right |
| Drill Point | 3.746mm |
| Assembly Length | 133.254mm |
| Adapter Type | Cylindrical |
| Helix Type | Right Hand Helix/Flute |
| Number of Flutes | 2 |
| Material | Carbide |
| Coolant Supplied | Yes |
| Finish/Coating | TiAlN |
| Unit Measured | Metric |
| Shank Length | 48.0000mm |
| Drill Diameter Tolerance | 0.007000 to 0.025000mm |
| Drill Diameter | 17.5000mm |
| Gage Length | 137mm |
| Coolant Delivery | Off-center Axial Coolant |
| Overall Length | 185mm | 185.0000mm |
| Flute Length | 135mm | 135.0000mm |
| Drill Depth | 113mm | 113.0000mm |
