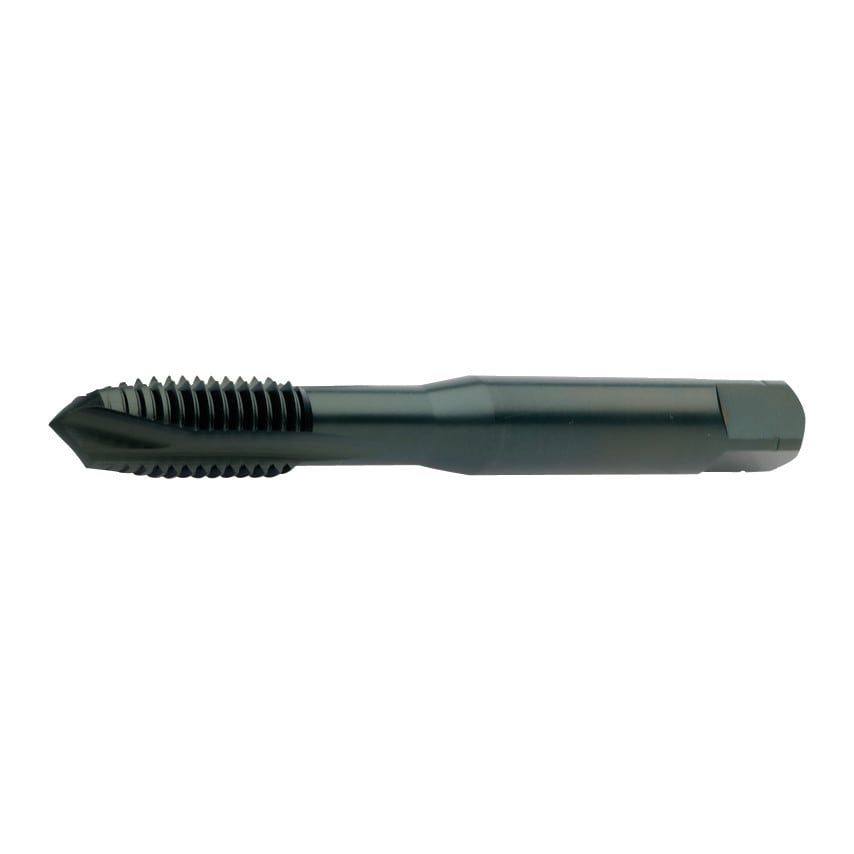

EO31 Steam Tempered UNF:
No.8 - 10, 1/4 - 1 inch
| Square Width | 6.3mm |
| Finish | Steam Tempered |
| Tap Application | Through Hole |
| Teeth per Inch | 20 |
| Class of Fit | 2B |
| Material | HSS-E-PM |
| Tap Chamfer Style | B 3.5 - 5 |
| Tap Type | Spiral Point |
| Thread Size | 7/16in |
| Flute Geometry (FDC) | Spiral\u00a0Point Geometry |
| Overall Length | 85mm |
| Finish/Coating | Steam Tempered |
| Thread Direction | Right Hnd |
| Dimensions Standard | ISO 529 |
| Application | Steel and Cast Steel |
| Thread Length | 19mm |
| Unit of Measurement | Imperial |
| Product Series | E031 |
| ISO Category | K | M | P |
| Product Type | Taps |
| Thread Form | UNF - Unified Fine |
| Number of Flutes | 3 |
| MFR Part No. | E0317/16 |
| Material Grade | M35 |
| Series | E031 |
| Lead | Second |
| Shank | Cylindrical Shank with Square |
| Thread Standard | UNF |
| Cutting Direction | Right |
| Applications | P - Steel and cast steel |
| Shank Diameter | 8mm |
| Standards | ISO 529 |
