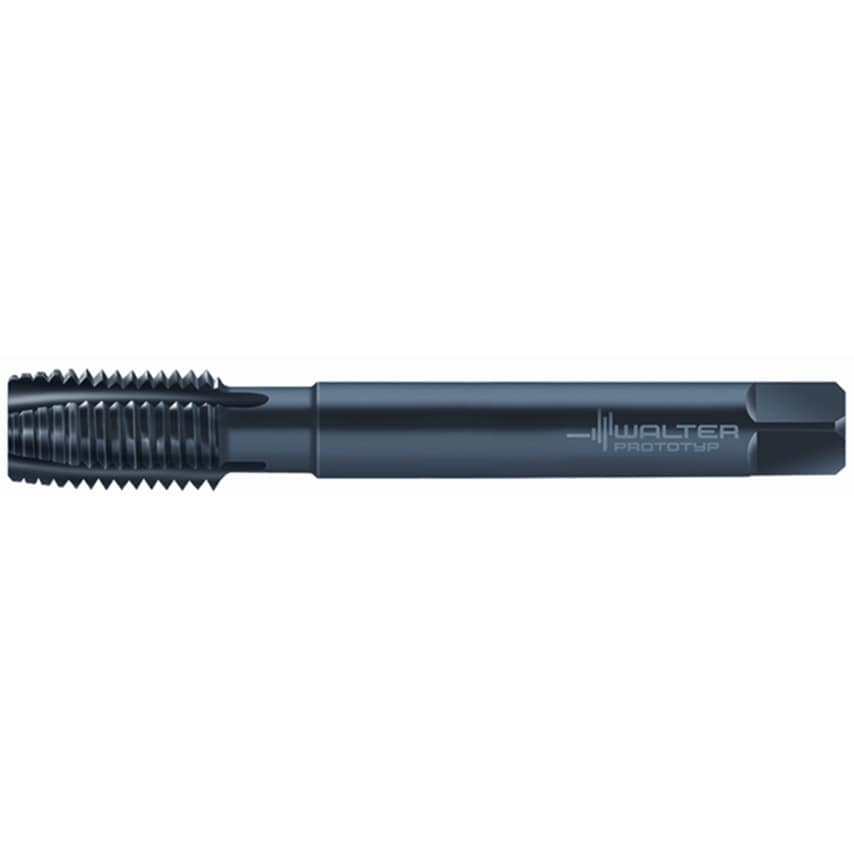

HSS-E machine taps Prototex Xpert M B = 3.5-5xTP (plug chamfer) 3xD MF/6HX DIN 374 Suitable for through hole VAP MF 20x1.5 P=0.0591in
| Tap Type | Machine Tap |
| Cutting Edge Length | 24mm |
| MFR Part No. | 6149836 |
| Material | HSSE |
| Thread Size | MF 20x1.5 |
| Tool Designation | M21263-M20X1.5 |
| Number of Grooves | 4 |
| Thread Pitch | 1.5mm |
| Shank Diameter | 16mm |
| Finish/Coating | VAP |
| Clamping Width | 12mm |
| Usable Length | 80mm |
| Driving Square Length | 15mm |
| Overall Length | 125mm |
