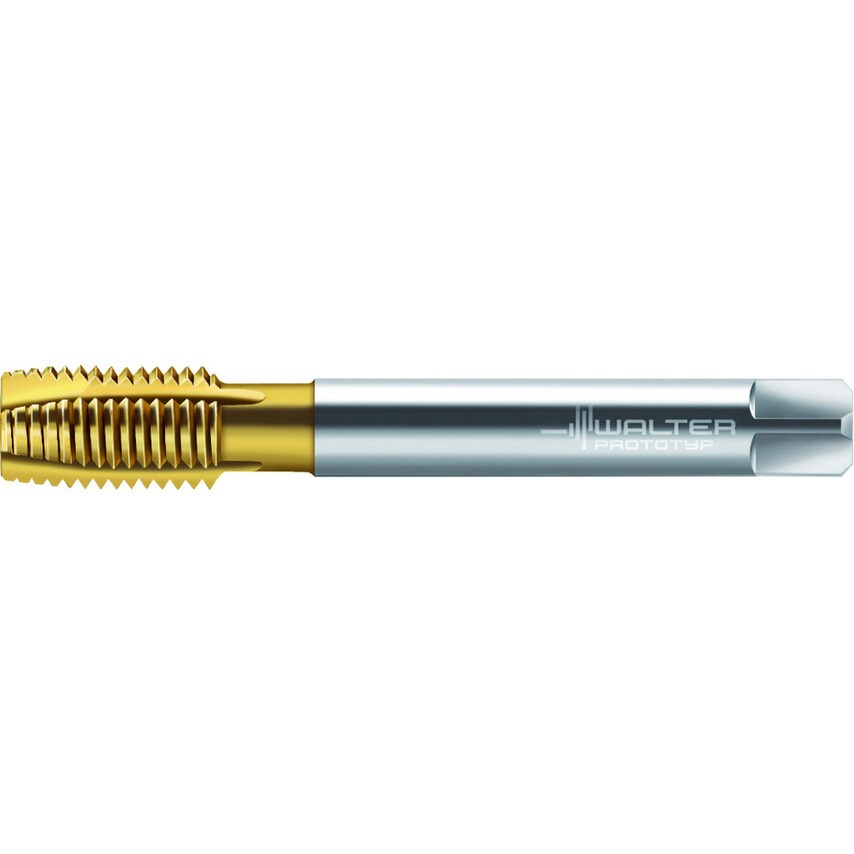

HSS-E machine taps Prototex Xpert M B = 3.5-5xTP (plug chamfer) 3xD MF/6HX DIN 374 Suitable for through hole TIN MF 8x1 P=0.0394in
| MFR Part No. | 6149841 |
| Product Type | Machine Taps |
| Thread Pitch | 1mm |
| Tool Designation | M2126305-M8X1 |
| Series | Prototex\u00ae X\u00b7pert M |
| ISO Category | M | P |
| Material | HSSE |
| Tap Type | Spiral Point |
| Pitch | 1mm |
| Clamping Width | 4.9mm |
| Cutting Edge Length | 18mm |
| ISO Designation | M2126305-M8X1 |
| Number of Grooves | 3 |
| Usable Length | 67mm |
| Thread Size | M8 |
| Dimensions Standard | DIN 374 |
| Finish/Coating | TiN |
| Shank Diameter | 6mm |
| Driving Square Length | 8mm |
| Overall Length | 90mm |
| Thread Standard | Metric |
